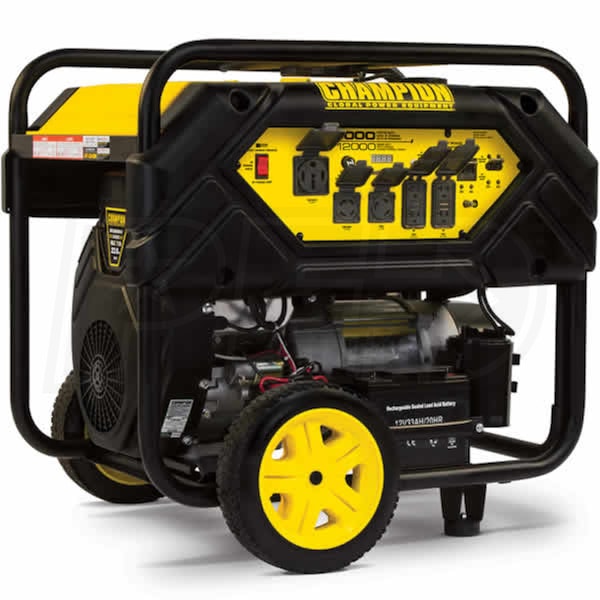

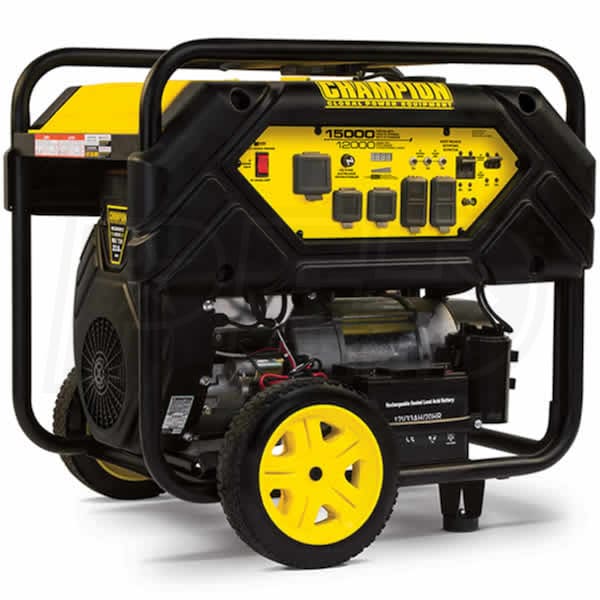

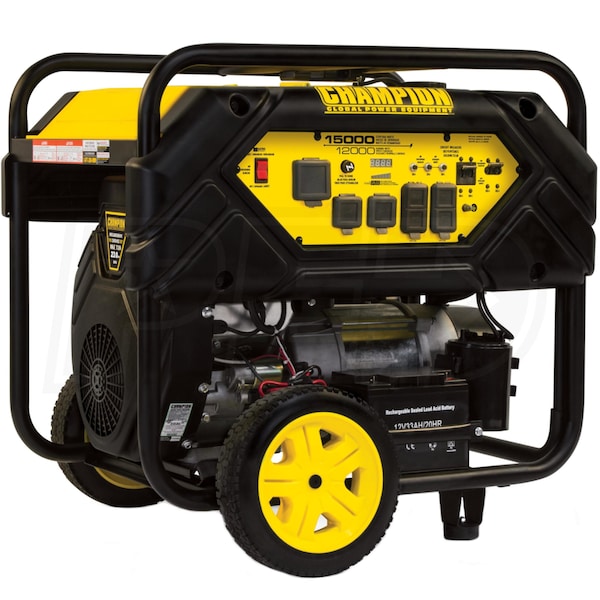

Champion 100111 - 12,000 Watt Electric Start Portable Generator (CARB)

Model:

100111

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Champion 100111 - 12,000 Watt Electric Start Portable Generator (CARB)
Champion 100111 - 12,000 Watt Electric Start Portable Generator (CARB)
Model: 100111
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Semi-Pro

Style

Portable

Run Watts

12,000 Rated Watts

Surge Watts

15,000
Starting Watts

Fuel

Gasoline

Engine

Champion



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • 3-Year Limited Warranty - CARB Compliant
  • Champion Contractor Grade Portable Generator
  • Easily handles your home backup needs and big jobs that a smaller portable can't
  • Push-Button Electric Start (Battery Included)
  • Takes the trouble out of starting, just push the button and you're ready to go
  • 717cc Champion Milwaukee Series™ OHV V-Twin Engine
  • Smoothing running, plenty of torque and fuel efficient
  • Low-Oil Protection
  • Automatically shuts the engine down when low oil occurs

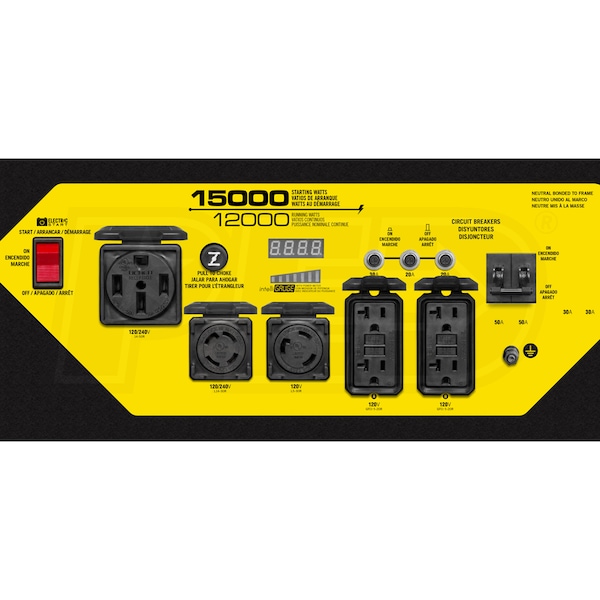

  • 120/240V 50-Amp (L14-50R) & 30-Amp (14-30R) Outlets***
  • Easily provide power to larger tools and manual transfer switches
  • Allows for connection to a convenience cord
  • Volt Guard & Power Meter
  • Protects form power surges that can damage you appliances
  • Lets you see how much power you're using
  • 10.9-Gallon Fuel Tank
  • Provides up to 9-hours of run time @ 50% load
  • Intelligauge Digital Display
  • Easily monitor your voltage, frequency & operating hours
  • 12" Never Flat Tires & Fold-Down Locking Handle
  • Makes this generator easy to move on even the most bumpy terrain

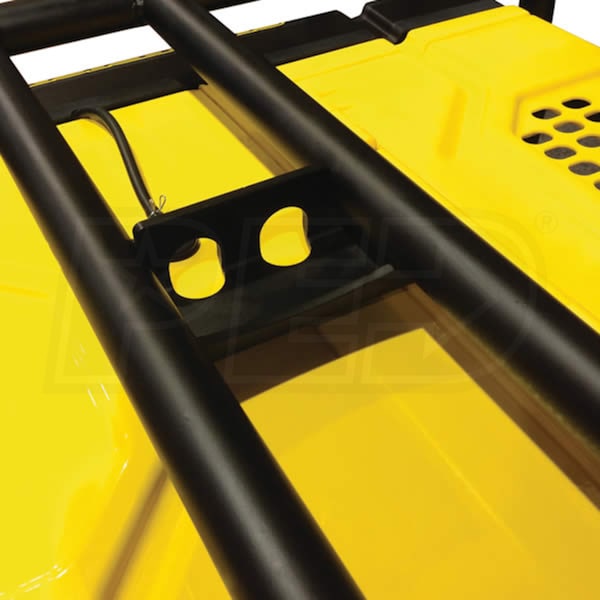

  • Integrated Lifting Hook
  • Great for loading and palcement on the jobsite
  • ***Note - Allows You To Get Maximum Power From Generator
California residents see
Warning: This product can expose you to chemicals including Benzene which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

Plug Types
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
NEMA L5-30R
NEMA L14-30R
NEMA 14-50R
100111
specs product image PID-67313
General Information
Product Category
Generator - Portable
Overview
Product Category
Generator - Portable
Assembly Required
Yes
Weight
329.6 Pounds
CARB Compliant
Yes
Certification
CARB
Made in USA
No
Consumer Warranty
3 Years
Product Style
Portable Generator
Product Length
33.9 Inches
Product Width
31.1 Inches
Product Height
33.1 Inches
UPC
896682000731
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
12000 Watts
Surge Watts
15000 Watts
Fuel Type
Gasoline
Rated Amps
50 Amps
Portability Kit
Never Flat Wheels
Tank Size
10.9 Gallons
Run Time @ 50% Load
9 Hours
Fuel Tank Material
Metal
Fuel Gauge
No
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
78
Idle Control
No
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
Yes
Battery
Included
Grade Type
Semi-Pro
Low THD
No
Engine
Engine Brand
Champion
Starting System
12-Volt Button Start
CC
717 CC
Consumer Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
NEMA 5-20R - GFCI
2
NEMA L5-30R
1
NEMA L14-30R
1
NEMA 14-50R
1
