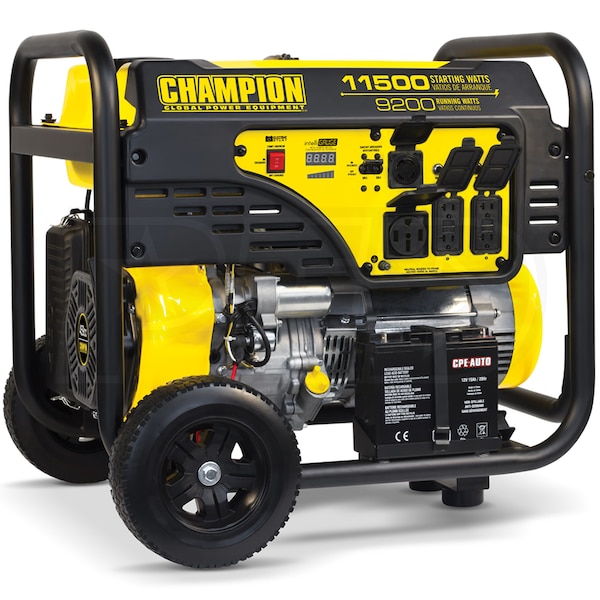

Champion 100110 - 9200 Watt Electric Start Portable Generator (CARB)
Model: 100110
+
Share This Product
-
Product Description
-
105Reviews
-
2Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
Run Watts
9,200
Rated Watts
Surge Watts
11,500
Starting Watts
Fuel
Engine
Grade
Emergency
Style
Portable
Run Watts
9,200
Surge Watts
11,500 Starting Watts
Fuel
Gasoline
Engine
Champion
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- 3-Year Limited Warranty - CARB Compliant
- Champion 9200 Watt Electric Start Generator
- Ideal for home backup and big jobs around the yard
- Push-Button Electric Start (Battery Included)
- Plus an easy-pull recoil starter, so you'll always be ready for an outage
- 459cc Champion OHV 4-Stroke Engine w/ Low-Oil Shutoff Sensor
- Provides added protection to extend the life of the generator
- Cast iron sleeve for long life and easy maintenance
- 120/240V 50-Amp (L14-50R) & 30-Amp (14-30R) Outlets***
- Allows for connection to a manual transfer switch (MTS)
- Allows for connection to a convenience cord
- (2) 120V GFCI Duplex Outlets & Circuit Breaker Protection
- Keeps your appliances protected while preventing overload to generator
- Large 7.7-Gallon Fuel Tank
- Provides up to 10-hours of run time @ 50% load
- Volt Guard & Power Meter
- Protects form power surges that can damage you appliances
- Lets you see how much power you're using
- Intelligauge Digital Display
- Easily monitor your voltage, frequency & operating hours
- Never Flat Tires & Fold-Down Locking Handle
- Makes this generator easy to move on even the most bumpy terrain
- Also includes Engine Oil
- ***Note - Allows You To Get Maximum Power From Generator
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
9200 Watts
Surge Watts
11500 Watts
Fuel Type
Gasoline
Rated Amps
38 Amps
Portability Kit
Never Flat Wheels
Tank Size
7.7 Gallons
Run Time @ 50% Load
10 Hours
Fuel Tank Material
Metal
Fuel Gauge
No
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
74
Idle Control
No
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
No
Battery
Included
Grade Type
Emergency
Engine
Engine Brand
Champion
Starting System
12-Volt Button Start w/ Recoil
CC
459 CC
Consumer Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Weight
213 Pounds
Certification
CARB
Made in USA
No
Consumer Warranty
3 Years
Product Style
Portable Generator
Product Length
27.7 Inches
Product Width
27.6 Inches
Product Height
26.6 Inches
UPC
896682000724
Plugs
NEMA 5-20R - GFCI
2
NEMA L14-30R
1
NEMA 14-50R
1
Grade
Style
Run Watts
9,200
Rated Watts
Surge Watts
11,500
Starting Watts
Fuel
Engine
Grade
Emergency
Style
Portable
Run Watts
9,200
Surge Watts
11,500 Starting Watts
Fuel
Gasoline
Engine
Champion
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- 3-Year Limited Warranty - CARB Compliant
- Champion 9200 Watt Electric Start Generator
- Ideal for home backup and big jobs around the yard
- Push-Button Electric Start (Battery Included)
- Plus an easy-pull recoil starter, so you'll always be ready for an outage
- 459cc Champion OHV 4-Stroke Engine w/ Low-Oil Shutoff Sensor
- Provides added protection to extend the life of the generator
- Cast iron sleeve for long life and easy maintenance
- 120/240V 50-Amp (L14-50R) & 30-Amp (14-30R) Outlets***
- Allows for connection to a manual transfer switch (MTS)
- Allows for connection to a convenience cord
- (2) 120V GFCI Duplex Outlets & Circuit Breaker Protection
- Keeps your appliances protected while preventing overload to generator
- Large 7.7-Gallon Fuel Tank
- Provides up to 10-hours of run time @ 50% load
- Volt Guard & Power Meter
- Protects form power surges that can damage you appliances
- Lets you see how much power you're using
- Intelligauge Digital Display
- Easily monitor your voltage, frequency & operating hours
- Never Flat Tires & Fold-Down Locking Handle
- Makes this generator easy to move on even the most bumpy terrain
- Also includes Engine Oil
- ***Note - Allows You To Get Maximum Power From Generator
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
9200 Watts
Surge Watts
11500 Watts
Fuel Type
Gasoline
Rated Amps
38 Amps
Portability Kit
Never Flat Wheels
Tank Size
7.7 Gallons
Run Time @ 50% Load
10 Hours
Fuel Tank Material
Metal
Fuel Gauge
No
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
74
Idle Control
No
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
No
Battery
Included
Grade Type
Emergency
Engine
Engine Brand
Champion
Starting System
12-Volt Button Start w/ Recoil
CC
459 CC
Consumer Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Weight
213 Pounds
Certification
CARB
Made in USA
No
Consumer Warranty
3 Years
Product Style
Portable Generator
Product Length
27.7 Inches
Product Width
27.6 Inches
Product Height
26.6 Inches
UPC
896682000724
Plugs
NEMA 5-20R - GFCI
2
NEMA L14-30R
1
NEMA 14-50R
1
Product Specs
+−
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
9200 Watts
Surge Watts
11500 Watts
Fuel Type
Gasoline
Rated Amps
38 Amps
Portability Kit
Never Flat Wheels
Tank Size
7.7 Gallons
Run Time @ 50% Load
10 Hours
Fuel Tank Material
Metal
Fuel Gauge
No
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
74
Idle Control
No
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
No
Battery
Included
Grade Type
Emergency
Engine
Engine Brand
Champion
Starting System
12-Volt Button Start w/ Recoil
CC
459 CC
Consumer Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Weight
213 Pounds
Certification
CARB
Made in USA
No
Consumer Warranty
3 Years
Product Style
Portable Generator
Product Length
27.7 Inches
Product Width
27.6 Inches
Product Height
26.6 Inches
UPC
896682000724
Plugs
NEMA 5-20R - GFCI
2
NEMA L14-30R
1
NEMA 14-50R
1
Product Q&A
(2)
+−
Search Product Q&A's
Answered by Jared, the Generator Expert
+−
What is the run time on this generator?
Jeff B.
from California
November 30, 2019
Answer
This unit has a 7.7-gallon fuel tank, which provides up to 10 hours of run time @ 50% load. The more load you put on the unit, the less run time.
Was this answer helpful?
Yes
1
No
0
+−
Does this unit have a low idle feature?
Tony
from Massachusetts
May 21, 2018
Answer
This unit does not have idle control and will run at 3600 rpm whether there is a load on the generator or not. The unit is rated at 74dBA from 23 feet. If you have any other questions about this or other products from our website, please contact us.
Was this answer helpful?
Yes
2
No
0
