Campbell Hausfeld 2-HP 20-Gallon (Belt Drive) Dual-Voltage Cast-Iron Air Compressor (120/240V 1-Phase)

Model:

VT6183

Write A Review
$979.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships from Campbell Hausfeld
Shipping to60601

Free Shipping$979.00Buy Now
Free Freight$979.00Visit Site
Campbell Hausfeld 2-HP 20-Gallon (Belt Drive) Dual-Voltage Cast-Iron Air Compressor (120/240V 1-Phase)
Campbell Hausfeld 2-HP 20-Gallon (Belt Drive) Dual-Voltage Cast-Iron Air Compressor (120/240V 1-Phase)
Model: VT6183
$979.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Joshua, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Commercial

Style

Portable - Horizontal

CFM

5.5

Tank Size

20

  • Powerful Single-Stage Air Power
  • Oil-lubricated for extended performance & longevity
  • Powers a variety of air tools for the serious do-it-yourselfer, professional, or contractor
  • Dual Voltage
  • Operates on either 120V or 240V current
  • Let’s you work in a wider variety of locations

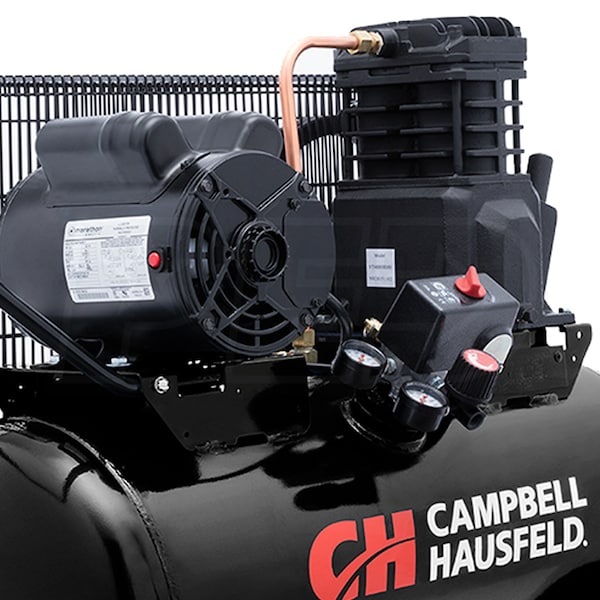

  • Cast Iron Twin-Cylinder Pump
  • Delivers 5.5 CFM @ 90 PSI; Max 135 PSI
  • Designed for paint spraying, inflation, stapling and nailing
  • Belt Drive w/ Fully Enclosed Metal Belt Guard
  • Dependable operation and low maintenance cost
  • Sturdy metal belt guard protects the belt & the user
  • Quieter Operation
  • Produces a low sound of 82 dBA @ 3ft
  • Ideal for highly populated areas such as housing developments or busy work-sites
  • 20-Gallon Tank
  • Convenient oil drain on front of unit
  • ASME safety valve automatically releases air if tank pressure exceeds maximum
  • 10" Semi-Pneumatic Wheels
  • Makes this unit easy to move from one job to the next
  • On-Board Tank & Hose Pressure Gauge
  • Easily keep track of tank pressure at a glance
  • Includes pressure regulator and pressure switch for added protection
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

VT6183
specs product image PID-106053
Engine
HP
2
Motor
Voltage
120/240 Volt AC
Phase
1-Phase
dBA
82
Magnetic Starter
No
Amp Draw
15 (120V) / 7.5 (240V)
Recommended Breaker
Consult Certified Electrician
Pump
CFM
5.5
CFM Rated @
90 PSI
CFM @ 40 PSI
6.5
Pump Material
Solid Cast Iron
Max PSI
135 PSI
Oil Sight Glass
No
Pump Type
Single-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
20 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Weight
148 Pounds
Certification
UL, CSA
Consumer Warranty
1 Year
Commercial Warranty
90 Days
Product Length
37 Inches
Product Width
21 Inches
Product Height
30.5 Inches
Power Type
Electric
UPC
045564101381
