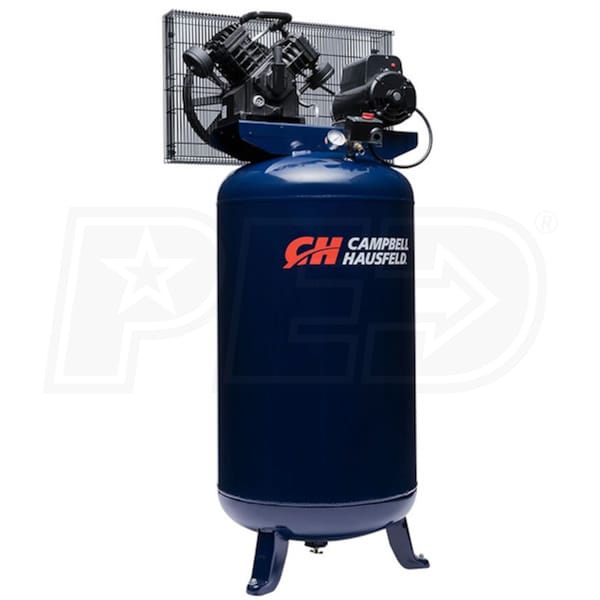

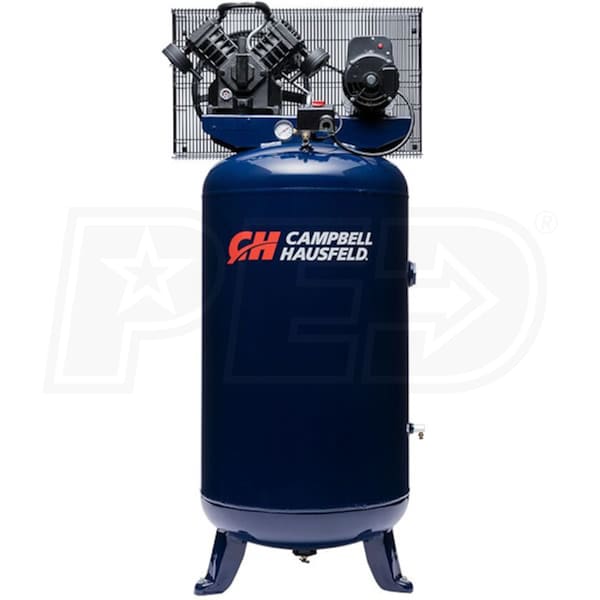

Campbell Hausfeld 5-HP 80-Gallon 4-Cylinder Dual-Voltage Single Stage Air Compressor
Model:
TQ3104
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Joshua, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Consumer
Style
Single Stage 1-Phase
CFM
16
Tank Size
80

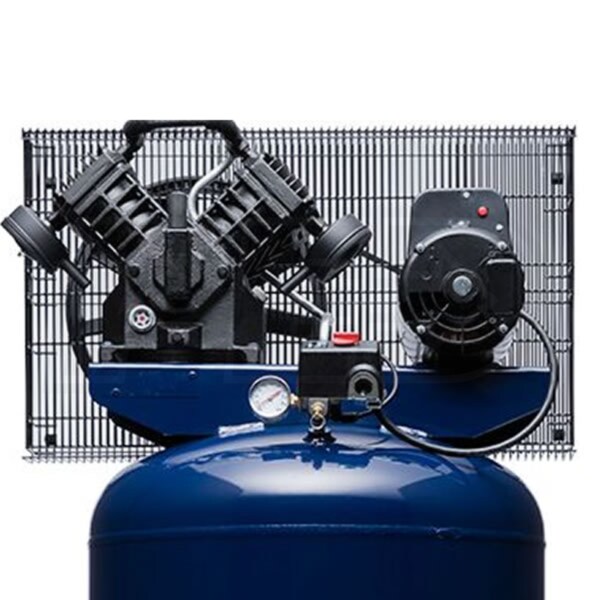

- Cast Iron 4 Cylinder Pump
- Over 10,000 hours extended life based on B-10 bearing rating
- 840 RPM Pump Speed
- Smooth running & quieter operation
- 5-HP 208-230 Volt Electric Motor With Overload Protection
- Operates on standard 208-230V single phase power
- No special motor starter is needed
- 140 PSI Maximum
- Operates a wider range of tools with longer run times
- Delivers 16 CFM at 90 PSI
- Easily runs high-demand air tools like sanders & grinders
- 80-Gallon ASME Code Tank
- Assures safe operation
- ***Unit Does Not Ship With Oil***
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
TQ3104
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
21
Recommended Breaker
Consult Certified Electrician
Engine
HP
5
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
16
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
140 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Filter
Regulator
No
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Stationary
Weight
410 Pounds
Certification
ASME
Consumer Warranty
1 Year
Product Length
31 Inches
Product Width
42 Inches
Product Height
80 Inches
Power Type
Electric
UPC
045564628321
Reviews
(68)
Campbell Hausfeld TQ3104 Reviews & Ratings
Product Q&A
(6)
Product Questions
Answered by Joshua, the Air Compressor Expert
What is the decimal rating on this compressor?
edward
from Louisiana
April 22, 2020
What is the tank diameter of this unit?
Chris
from Pennsylvania
June 29, 2019
What size breakers are recommended for the compressor?
Gordon N.
from Oregon
August 08, 2018
Is a two-stage better than a 4-cylinder, single-stage compressor?
Steve W.
from Illinois
May 17, 2018
What is the warranty?
PonyBoy Derrick
from Georgia
November 27, 2015
Are the 60 & 80 gal compressors in lowes, home depot and tractor supple worth buying. I heard they are like all other equip. they sell. I had experience with a john deere power washer, took it back and got a real deere for $25 more. Found out they are no name made and then put name on it. No problems in 3 yrs. For 650 t0 850 I'd rather spend a little more and get a quality mach.
Grover Tuggle
from Texas
January 31, 2013
