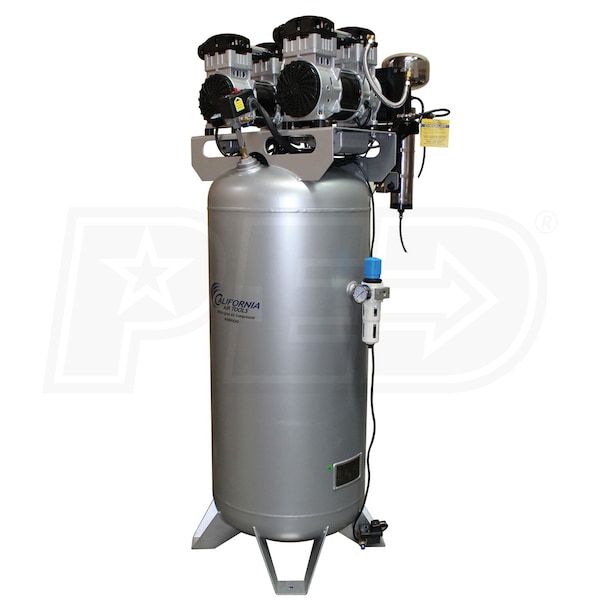

California Air Tools 60040DCAD Ultra Quiet & Oil-Free 4-HP 60-Gallon Steel Tank Air Compressor w/ Dryer & Auto Drain (220V 1-Phase)
Model:
CAT-60040DCAD
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Joshua, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Consumer
Style
Single Stage 1-Phase
CFM
10.6
Tank Size
60
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- Power, Air Flow and Less Service With At Least 30% Less Noise
- Designed to be one of the quietest 4-HP compressors in the industry
- Ultra-quiet at only 75 decibels
- Oil-Free Dual Piston Pump
- Use in a variety of temperatures (cold starts) and uneven terrains
- Oil-free offers less maintenance, cost, and clean air for tools
- Has a 3000+ hour life cycle before wear; comparable units are 1500 hours or less
- Efficient Air Dryer
- Removes the water vapor from the air to protect tools & machinery
- Keep water, oil, and dirt out of your compressed air; drier air prolongs the life of your machinery & tools
- 5 Micron Air Filter & Regulator
- Removes dirt, dust, and moisture for better tool operation
- Regulator maintains constant outlet pressure for tools; 3/8" Port
- Powerful 2-HP Dual 220-Volt Motor
- Operates at only 1680 RPM creating less noise and less wear
- Comes complete with 4 air filters
- Engineered for high performance & durability
- Thermal Overload Protector
- Protects the motor from overheating
- Low amp draw at only 14 amps
- 60 Gallon ASME Steel Air Tank
- Time to fill tank from empty to full - 7:00 Minutes
- Recovery time from 95 PSI to 125 PSI - 2:00 Minutes
- Stores more air for higher demand air tools
- Aftercooler
- Heat exchanger for cooling the discharge air from the air compressor
- Uses Activated Alumina Desiccant with a 4000-hour life
- Automatic Drain Valve
- Manual timer lets you to set the time for both the frequency & duration
- Routine draining prevents air contamination & prolongs tool life
- Condor Pressure Switch
- Regulates air pressure in the compressor
- Large easy-to-read double pressure control gauges
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
CAT-60040DCAD
General Information
Product Category
Air Compressor - Stationary
Engine
HP
4
Motor
Voltage
230 Volt AC
Phase
1-Phase
dBA
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
75
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
14
Recommended Breaker
Consult Certified Electrician
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
10.6
CFM Rated @
90 PSI
CFM @ 40 PSI
12.8
Pump Material
Aluminum
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
125 PSI
Pump Type
Single-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Direct Drive
Oil Type
Oil Free
Tank
Tank Size
60 Gallons
Tank Outlet
3/8 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
Yes
Tank Orientation
Vertical
Filter
Regulator
Yes
Accessories
Pressure Gauge
Yes
Air Dryer
Yes
Air Filter
Yes
Overview
Product Category
Air Compressor - Stationary
Weight
248 Pounds
Certification
ASME
Consumer Warranty
1 Year
Product Length
25.5 Inches
Product Width
29 Inches
Product Height
66.5 Inches
Power Type
Electric
UPC
743369760016
