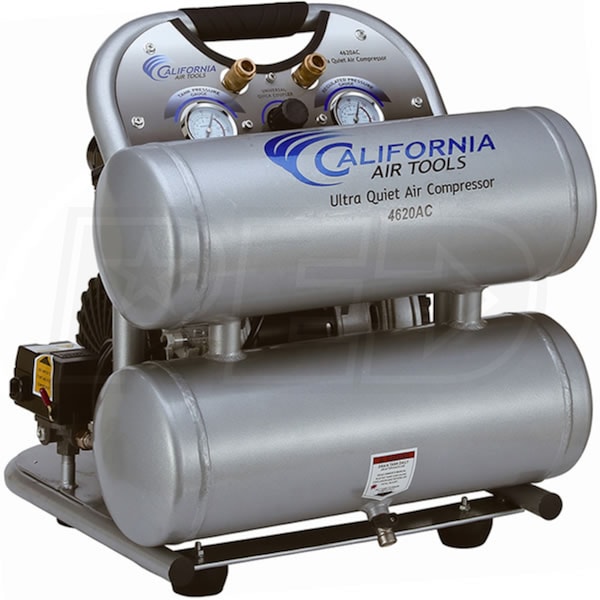

California Air Tools SP Ultra Quiet & Oil-Free 2-HP 4-Gallon Aluminum Twin Tank Air Compressor
Model:
CAT-4620AC
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Commercial
Style
Twin Stack
CFM
5.3
Tank Size
4.6
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- Ultra Quiet & Dependable Portable Air Compressor
- 70 dBA is ideal for indoor use where noise is an issue
- Designed to be one of the quietest air compressors in the industry
- Oil-Free Dual Piston Pump System
- Works in a variety of temperatures and uneven terrains
- 3000+ hour life cycle before wear; comparable units are 500 hours or less
- Powerful 2-HP SP Series 110V 1-Phase Motor
- Low 1680 RPM creates less noise and wear
- Air filters included for extra protection against dust and dirt
- Thermal Overload Protector & Easy Start Valve
- Protects motor from overheating; 14 amp draw
- Valve releases a small amount of air for no-load starts that use fewer amps
- Two 2.3 Gallon Aluminum Rust-Free Air Tanks (4.6 Gallon Total)
- Lightweight and easy to transport and store at only 65 pounds
- Manual tank drain for routine draining prevents air contamination
- Designed For Increased Duty Cycles & Run Times
- Time to fill tank from empty to full - 60 Seconds
- Recovery time from 95 PSI to 125 PSI - 20 Seconds
- Top Mounted Controls
- Dual gauges so you can check tank and tool pressure at a glance
- Two 1/4" air outlets with quick connectors for fast tool changes
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
CAT-4620AC
General Information
Product Category
Air Compressor - Portable
Engine
HP
2
Motor
Voltage
110 Volt AC
Phase
1-Phase
dBA
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
70
Amp Draw
14
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
5.3
CFM Rated @
90 PSI
Pump Material
Aluminum
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
125 PSI
Pump Type
Single-Stage
Pump Drive
Direct Drive
Oil Type
Oil Free
Tank
Tank Size
4.6 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Portable
Weight
65 Pounds
Certification
UL
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
19.1 Inches
Product Width
16.7 Inches
Product Height
19.7 Inches
Power Type
Electric
UPC
743369740209
