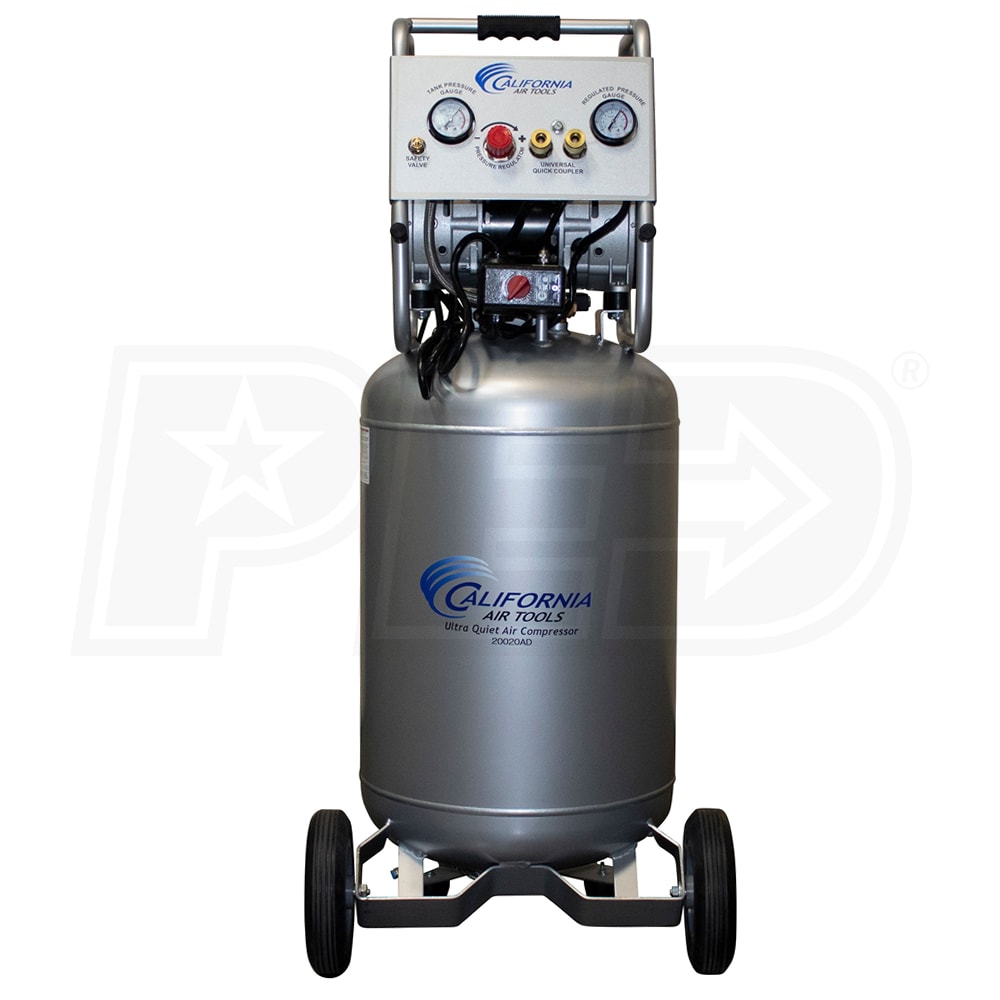

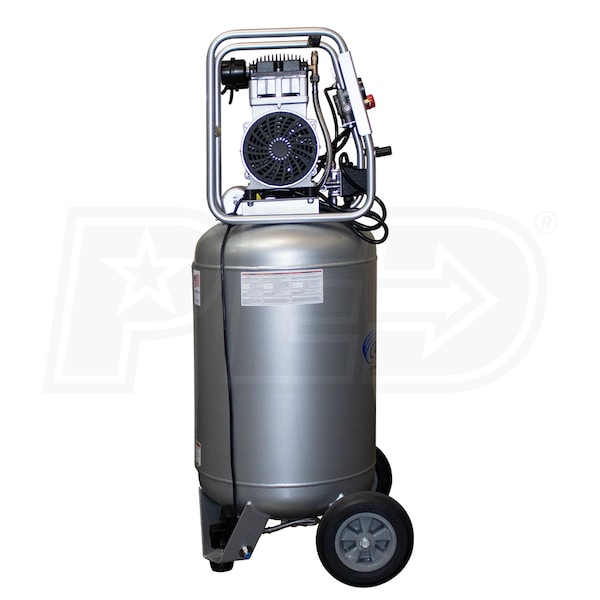

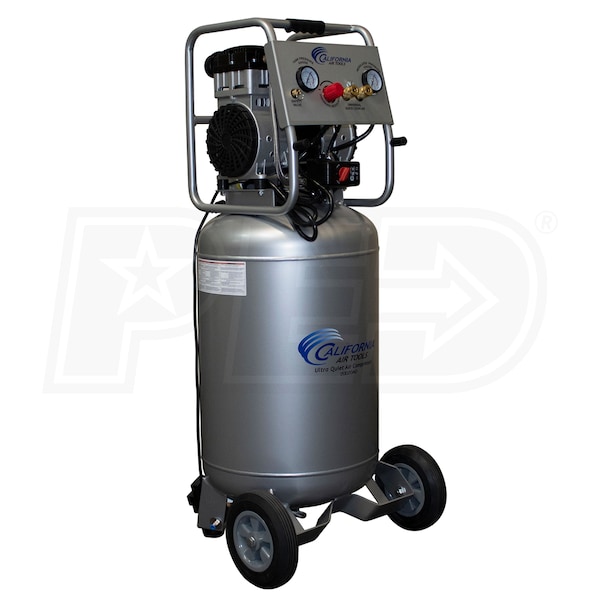

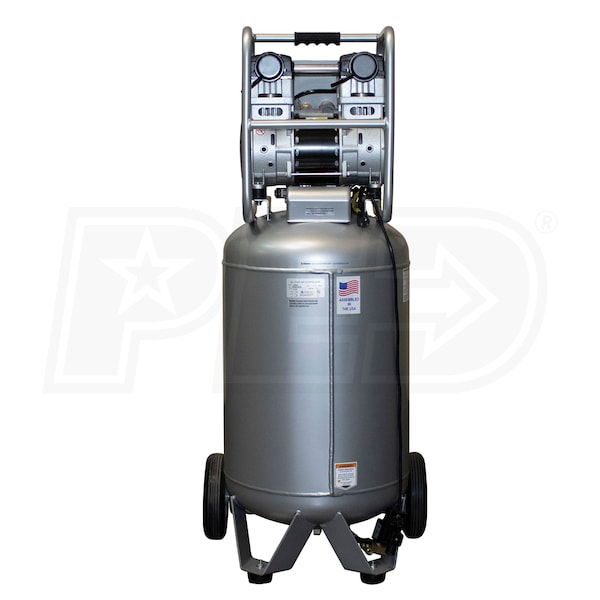

California Air Tools SP Series Ultra Quiet & Oil-Free 2-HP 20-Gallon Steel Tank Air Compressor w/ Auto Drain

Model:

CAT-20020AD

Write a Review
$675.00
Holiday Shipping Schedule
Holiday Schedule -
Free Shipping
  Learn More About Free Freight
Backordered
Estimated Availability January 28, 2022
Shipping to60601

Free Shipping$675.00Buy Now
Free Shipping$675.00Visit Site
California Air Tools SP Series Ultra Quiet & Oil-Free 2-HP 20-Gallon Steel Tank Air Compressor w/ Auto Drain
California Air Tools SP Series Ultra Quiet & Oil-Free 2-HP 20-Gallon Steel Tank Air Compressor w/ Auto Drain
Model: CAT-20020AD
$675.00
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Joshua, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Consumer

Style

Portable - Vertical

CFM

5.3

Tank Size

20



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Ultra-Quiet & Dependable Portable Air Compressor
  • Designed to be one of the quietest 2.0-HP in the industry
  • Perfect for continuous tools, staple guns, nail guns and airbrushes

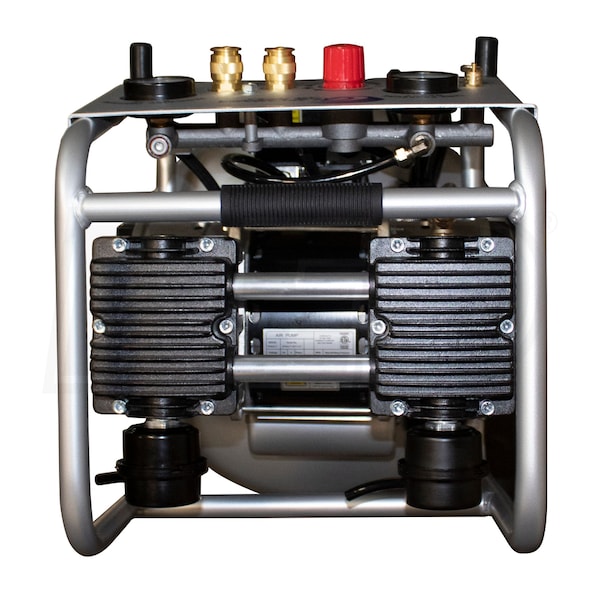

  • Oil-Free Dual Piston Pump System
  • Use in a variety of temperatures (cold starts) and uneven terrains
  • Air filters included for extra protection against dust and dirt
  • 3000+ hour life cycle before wear; comparable units are 500 hours or less
  • Powerful 2-HP SP Series 110V 1-Phase Motor
  • Operates at only 1680 RPM creating less noise and less wear
  • Increased duty cycle allows for longer continuous run times
  • Thermal Overload Protector & Easy Start Valve
  • Protects motor from overheating; 14 amp draw
  • No-load startup allows for easier starting by using less starting amps
  • 20-Gallon Steel Air Tank w/ Wheel Kit
  • Time to fill tank from empty to full - 4 Minutes
  • Recovery time from 95 PSI to 125 PSI - 1 Minute
  • Automatic Drain Valve
  • Eliminates manually draining your air compressor tank
  • Routine draining prevents air contamination and prolongs tool life
  • Top Mounted Controls
  • Two 1/4" air outlets with quick connectors for fast tool changes
  • Large dual pressure gauges let you check tank and tool pressure at a glance
  • Built-In Regulator & Pressure Switch
  • Maintains constant outlet pressure for tools
  • Efficient pressure control reduces wear and tear on the unit
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

CAT-20020AD
specs product image PID-113762
Engine
HP
2
Motor
Voltage
110 Volt AC
Phase
1-Phase
dBA
70
Magnetic Starter
No
Amp Draw
14
Pump
CFM
5.3
CFM Rated @
90 PSI
CFM @ 40 PSI
6.40
Pump Material
Aluminum
Max PSI
125 PSI
Pump Type
Single-Stage
After Cooler
No
Pump Drive
Direct Drive
Oil Type
Oil Free
Tank
Tank Size
20 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Vertical
Filter
Regulator
Yes
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Weight
115 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
20 Inches
Product Width
20 Inches
Product Height
45 Inches
Power Type
Electric
UPC
850004451489
