California Air Tools IP Light & Quiet 12-Volt 1-Gallon Steel Tank Air Compressor

Model:

CAT-12V1P10S

Write A Review
$299.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days

California Air Tools IP Light & Quiet 12-Volt 1-Gallon Steel Tank Air Compressor
California Air Tools IP Light & Quiet 12-Volt 1-Gallon Steel Tank Air Compressor
Model: CAT-12V1P10S
$299.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Consumer

Style

DC Compressors

CFM

.95

Tank Size

1

  • Ultra Quiet IP Portable Air Compressor
  • Designed to be one of the quietest compressors in the industry

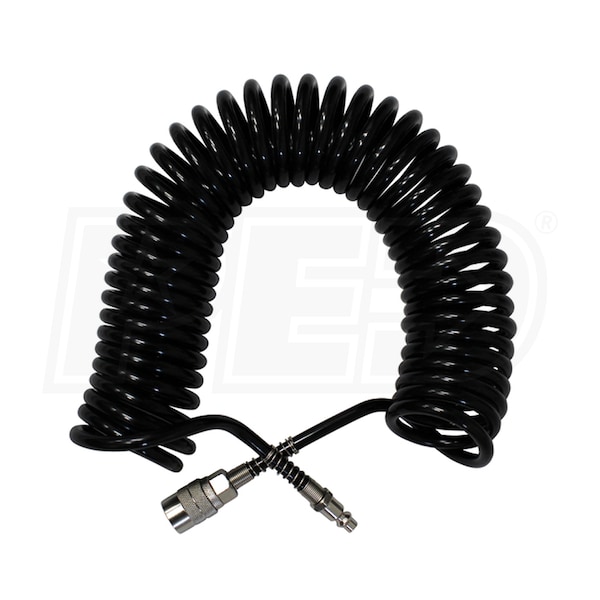

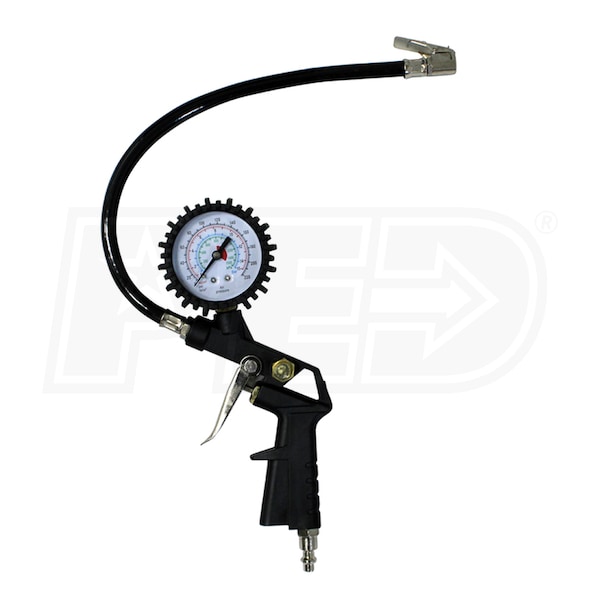

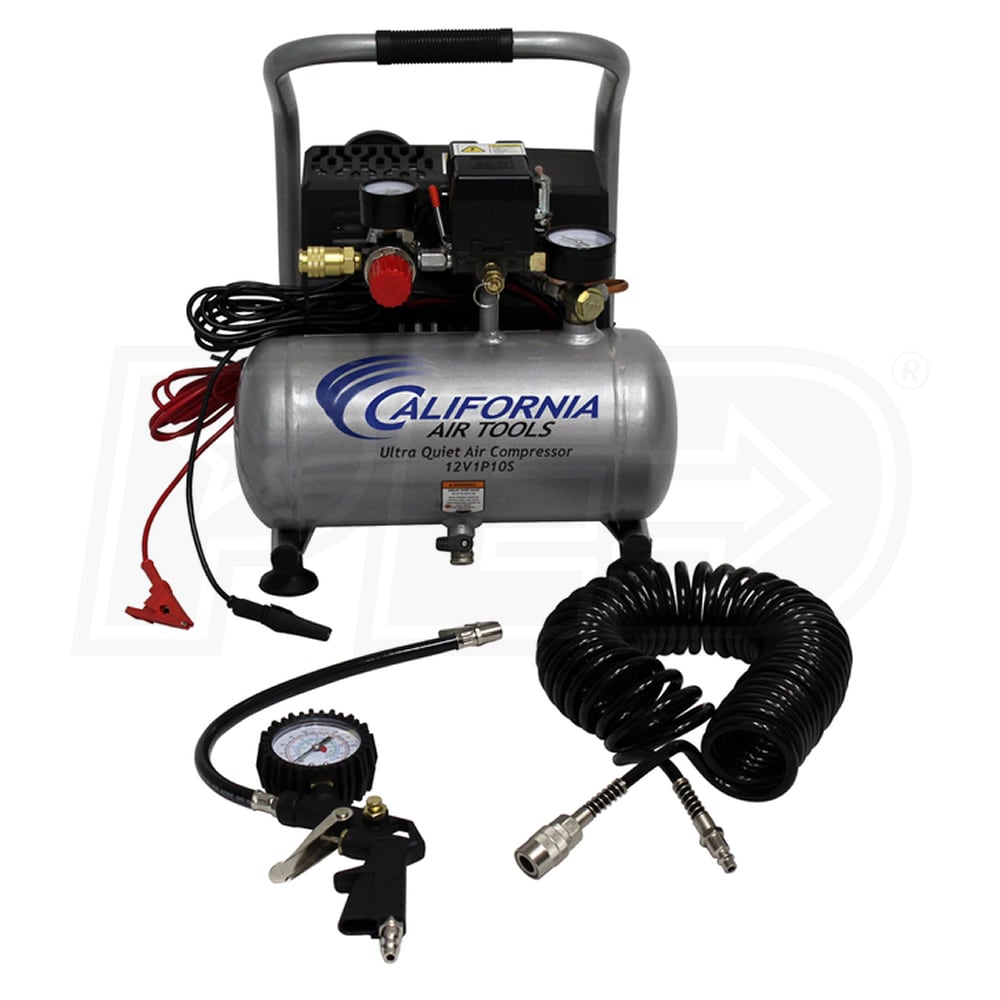

  • Includes air filter, battery clamps, cord, tire pressuregauge and air hose
  • Durable 12-Volt Battery Operated Motor
  • Runs at only 1680 RPM creating less noise and less wear
  • Use anywhere you can mount a battery & need on-board air
  • Oil-Free Pump
  • Use in a variety of temperatures (cold starts) and uneven terrains
  • Oil-free offers less maintenance, cost, and clean air for tools
  • Has a 3000+ hour life cycle before wear; comparable units are 250 hours or less
  • Compact & Versatile
  • Standard car tires take approximately 2 seconds for each 1 PSI added to the tire
  • Perfect for staple guns, brad nail guns, finish nail guns, nail guns, airbrushes & blow guns
  • 1.0 Gallon Steel Air Tank
  • Tank fill ratefrom empty to full - 60 Seconds
  • Recovery time from 90 PSI to 120 PSI - 20 Seconds
  • Light weight & easy to transport at only 30 pounds
  • Thermal Overload & External Current Protector
  • Protects the motor from overheating
  • Low amp draw at only 14 amps

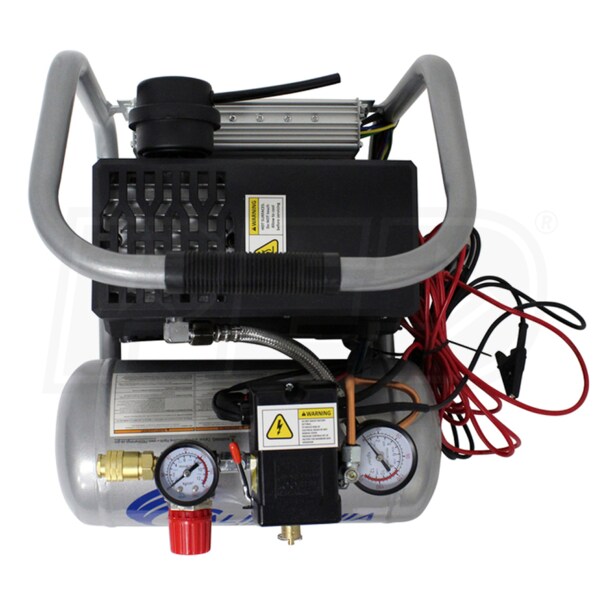

  • Convenient Top Mounted Controls
  • Two large easy-to-read pressure control gauges
  • One - 1/4″ industrial quick connector
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

CAT-12V1P10S
specs product image PID-107486
General Information
Product Category
Air Compressor - Portable
Motor
Voltage
12 Volt DC
dBA Learn More
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
56
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
38
Engine
HP
0.6
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
.95
CFM Rated @
90 PSI
CFM @ 40 PSI
1.45
Pump Material
Aluminum
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
120 PSI
Pump Type
Single-Stage
Pump Drive
Direct Drive
Oil Type
Oil Free
Tank
Tank Size
1 Gallon
Tank Outlet
1/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Portable
Weight
30 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
12.5 Inches
Product Width
14.7 Inches
Product Height
14.75 Inches
