Features
Grade
Consumer
Style
Portable - Vertical
CFM
5.3
Tank Size
10
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Powerful 2-HP SP-Series UL-Certified 110V Motor
Low 1680 RPM creates less noise & wear
70 dBA is ideal for indoor use where noise is an issue
dBA dBASound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
70
Magnetic Starter Magnetic StarterThe Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
14
Pump
CFM CFMCubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
5.3
CFM Rated @
90 PSI
CFM @ 40 PSI
6.4
Pump Material
Aluminum
Max PSI Max PSIPSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
125 PSI
Pump Type
Single-Stage
After Cooler After CoolerAn aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Direct Drive
Oil Type
Oil Free
Tank
Tank Size
10 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve Electronic Drain ValveThe inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Filter
Regulator
Yes
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Portable
Weight
82.5 Pounds
Certification
UL
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
16 Inches
Product Width
15.1 Inches
Product Height
35.9 Inches
Power Type
Electric
UPC
743369710035
Reviews
(20)

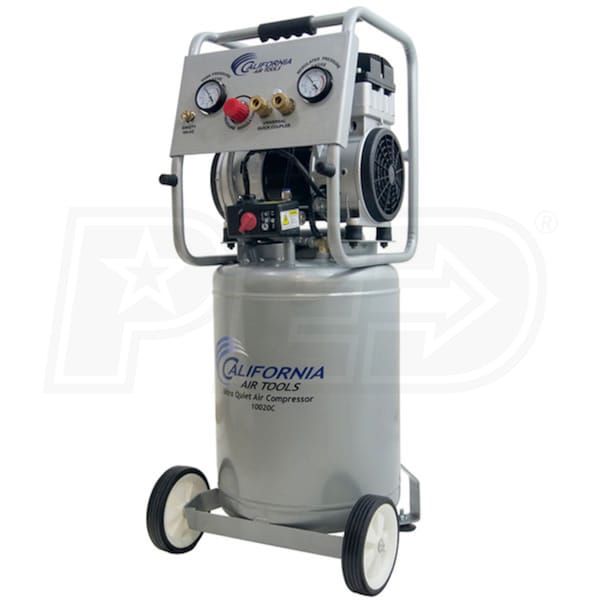

California Air Tools CAT-10020C Reviews & Ratings
Customer Photos and Videos
Product Q&A
(1)
Product QuestionsAnswered by Joshua, the Air Compressor Expert
What is the gallon/tank limitation for the motor/pump on the 10020C? For example, can this unit be interfaced (via a jumper hose) with a 15 gallon air tank from an older air compressor?
Robert
from North Carolina
January 22, 2018
Answer
The general rule of thumb that we use (there are others "out there" on the web), is to say you need approximately 5 gallons for each HP. So, this unit is properly sized as it is. If it were a higher HP unit, then I would say that there would be no problem using an auxiliary tank, but at this lower HP, I'd stick with the standard configuration.
Was this answer helpful?
Yes
2
No
1
