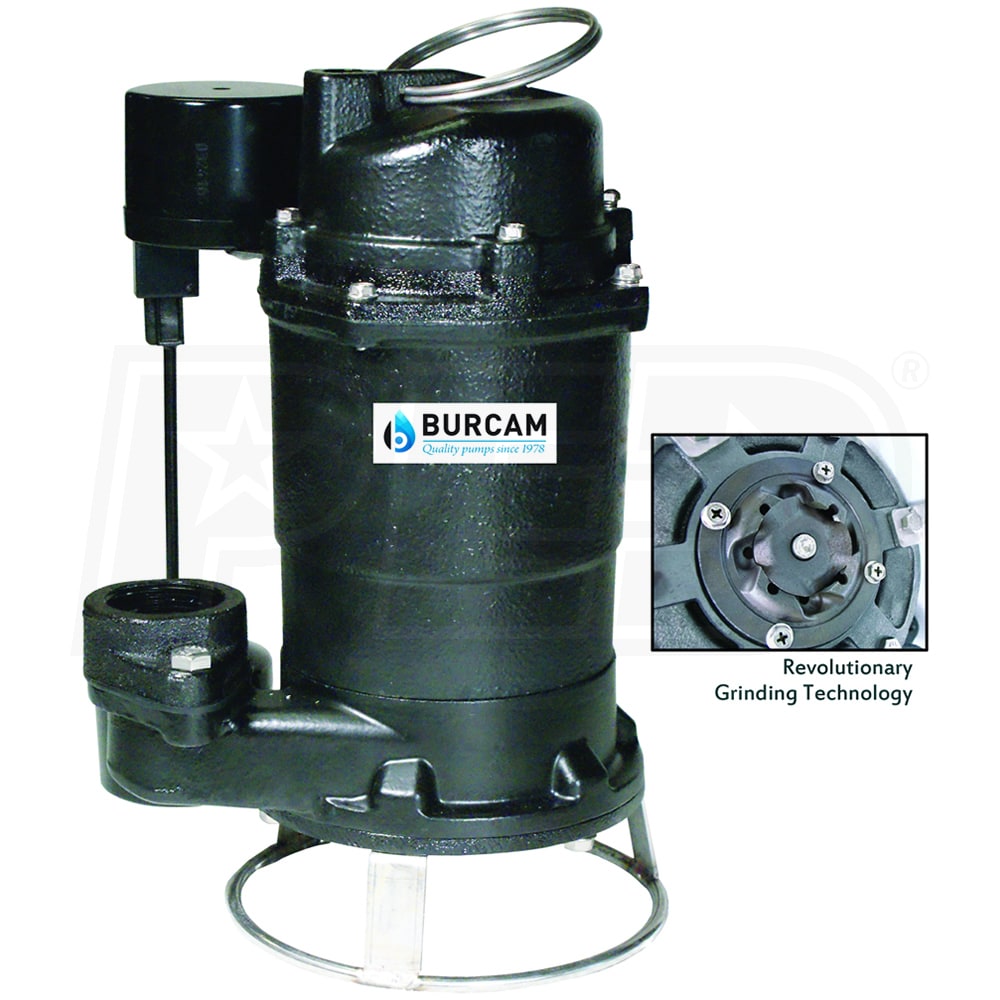

Burcam Pumps 400700P - 3/4 HP Cast Iron Residential Grinder Pump (1-1/4") w/ Vertical Float
Burcam Pumps 400700P - 3/4 HP Cast Iron Residential Grinder Pump (1-1/4") w/ Vertical Float
+
Share This Product
-
Product Description
-
7Reviews
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Style
GPH
1875
Gallons
Switch Type
Style
Sewage Pump
GPH
1875 Gallons
Switch Type
Vertical
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Automatic Submersible Grinder Pump
- Ideal for residential and light commercial applications
- Total head for this pump should not exceed 35'
- Heavy-Duty Epoxy-Coated Cast Iron Construction
- Corrosion-resistant design for extended pump life
- 3/4 HP Oil-Filled Motor
- Provides maximum motor cooling efficiency
- Thermal & Overload Protection
- Extends the life of the pump and provides added safety
- Stainless Steel Cutter & Cutter Ring
- Designed for better flow when small solids are present
- Bottom Suction Design w/ Elevated Pump Base
- Does Not Handle Baby Wipes, Feminine Hygiene Products, Etc.
- Provides ample space between intake and bottom of sewage pit
- 1-1/4" Discharge with 2" Adapter Pipe Included
- Easily connects to your current sewage-pump discharge line
- Vertical Float Switch
- Provides reliable automatic operation
Specifications
Base
Base Material
Cast Iron
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
7
Thermal Protection
Yes
Oil Free Motor
No
Nominal Voltage
120 Volt
Starting Amps
14
Pump
Gallons Per Minute
31.25 Gallons
Outlet Diameter
2"
Housing Material
Cast Iron
Solids Handling Size
2 inch
Handles Solids
Yes
Total Head Lift
35 Feet
Float Type
Vertical Float
GPH @ 0 feet
1875
GPH @ 5 feet
1875
GPH @ 10 feet
1875
GPH @ 20 feet
1635
Discharge Port Size
2 Inch
Built-in check Valve
No
Float On
12-15 Inches
Manual Override
No
Engine
Horsepower
.75 hp
Overview
Weight
36 Pounds
Consumer Warranty
2 Years
UPC
772910407001
Additional Model Numbers
400700, 400700P
Style
GPH
1875
Gallons
Switch Type
Style
Sewage Pump
GPH
1875 Gallons
Switch Type
Vertical
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Automatic Submersible Grinder Pump
- Ideal for residential and light commercial applications
- Total head for this pump should not exceed 35'
- Heavy-Duty Epoxy-Coated Cast Iron Construction
- Corrosion-resistant design for extended pump life
- 3/4 HP Oil-Filled Motor
- Provides maximum motor cooling efficiency
- Thermal & Overload Protection
- Extends the life of the pump and provides added safety
- Stainless Steel Cutter & Cutter Ring
- Designed for better flow when small solids are present
- Bottom Suction Design w/ Elevated Pump Base
- Does Not Handle Baby Wipes, Feminine Hygiene Products, Etc.
- Provides ample space between intake and bottom of sewage pit
- 1-1/4" Discharge with 2" Adapter Pipe Included
- Easily connects to your current sewage-pump discharge line
- Vertical Float Switch
- Provides reliable automatic operation
Specifications
Base
Base Material
Cast Iron
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
7
Thermal Protection
Yes
Oil Free Motor
No
Nominal Voltage
120 Volt
Starting Amps
14
Pump
Gallons Per Minute
31.25 Gallons
Outlet Diameter
2"
Housing Material
Cast Iron
Solids Handling Size
2 inch
Handles Solids
Yes
Total Head Lift
35 Feet
Float Type
Vertical Float
GPH @ 0 feet
1875
GPH @ 5 feet
1875
GPH @ 10 feet
1875
GPH @ 20 feet
1635
Discharge Port Size
2 Inch
Built-in check Valve
No
Float On
12-15 Inches
Manual Override
No
Engine
Horsepower
.75 hp
Overview
Weight
36 Pounds
Consumer Warranty
2 Years
UPC
772910407001
Additional Model Numbers
400700, 400700P
Product Specs
+−
Specifications
Base
Base Material
Cast Iron
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
7
Thermal Protection
Yes
Oil Free Motor
No
Nominal Voltage
120 Volt
Starting Amps
14
Pump
Gallons Per Minute
31.25 Gallons
Outlet Diameter
2"
Housing Material
Cast Iron
Solids Handling Size
2 inch
Handles Solids
Yes
Total Head Lift
35 Feet
Float Type
Vertical Float
GPH @ 0 feet
1875
GPH @ 5 feet
1875
GPH @ 10 feet
1875
GPH @ 20 feet
1635
Discharge Port Size
2 Inch
Built-in check Valve
No
Float On
12-15 Inches
Manual Override
No
Engine
Horsepower
.75 hp
Overview
Weight
36 Pounds
Consumer Warranty
2 Years
UPC
772910407001
Additional Model Numbers
400700, 400700P
