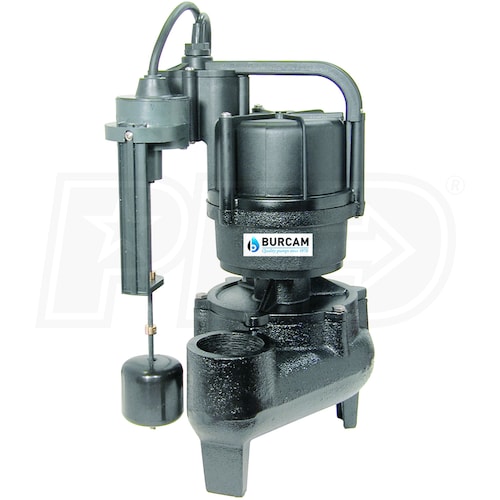

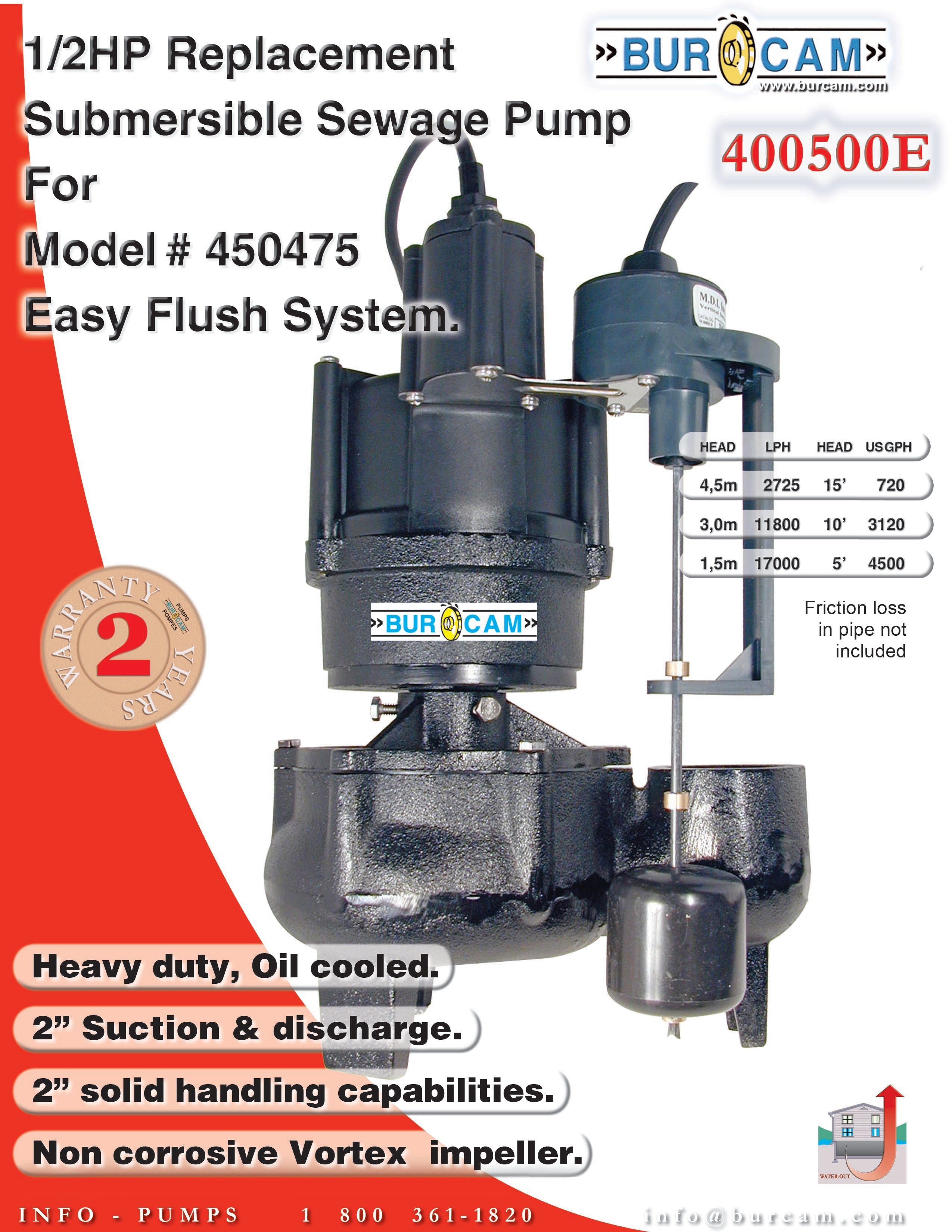

Burcam Pumps 1/2 HP Heavy Duty Replacement Sewage Pump For Easy Flush System (450475)
Model: 400500E
+
Share This Product
-
Product Description
-
127Reviews
-
3Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Style
GPH
4500
Gallons
Switch Type
Style
Sewage Pump
GPH
4500 Gallons
Switch Type
Vertical
Features
Features
- PLEASE NOTE - PUMP IS UNIQUE TO THE EASY FLUSH SYSTEM
- Alternative Pumps Will Fail Due To Size & Performance
- NOT Designed For Use In A Standard Sewage Basin
- Replacement Heavy Duty Sewage Pump For Easy Flush System
- Takes the guess work out of finding the right size pump
- Specially Treated & Rugged Cast Iron Housing
- Corrosion-resistant design for extended pump life
- 1/2 HP Oil-Filled Motor
- Provides maximum motor cooling efficiency
- Thermal & Overload Protection
- Extends the life of the pump and provides added safety
- Noryl Vortex Impeller
- Clog-free design maintains pumping performance
- Vertical Float Switch
- Designed to perform perfectly in the Easy Flush System
- Standard Stainless Steel Mechanical Rotary Seal
- 2 Year Warranty
Specifications
Base
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
9.2
Thermal Protection
Yes
Power Cord Length
9 Feet
Oil Free Motor
No
Starting Amps
18.4
Pump
Housing Material
Cast Iron
Solids Handling Size
2 inch
Float Type
Vertical Float
GPH @ 0 feet
4500
GPH @ 5 feet
4500
GPH @ 10 feet
3120
GPH @ 15 feet
720
Discharge Port Size
2 Inch
Built-in check Valve
No
Manual Override
No
Engine
Horsepower
.5 hp
Overview
Weight
34 Pounds
Consumer Warranty
2 Years
Product Length
10.75 Inches
Product Width
8-.25 Inches
Product Height
18.5 Inches
UPC
772910400507
Style
GPH
4500
Gallons
Switch Type
Style
Sewage Pump
GPH
4500 Gallons
Switch Type
Vertical
Features
Features
- PLEASE NOTE - PUMP IS UNIQUE TO THE EASY FLUSH SYSTEM
- Alternative Pumps Will Fail Due To Size & Performance
- NOT Designed For Use In A Standard Sewage Basin
- Replacement Heavy Duty Sewage Pump For Easy Flush System
- Takes the guess work out of finding the right size pump
- Specially Treated & Rugged Cast Iron Housing
- Corrosion-resistant design for extended pump life
- 1/2 HP Oil-Filled Motor
- Provides maximum motor cooling efficiency
- Thermal & Overload Protection
- Extends the life of the pump and provides added safety
- Noryl Vortex Impeller
- Clog-free design maintains pumping performance
- Vertical Float Switch
- Designed to perform perfectly in the Easy Flush System
- Standard Stainless Steel Mechanical Rotary Seal
- 2 Year Warranty
Specifications
Base
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
9.2
Thermal Protection
Yes
Power Cord Length
9 Feet
Oil Free Motor
No
Starting Amps
18.4
Pump
Housing Material
Cast Iron
Solids Handling Size
2 inch
Float Type
Vertical Float
GPH @ 0 feet
4500
GPH @ 5 feet
4500
GPH @ 10 feet
3120
GPH @ 15 feet
720
Discharge Port Size
2 Inch
Built-in check Valve
No
Manual Override
No
Engine
Horsepower
.5 hp
Overview
Weight
34 Pounds
Consumer Warranty
2 Years
Product Length
10.75 Inches
Product Width
8-.25 Inches
Product Height
18.5 Inches
UPC
772910400507
Product Specs
+−
Specifications
Base
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
9.2
Thermal Protection
Yes
Power Cord Length
9 Feet
Oil Free Motor
No
Starting Amps
18.4
Pump
Housing Material
Cast Iron
Solids Handling Size
2 inch
Float Type
Vertical Float
GPH @ 0 feet
4500
GPH @ 5 feet
4500
GPH @ 10 feet
3120
GPH @ 15 feet
720
Discharge Port Size
2 Inch
Built-in check Valve
No
Manual Override
No
Engine
Horsepower
.5 hp
Overview
Weight
34 Pounds
Consumer Warranty
2 Years
Product Length
10.75 Inches
Product Width
8-.25 Inches
Product Height
18.5 Inches
UPC
772910400507
Product Q&A
(3)
+−
Search Product Q&A's
Answered by Jim, the Sump Pump Expert
+−
Will this pump work in a system similar to the Bur Cam Easy Flush, just made by a different company?
Brian R.
from Pennsylvania
May 31, 2017
Answer
Unfortunately, I cannot make any guarantees Brian. These systems are typically designed with specific pump and switching characteristics and are typically brand specific. Once the pump is installed, it cannot be returned if it doesn't work in your system.
Was this answer helpful?
Yes
0
No
0
+−
If purchasing the 400500e sewage pump, what would be the type and quantity of oil that would need to be maintained? How often would I have to check it? Also what is the normal life expectancy if used on a daily bases
Harold
from Connecticut
October 04, 2012
Answer
You could use SAE 30 non detergent oil. It should be filled to about ½ inch of the top, however this pump comes already fill with oil. The only time you would need to check the oil level would be if for some reason the float mechanism gets caught up and the pump runs for an extended time. It would then be good to check the oil level in the pump as well as the basin to see if some oil is present. You should expect this pump to last you a good 5-7 years or more with proper care and maintenance.
Was this answer helpful?
Yes
1
No
0
+−
I have ordered a Bur-Cam 1/2 HP Heavy Duty Sewage Pump Replacement For Easy Flush System (450475). Can I install it in a
Jackel Premium Sewage Basin (18"x30")
Bill
from Nevada
February 06, 2012
Answer
While this pump will fit in a standard basin, it will not operate correctly due to the short cycle switch design.
Was this answer helpful?
Yes
0
No
0
