Briggs & Stratton 675 Series™ 190cc Vertical Engine, 25mm x 3-5/16" Tapered Crankshaft, Drilled & Tapped 7/16-20
Model:
126M02-1701-F1
+
Share This Product
Features
- Model# 126M02-1701-F1 - 25mm x 3-5/16" Tapered Crankshaft, Drilled & Tapped 7/16-30
- For walkbehind / push mowers
- Briggs & Straton 675 Series™ Single Cylinder Air-Cooled 4-Cycle Gas Engine
- Produces 6.75ft-lbs of torque* - Power levels are stated gross torque per SAE J1940
- Aluminum-Alloy Kool Bore™ Engineering
- Keeps the engine running cooler for maximum productivity
- Float-Style Carburetor w/ Primer
- Provides consistent starting even when engine is cold
- Magnetron® Electronic Ignition System
- Extremely reliable design, for consistent starting while being maintenance-free
- Large Diameter Recoil Starter
- With mechanical compresson release for easier starting with less effort
- Mechanical Torque Control
- Maximizes usable power of the engine when high torque is required
- Maxi-Clean™ Automotive-Type Air Filter
- Pleated paper design, provides excellent debris filtration
- Aluminized Lo-Tone™ Muffler
- Decrease engine noise during operation
- 2-Year Consumer Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
126M02-1701-F1

Engine
Engine Series
675 Series
Engine Style
Vertical
Engine Type
4-Cycle OHV
Cylinders
1
Cooling System
Air
Dry Weight
30 Lbs
CC
190 CCs
Max Torque
6.75 Lbs
Cylinder Bore Type
Aluminum
Bore
2.69 Inches
Stroke
2.04 Inches
Systems
Starting System
Recoil Only
Ignition System
Electronic Spark
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
20 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Included
Air Cleaner
Dry (Paper)
Fuel Tank Size
.25 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
25mm x 3-5/16 Inches
Crankshaft Type
Tapered
Crankshaft Diameter
25 mm
Crankshaft Length
3-5/16"
Crankshaft End Tapped Size
7/16-20
Crankshaft Keyway Width
Tapered Inches
Overview
Weight
30 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Commercial Warranty
90 Days
Product Length
13.8 Inches
Product Width
12.5 Inches
Product Height
10.1 Inches
UPC
024847184877
Reviews
(2)
Briggs & Stratton 126M02-1701-F1 Reviews & Ratings
Customer Photos and Videos


Briggs and Stratton 190cc, 6.75 series
By Doug B.
California
Review Posted 02/04/2025

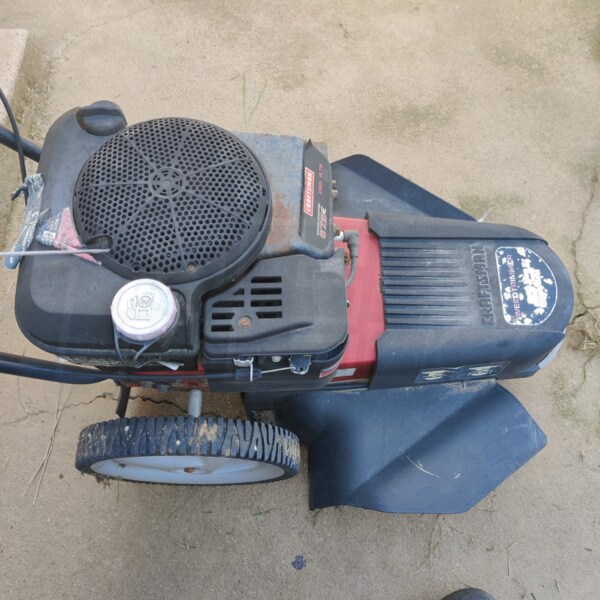

This is one of the best Motors by Briggs & Stratton it's tough it goes forever just keep gas tank full. I can't believe they discontinued this product this is such an awesome motor everybody should have a couple of them on there property just for general purpose, you can use them for pump water you can use them for bumping shit. You can use them for pumping about anything and then also they're good on a rototiller they're kicking butt tell you what. We have one on a walk behind, push weed wacking machine made by Craftsman.
Doug B. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Easy To Use, Price, I39d Buy It Again, Easy To Store
Cons:
None

Fantastic Product
By Craig P.
Fitchburg, Wisconsin
Purchased 09/29/2018 |
Review Posted 10/25/2018

This was a great direct replacement engine for my Toro Super Recycler push lawn mower. It shipped in no time and I had my mower running in just 30 minutes after receiving it. I would definitely recommend this product to anyone looking for a new engine for their mower.
Craig P. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Price, Fast, Reliable, High Quality
