Briggs & Stratton 83132-1040-F1
Briggs & Stratton 83132-1040-F1
Hover to zoom
1 Of 5

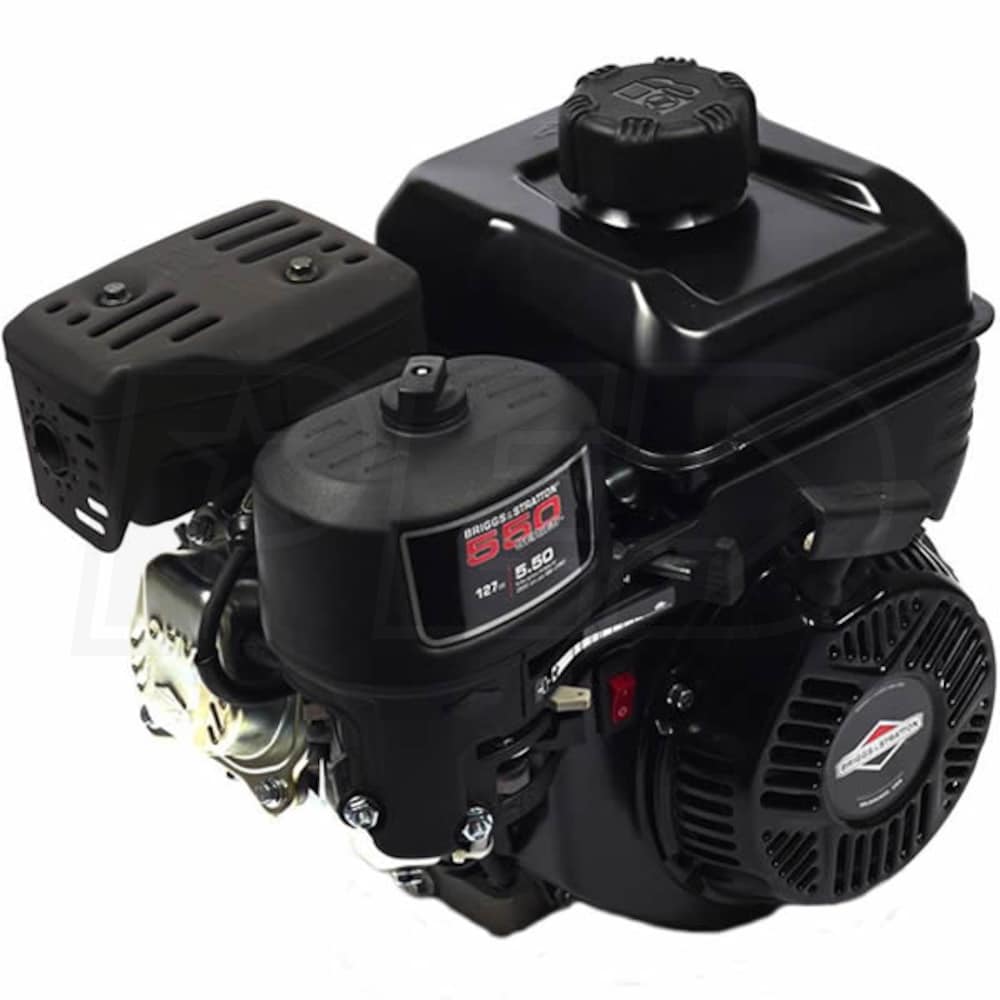

Briggs & Stratton 550 Series™ 127cc OHV Horizontal Engine, 5/8" x 2-27/64" Crankshaft
Model: 83132-1040-F1
No RatingNo RatingNo RatingNo RatingNo Rating
Number of Reviews(0)
Write a Review
$339.99
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping to60601
Shipping Details
*We currently CANNOT ship this product to Canada or any destination outside of the United States

Available Add-Ons
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+

Features
Features
  • Model 83132-1035-F1 - 5/8" x 2-27/34" Crankshaft, Keyway Tapped 1/4-28
  • Utility / General applications like log splitters, pressure washers, compressors & tillers
  • Briggs & Stratton 550 Series™ Single Cylinder Air-Cooled 4-Cycle Gas Engine
  • Produces 5.5 ft-lbs of torque* - Power levels are stated gross torque per SAE J1940
  • Overhead Valve (OHV) Technology
  • More power, less fuel-use & lower emmisions; Runs cooler for longer engine life
  • DuraLube™ Splash Lubrication System & Dura-Bore™ Cast Iron Cylinder Sleeve
  • Gear-driven system keeps engine well oiled for continous protection
  • Withstands the wear and abuse for longer engine live
  • Float-Feed Carburetor & Mechanical Governor
  • Allows for fast fuel delivery for reliable starting and operation
  • Increases throttle response to maximize usable power for higher torque applications
  • Magnetron® Electronic Ignition System
  • Extremely reliable design, for consistent starting while being maintenance-free
  • Recoil-Starter w/ Automatic Compression Release
  • Requires less effort so you can enjoy 1-2 pull starts
  • Maxi-Clean™ Automotive
  • Pleated paper design, provides excellent debris filtration
  • Added Features:
  • Includes Lo-Tone Muffler & .5-Gallon Fuel Tank
  • 2-Year Consumer Warranty & 90-Day Commercial Warranty
Specifications
Engine
Engine Series
B&S 550 Series
Engine Style
Horizontal
Engine Type
4-Cycle OHV
Cylinders
1
Cooling System
Air
Dry Weight
35 Lbs
CC
127 CCs
Net Torque
5.5 Lbs
Cylinder Bore Type
Cast Iron
Bore
2.44 Inches
Stroke
1.65 Inches
Systems
Starting System
Recoil Only
Ignition System
Electronic Spark
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
20 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Included
Air Cleaner
Dry (Paper)
Fuel Tank Size
0.5 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
5/8 x 2-27/64 Inches
Crankshaft Type
Straight
Crankshaft Diameter
5/8"
Crankshaft Length
2-27/64"
Crankshaft End Tapped Size
1/4"-28
Crankshaft Keyway Width
3/16 Inches
PTO Height
4.17 Inches
Overview
Weight
35 Pounds
Consumer Warranty
2 Years
Commercial Warranty
1 Year
UPC
024847867114

Features
Features
  • Model 83132-1035-F1 - 5/8" x 2-27/34" Crankshaft, Keyway Tapped 1/4-28
  • Utility / General applications like log splitters, pressure washers, compressors & tillers
  • Briggs & Stratton 550 Series™ Single Cylinder Air-Cooled 4-Cycle Gas Engine
  • Produces 5.5 ft-lbs of torque* - Power levels are stated gross torque per SAE J1940
  • Overhead Valve (OHV) Technology
  • More power, less fuel-use & lower emmisions; Runs cooler for longer engine life
  • DuraLube™ Splash Lubrication System & Dura-Bore™ Cast Iron Cylinder Sleeve
  • Gear-driven system keeps engine well oiled for continous protection
  • Withstands the wear and abuse for longer engine live
  • Float-Feed Carburetor & Mechanical Governor
  • Allows for fast fuel delivery for reliable starting and operation
  • Increases throttle response to maximize usable power for higher torque applications
  • Magnetron® Electronic Ignition System
  • Extremely reliable design, for consistent starting while being maintenance-free
  • Recoil-Starter w/ Automatic Compression Release
  • Requires less effort so you can enjoy 1-2 pull starts
  • Maxi-Clean™ Automotive
  • Pleated paper design, provides excellent debris filtration
  • Added Features:
  • Includes Lo-Tone Muffler & .5-Gallon Fuel Tank
  • 2-Year Consumer Warranty & 90-Day Commercial Warranty
Specifications
Engine
Engine Series
B&S 550 Series
Engine Style
Horizontal
Engine Type
4-Cycle OHV
Cylinders
1
Cooling System
Air
Dry Weight
35 Lbs
CC
127 CCs
Net Torque
5.5 Lbs
Cylinder Bore Type
Cast Iron
Bore
2.44 Inches
Stroke
1.65 Inches
Systems
Starting System
Recoil Only
Ignition System
Electronic Spark
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
20 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Included
Air Cleaner
Dry (Paper)
Fuel Tank Size
0.5 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
5/8 x 2-27/64 Inches
Crankshaft Type
Straight
Crankshaft Diameter
5/8"
Crankshaft Length
2-27/64"
Crankshaft End Tapped Size
1/4"-28
Crankshaft Keyway Width
3/16 Inches
PTO Height
4.17 Inches
Overview
Weight
35 Pounds
Consumer Warranty
2 Years
Commercial Warranty
1 Year
UPC
024847867114
Product Specs
+
Specifications
Engine
Engine Series
B&S 550 Series
Engine Style
Horizontal
Engine Type
4-Cycle OHV
Cylinders
1
Cooling System
Air
Dry Weight
35 Lbs
CC
127 CCs
Net Torque
5.5 Lbs
Cylinder Bore Type
Cast Iron
Bore
2.44 Inches
Stroke
1.65 Inches
Systems
Starting System
Recoil Only
Ignition System
Electronic Spark
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
20 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Included
Air Cleaner
Dry (Paper)
Fuel Tank Size
0.5 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
5/8 x 2-27/64 Inches
Crankshaft Type
Straight
Crankshaft Diameter
5/8"
Crankshaft Length
2-27/64"
Crankshaft End Tapped Size
1/4"-28
Crankshaft Keyway Width
3/16 Inches
PTO Height
4.17 Inches
Overview
Weight
35 Pounds
Consumer Warranty
2 Years
Commercial Warranty
1 Year
UPC
024847867114
