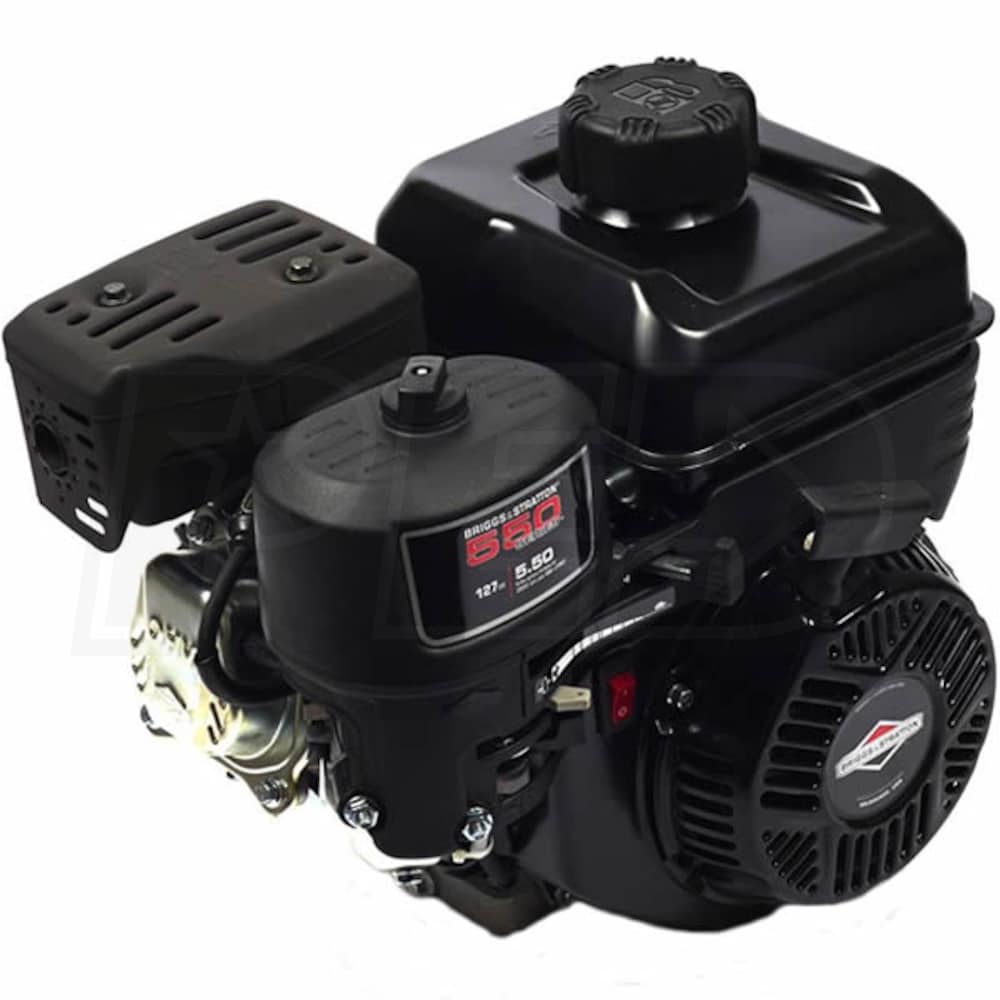

Briggs & Stratton 550 Series™ 127cc OHV Horizontal Engine, 3/4" x 2-27/64" Crankshaft
Briggs & Stratton 550 Series™ 127cc OHV Horizontal Engine, 3/4" x 2-27/64" Crankshaft
+
Share This Product
-
Product Description
-
2Reviews
-
1Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Features
Features
- Model 83132-1035-F1 - 3/4" x 2-27/34" Crankshaft, Tapped 5/16-24
- Utility / General applications like log splitters, pressure washers, compressors & tillers
- Briggs & Stratton 550 Series™ Single Cylinder Air-Cooled 4-Cycle Gas Engine
- Produces 5.5 ft-lbs of torque* - Power levels are stated gross torque per SAE J1940
- Overhead Valve (OHV) Technology
- More power, less fuel-use & lower emmisions; Runs cooler for longer engine life
- DuraLube™ Splash Lubrication System & Dura-Bore™ Cast Iron Cylinder Sleeve
- Gear-driven system keeps engine well oiled for continous protection
- Withstands the wear and abuse for longer engine live
- Float-Feed Carburetor & Mechanical Governor
- Allows for fast fuel delivery for reliable starting and operation
- Increases throttle response to maximize usable power for higher torque applications
- Magnetron® Electronic Ignition System
- Extremely reliable design, for consistent starting while being maintenance-free
- Recoil-Starter w/ Automatic Compression Release
- Requires less effort so you can enjoy 1-2 pull starts
- Maxi-Clean™ Automotive
- Pleated paper design, provides excellent debris filtration
- Added Features:
- Includes Lo-Tone muffler, .5-gallon fuel tank & fuel shut off
- 2-Year Consumer Warranty & 90-Day Commercial Warranty
Specifications
Engine
Engine Series
B&S 550 Series
Engine Style
Horizontal
Engine Type
4-Cycle OHV
Cylinders
1
Cooling System
Air
Dry Weight
35 Lbs
CC
127 CCs
Net Torque
5.5 Lbs
Cylinder Bore Type
Cast Iron
Bore
2.44 Inches
Stroke
1.65 Inches
Systems
Starting System
Recoil Only
Ignition System
Electronic Spark
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
20 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Included
Air Cleaner
Dual Element
Fuel Tank Size
0.5 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
3/4 x 2-27/64 Inches
Crankshaft Type
Straight
Crankshaft Diameter
3/4"
Crankshaft Length
2-27/64"
Crankshaft End Tapped Size
5/16"-24
Crankshaft Keyway Width
3/16 Inches
PTO Height
4.17 Inches
Overview
Weight
35 Pounds
Consumer Warranty
2 Years
Commercial Warranty
1 Year
UPC
024847816136
Features
Features
- Model 83132-1035-F1 - 3/4" x 2-27/34" Crankshaft, Tapped 5/16-24
- Utility / General applications like log splitters, pressure washers, compressors & tillers
- Briggs & Stratton 550 Series™ Single Cylinder Air-Cooled 4-Cycle Gas Engine
- Produces 5.5 ft-lbs of torque* - Power levels are stated gross torque per SAE J1940
- Overhead Valve (OHV) Technology
- More power, less fuel-use & lower emmisions; Runs cooler for longer engine life
- DuraLube™ Splash Lubrication System & Dura-Bore™ Cast Iron Cylinder Sleeve
- Gear-driven system keeps engine well oiled for continous protection
- Withstands the wear and abuse for longer engine live
- Float-Feed Carburetor & Mechanical Governor
- Allows for fast fuel delivery for reliable starting and operation
- Increases throttle response to maximize usable power for higher torque applications
- Magnetron® Electronic Ignition System
- Extremely reliable design, for consistent starting while being maintenance-free
- Recoil-Starter w/ Automatic Compression Release
- Requires less effort so you can enjoy 1-2 pull starts
- Maxi-Clean™ Automotive
- Pleated paper design, provides excellent debris filtration
- Added Features:
- Includes Lo-Tone muffler, .5-gallon fuel tank & fuel shut off
- 2-Year Consumer Warranty & 90-Day Commercial Warranty
Specifications
Engine
Engine Series
B&S 550 Series
Engine Style
Horizontal
Engine Type
4-Cycle OHV
Cylinders
1
Cooling System
Air
Dry Weight
35 Lbs
CC
127 CCs
Net Torque
5.5 Lbs
Cylinder Bore Type
Cast Iron
Bore
2.44 Inches
Stroke
1.65 Inches
Systems
Starting System
Recoil Only
Ignition System
Electronic Spark
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
20 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Included
Air Cleaner
Dual Element
Fuel Tank Size
0.5 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
3/4 x 2-27/64 Inches
Crankshaft Type
Straight
Crankshaft Diameter
3/4"
Crankshaft Length
2-27/64"
Crankshaft End Tapped Size
5/16"-24
Crankshaft Keyway Width
3/16 Inches
PTO Height
4.17 Inches
Overview
Weight
35 Pounds
Consumer Warranty
2 Years
Commercial Warranty
1 Year
UPC
024847816136
Product Specs
+−
Specifications
Engine
Engine Series
B&S 550 Series
Engine Style
Horizontal
Engine Type
4-Cycle OHV
Cylinders
1
Cooling System
Air
Dry Weight
35 Lbs
CC
127 CCs
Net Torque
5.5 Lbs
Cylinder Bore Type
Cast Iron
Bore
2.44 Inches
Stroke
1.65 Inches
Systems
Starting System
Recoil Only
Ignition System
Electronic Spark
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
20 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Included
Air Cleaner
Dual Element
Fuel Tank Size
0.5 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
3/4 x 2-27/64 Inches
Crankshaft Type
Straight
Crankshaft Diameter
3/4"
Crankshaft Length
2-27/64"
Crankshaft End Tapped Size
5/16"-24
Crankshaft Keyway Width
3/16 Inches
PTO Height
4.17 Inches
Overview
Weight
35 Pounds
Consumer Warranty
2 Years
Commercial Warranty
1 Year
UPC
024847816136
Product Q&A
(1)
+−
Search Product Q&A's
Answered by Jake, the Power Equipment Expert
+−
does this engine have the same bolt pattern as a 094212 - 0319e1 engine the crank can be longer i am using a 2 groove pulley on it now would like more power or can you recommend and a briggs engine . its for my lawn edger
Ken Charbonneau
from Michigan
July 06, 2016
Answer
It does but going from a 9 model to an 8 would actually be downsizing from what you have right now. A better option for you would be the 13R232-0001-F1, this is a newer engine, so it would not be listed on our site just yet, but would be available, you would just need to contact us and we can help you out.
