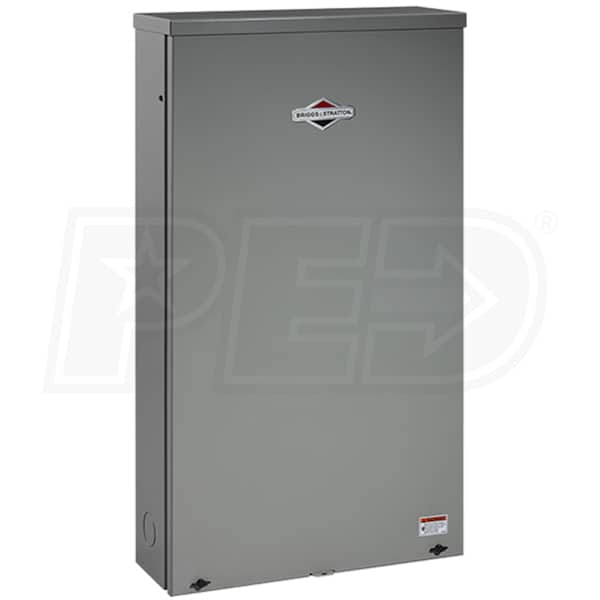

Briggs & Stratton 400-Amp Split Service Automatic Transfer Switch + AC Shedding (Service Disconnect)
Model: 71057
+
Share This Product
-
Product Description
-
1Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Type

Amp Rating
400
Load Mgmt.
Built-In
Enclosure

Type
Service Disconnect
Load Mgmt.
Built-In
Enclosure
NEMA 3R
Features
Features
- ONLY COMPATIBLE w/ 20-45kW BRIGGS & STRATTON GENERATORS
- 400-Amp Service Entrance Auto Transfer Switch
- A UL Listed solution for 2 x 200-Amp Service Breakers
- First In Its Class
- Eliminates the need for 2 separate auto transfer switches
- Service Entrance Rated - Power All Circuits Without A Sub-Panel
- Rated at 400-Amps @ 240V (2 x 200A)
- Faster Installation
- Pre-wired generator power distribution inside switch
- Less wiring & less time than typical 2 switch installations
- Smaller Transfer Switch Footprint
- Eliminates the space needed for two separate switches
- Resulting in a smaller, cleaner looking installation
- Symphony™ II Whole House Power Management
- Manages demands of up "8" high wattage loads (AC, Hot Water, etc.)
- Powers your whole home (load dependent) while preventing overload
- Versatile Design
- NEMA 3R cabinet allows for outdoor or indoor placement
- *Please Note* Reference Local Building Codes
- To determine if an ATS w/ seperate SE disconnects is required
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
96000 Watts
Rated Amps
400 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Built-In
ATS Load Shedding
Built-In
ATS Poles
2 Poles
ATS Service Disconnect
Yes
Max Utility Input
400 Amps
Max Generator Input
400 Amps
Maximum Wattage
96000 Watts
UL Listed
Yes
Overview
Weight
111 Pounds
Made in USA
Yes
Consumer Warranty
6 Years
Product Length
37 Inches
Product Width
23.7 Inches
Product Height
7 Inches
Type

Amp Rating
400
Load Mgmt.
Built-In
Enclosure

Type
Service Disconnect
Load Mgmt.
Built-In
Enclosure
NEMA 3R
Features
Features
- ONLY COMPATIBLE w/ 20-45kW BRIGGS & STRATTON GENERATORS
- 400-Amp Service Entrance Auto Transfer Switch
- A UL Listed solution for 2 x 200-Amp Service Breakers
- First In Its Class
- Eliminates the need for 2 separate auto transfer switches
- Service Entrance Rated - Power All Circuits Without A Sub-Panel
- Rated at 400-Amps @ 240V (2 x 200A)
- Faster Installation
- Pre-wired generator power distribution inside switch
- Less wiring & less time than typical 2 switch installations
- Smaller Transfer Switch Footprint
- Eliminates the space needed for two separate switches
- Resulting in a smaller, cleaner looking installation
- Symphony™ II Whole House Power Management
- Manages demands of up "8" high wattage loads (AC, Hot Water, etc.)
- Powers your whole home (load dependent) while preventing overload
- Versatile Design
- NEMA 3R cabinet allows for outdoor or indoor placement
- *Please Note* Reference Local Building Codes
- To determine if an ATS w/ seperate SE disconnects is required
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
96000 Watts
Rated Amps
400 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Built-In
ATS Load Shedding
Built-In
ATS Poles
2 Poles
ATS Service Disconnect
Yes
Max Utility Input
400 Amps
Max Generator Input
400 Amps
Maximum Wattage
96000 Watts
UL Listed
Yes
Overview
Weight
111 Pounds
Made in USA
Yes
Consumer Warranty
6 Years
Product Length
37 Inches
Product Width
23.7 Inches
Product Height
7 Inches
Product Specs
+−
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
96000 Watts
Rated Amps
400 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Built-In
ATS Load Shedding
Built-In
ATS Poles
2 Poles
ATS Service Disconnect
Yes
Max Utility Input
400 Amps
Max Generator Input
400 Amps
Maximum Wattage
96000 Watts
UL Listed
Yes
Overview
Weight
111 Pounds
Made in USA
Yes
Consumer Warranty
6 Years
Product Length
37 Inches
Product Width
23.7 Inches
Product Height
7 Inches
