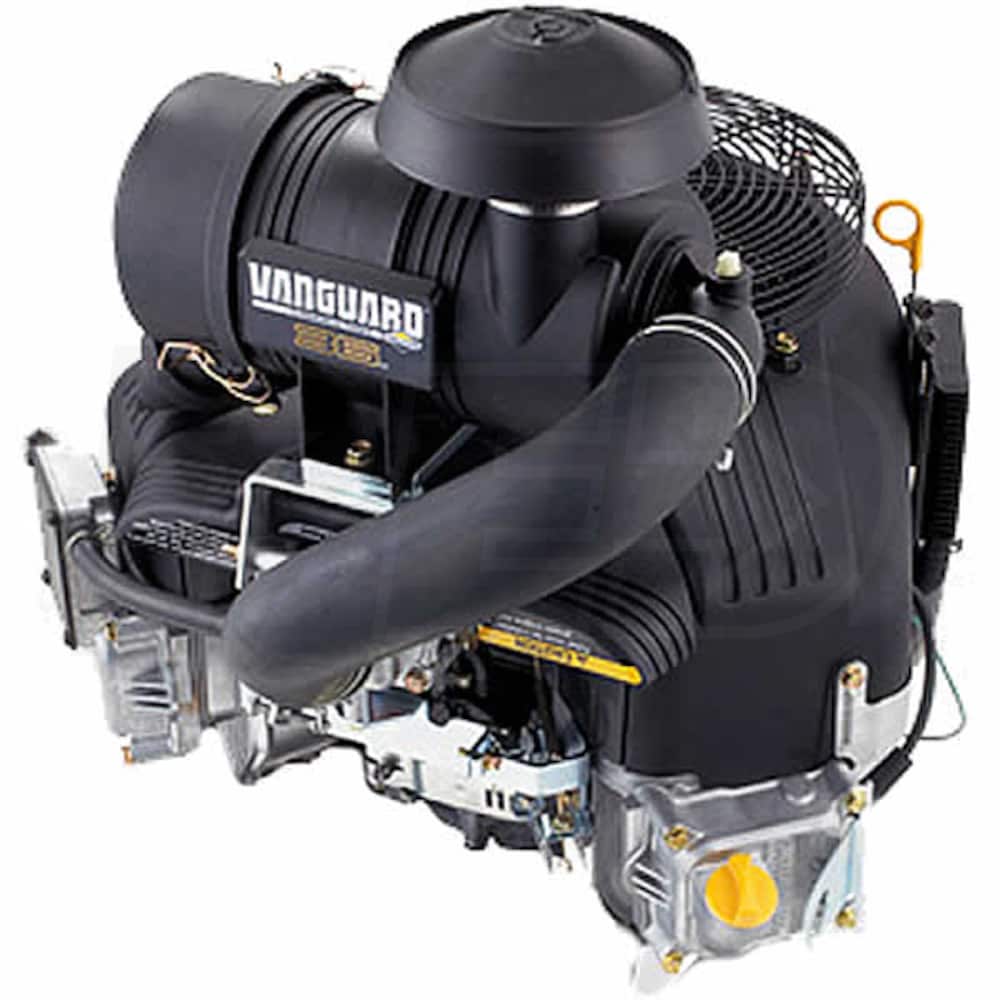

Briggs & Stratton Vanguard™ 993cc 36 Gross HP V-Twin OHV Electric Start Vertical Engine, Cyclonic AF, 1-1/8" x 4-1/2" Crankshaft

Model:

613777-0016-J1

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Briggs & Stratton Vanguard™ 993cc 36 Gross HP V-Twin OHV Electric Start Vertical Engine, Cyclonic AF, 1-1/8
Briggs & Stratton Vanguard™ 993cc 36 Gross HP V-Twin OHV Electric Start Vertical Engine, Cyclonic AF, 1-1/8" x 4-1/2" Crankshaft
Model: 613777-0016-J1
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

  • Model # 613777-0016-J1 - 1-1/8" x 4-1/2" Crankshaft, Tapped 7/16"-20, 1/4" Keyway
  • 3-Year Commercial Warranty
  • Designed for Commercial mowers, Chippers/Shredders, Concrete Trowels
  • Professional-Grade Vanguard™ 36 HP* Twin Cylinder Air-Cooled 4-Cycle Gas Engine
  • High-performance commercial engine rated in accordance with SAE J1995
  • BIG BLOCK™ (993cc) 90° V-Twin Overhead Valve (OHV) Technology
  • Low vibration, exceptional balance provides smooth power for extend valve life
  • Increased fuel economy and HP/Weight ratio while reducing engine emissions
  • Full-Pressure Lubrication w/ Centrally Located Oil Pump & Pickup + Oil Cooler
  • Centerally located pump for increased angle of operation and faster priming
  • Spin-On Oil Filter keeps oil cleaner from debris that can damage internal engine parts
  • Heavy-Duty Cylinder/Sump w/ Dura-Bore™ Cast Iron Cylinder Sleeves
  • Long engine life & improved oil control while reducing airborn intake debris
  • 5-Inch Cyclonic Mult-Stage Air Cleaner
  • Oversized, centrifugal design keeps the engine breathing in even the most dusty enviroments
  • Magnetron® Electronic Ignition & Industrial Grade Solenoid Shift Starter
  • Maintenance-free design, plus larger ignition coil for easy dependable starting
  • Innovative Debris Chopper Fan & Engineered Resin Blower Housing
  • Lower engine temperatures and less engine noise
  • Cooling Fin Inspection Panels
  • Makes it easy to inspect & clean
  • Additional Features:
  • 20A DC Alternator, Integrated Fuel-Pump, Remote Choke & Throttle Cables
  • Please Note - No Exhaust/Muffler or Fuel Tank Included
  • Model 613777-0016-J1 Replaces Model 613777-0116-J1
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

613777-0016-J1
specs product image PID-105298
Engine
Engine Series
B&S Vanguard
Engine Style
Vertical
Engine Type
4-Cycle OHV
Cylinders
2
Cooling System
Air
Dry Weight
125 Lbs
CC
993 CCs
HP
36 HP
Cylinder Bore Type
Cast Iron
Bore
3.37 Inches
Stroke
3.41 Inches
Compression Ratio
8.2:1
CARB
Yes
Systems
Charging System
20 Amps
Starting System
12-Volt Key Start
Ignition System
Electronic Spark
Lubrication
Lubrication
Pressurized
Oil Filter
Yes
Oil Capacity
82 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Not Included
Air Cleaner
Integrated Cyclonic Air Cleaner
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1-1/8 x 4-1/2 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1-1/8"
Crankshaft Length
4-1/2"
Crankshaft End Tapped Size
7/16"-20
Crankshaft Keyway Width
1/4 Inch
PTO Height
6.13 Inches
Overview
Weight
125 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
UPC
047282759417
