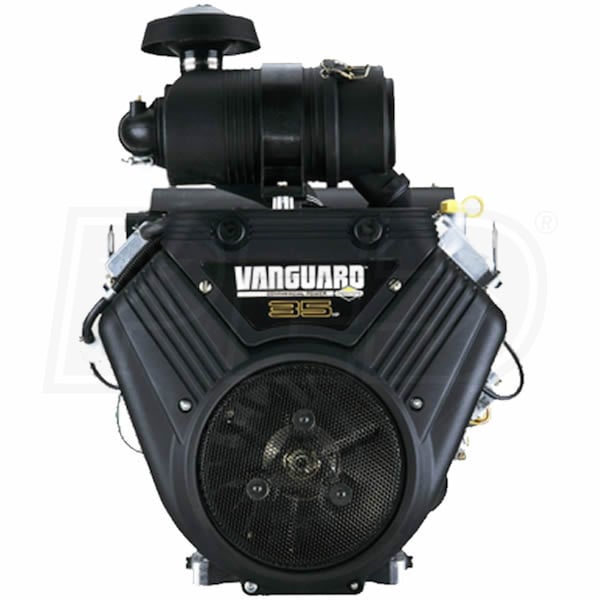

Briggs & Stratton Vanguard™ 993cc 35 Gross HP V-Twin OHV Electric Start Horizontal Engine, 1-1/8" x 4" CS, 20/50A Alt., Muffler

Model:

613477-4209-J1

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Briggs & Stratton Vanguard™ 993cc 35 Gross HP V-Twin OHV Electric Start Horizontal Engine, 1-1/8
Briggs & Stratton Vanguard™ 993cc 35 Gross HP V-Twin OHV Electric Start Horizontal Engine, 1-1/8" x 4" CS, 20/50A Alt., Muffler
Model: 613477-4209-J1
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

  • Model # 613477-4209-J1 - 1-1/8" x 4" Crankshaft, Tapped 7/16"-20, 1/4" Keyway, 20A Alt, Muffler
  • 3-Year Commercial Warranty
  • Utility / General engine applications like Compressors, Pressure Washers, Chipper/Shredders
  • Professional-Grade Vanguard™ 35 HP* Twin Cylinder Air-Cooled 4-Cycle Gas Engine
  • High-performance commercial engine rated in accordance with SAE J1995
  • 90° V-Twin Overhead Valve (OHV) Technology
  • Low vibration, exceptional balance provides smooth power for extended valve life
  • Increased fuel economy and HP/Weight ratio while reducing engine emissions
  • Full-Pressure Lubrication w/ Centrally Located Oil Pump & Pickup + Oil Cooler
  • Centerally located pump for increased angle of operation and faster priming
  • Cooler reduces oil temperature, improves lubrication, and extends oil change intervals
  • Spin-On Oil Filter - Keeps the oil cleaner from debris that can damage internal engine parts
  • Cool Cleaner Technology w/ Dura-Bore™ Cast Iron Cylinder Sleeve
  • Efficient fan reduces engine & oil temperature by 20-30 degrees
  • Long engine life & improved oil control while reducing airborn intake debris
  • High Capacity Dual-Clean™ Commercial Air Cleaner
  • Industrial pleated paper w/ foam pre-cleaner for demanding applicatins
  • Commercial-Style Float Carburetor w/ Sediment Filter
  • Proven-design for consitent starting, smoother operation & easy maintenance
  • 12V Industrial Grade Solenoid Shift Starter & Magnetron® Electronic Ignition
  • Maintenance-free design, plus larger ignition coil for quick, reliable starting
  • Manual Choke Control & Key Stop Switch
  • Designed for easier engine replacement for your current application
  • Additional Features
  • On-Board Fuel Pump, Super LoTone Muffler & 20/50A Regulated Charger System
  • Fuel Tank Not Included
  • Model 613477-4209-J1 Replaces Model 613477-0039-J1
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

613477-4209-J1
specs product image PID-105295
Engine
Engine Series
B&S Vanguard
Engine Style
Horizontal
Engine Type
4-Cycle OHV
Cylinders
2
Cooling System
Air
Dry Weight
125 Lbs
CC
993 CCs
HP
35 HP
Cylinder Bore Type
Cast Iron
Bore
3.37 Inches
Stroke
3.41 Inches
Compression Ratio
8.2:1
Systems
Charging System
20/50 Amps
Starting System
12-Volt Key Start
Ignition System
Electronic Spark
Lubrication
Lubrication
Pressurized
Oil Filter
Yes
Oil Capacity
79 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Included
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1-1/8 x 4 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1-1/8"
Crankshaft Length
4"
Crankshaft End Tapped Size
7/16"-20
Crankshaft Keyway Width
1/4 Inch
PTO Height
6.13 Inches
Overview
Weight
125 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
UPC
047282759448
