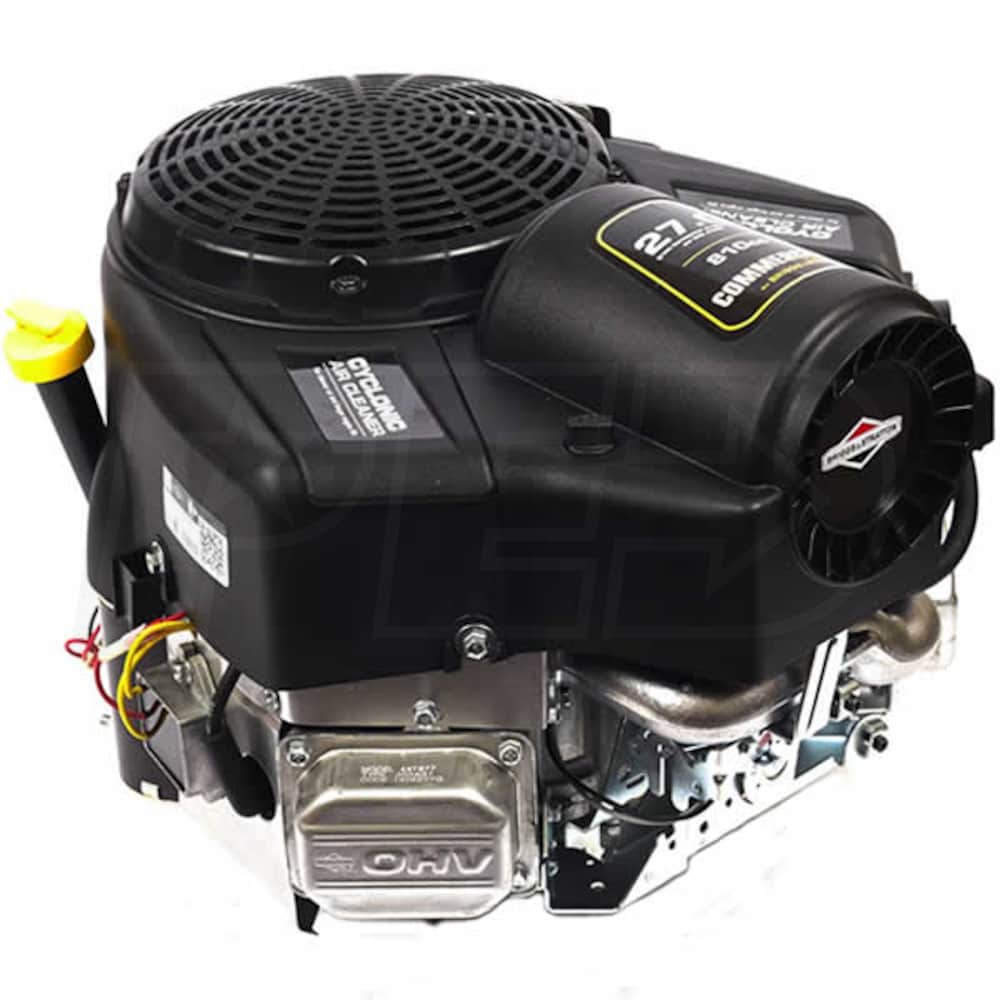

Briggs & Stratton Commercial Turf Series™ 810cc 27 Gross HP OHV Electric Start Vertical Engine, 1-1/8"x 4-19/64"
Briggs & Stratton Commercial Turf Series™ 810cc 27 Gross HP OHV Electric Start Vertical Engine, 1-1/8"x 4-19/64"
+
Share This Product
-
Product Description
-
3Reviews
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Features
Features
- Model# 49T877-0004-G1 - 1-1/8"x 4-19/64" Crankshaft 7/16-20 Keway
- For Zero Turn Mowers and Tractors
- Briggs & Stratton Commercial Turf™ 27HP* Twin Cylinder Air-Cooled 4-Cycle Gas Engine
- Commercial-power engine rated in accordance with SAE J1995
- 90° V-Twin Overhead Valve (OHV) Technology
- Balanced, lower-vibration enigeering for smoother power output
- Increased fuel economy while running cooler and reduced emmisions
- Full-Pressure Lubrication w/ Spin-On Oil Filter
- Keeps the oil cleaner from debris that can damage internal engine parts
- Dura-Bore™ Cast Iron Cylinder Sleeve
- Assures long engine life and improved oil control
- Float-Style Carburetor & Integral Fuel Pump
- Dependable design for easy connection your existing fuel tank
- 5-Step Debris Management System
- High-volume cooling fan helps the engine breath freely
- Integrated Cyclonic Air Cleaner
- Provides superior engine protection in high debris applications
- Chrome-Plated Exhaust Valves & Super-Finished Crank Pin Bearing
- Reduces wear to maximize engine life
- Magnetron® Electronic Ignition
- Maintenance-free design, plus larger ignition coil for easy dependable starting
- Also Includes:
- 12V Gear-Drive Electric Starter & 16A Regulated Charger System
- No Muffler Included
- 2-Year Limited Consumer & Commercial Warranty
Specifications
Engine
Engine Series
B&S Commercial Series
Engine Style
Vertical
Engine Type
4-Cycle OHV
Cylinders
2
Cooling System
Air
Dry Weight
87 Lbs
CC
810 CCs
HP
27 HP
Cylinder Bore Type
Cast Iron
Bore
3.30 Inches
Stroke
2.90 Inches
Compression Ratio
8.5:1
Systems
Charging System
16 Amps
Starting System
12-Volt Key Start
Ignition System
Electronic Spark
Lubrication
Lubrication
Pressurized
Oil Filter
Yes
Oil Capacity
64 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Not Included
Air Cleaner
Mult-Stage Canister
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1-1/8 x 4-19/64 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1-1/8"
Crankshaft Length
4-19/64"
Crankshaft End Tapped Size
7/16"-20
Crankshaft Keyway Width
1/4 Inch
Overview
Weight
87 Pounds
Consumer Warranty
2 Years
Commercial Warranty
2 Years
UPC
047282017593
Features
Features
- Model# 49T877-0004-G1 - 1-1/8"x 4-19/64" Crankshaft 7/16-20 Keway
- For Zero Turn Mowers and Tractors
- Briggs & Stratton Commercial Turf™ 27HP* Twin Cylinder Air-Cooled 4-Cycle Gas Engine
- Commercial-power engine rated in accordance with SAE J1995
- 90° V-Twin Overhead Valve (OHV) Technology
- Balanced, lower-vibration enigeering for smoother power output
- Increased fuel economy while running cooler and reduced emmisions
- Full-Pressure Lubrication w/ Spin-On Oil Filter
- Keeps the oil cleaner from debris that can damage internal engine parts
- Dura-Bore™ Cast Iron Cylinder Sleeve
- Assures long engine life and improved oil control
- Float-Style Carburetor & Integral Fuel Pump
- Dependable design for easy connection your existing fuel tank
- 5-Step Debris Management System
- High-volume cooling fan helps the engine breath freely
- Integrated Cyclonic Air Cleaner
- Provides superior engine protection in high debris applications
- Chrome-Plated Exhaust Valves & Super-Finished Crank Pin Bearing
- Reduces wear to maximize engine life
- Magnetron® Electronic Ignition
- Maintenance-free design, plus larger ignition coil for easy dependable starting
- Also Includes:
- 12V Gear-Drive Electric Starter & 16A Regulated Charger System
- No Muffler Included
- 2-Year Limited Consumer & Commercial Warranty
Specifications
Engine
Engine Series
B&S Commercial Series
Engine Style
Vertical
Engine Type
4-Cycle OHV
Cylinders
2
Cooling System
Air
Dry Weight
87 Lbs
CC
810 CCs
HP
27 HP
Cylinder Bore Type
Cast Iron
Bore
3.30 Inches
Stroke
2.90 Inches
Compression Ratio
8.5:1
Systems
Charging System
16 Amps
Starting System
12-Volt Key Start
Ignition System
Electronic Spark
Lubrication
Lubrication
Pressurized
Oil Filter
Yes
Oil Capacity
64 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Not Included
Air Cleaner
Mult-Stage Canister
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1-1/8 x 4-19/64 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1-1/8"
Crankshaft Length
4-19/64"
Crankshaft End Tapped Size
7/16"-20
Crankshaft Keyway Width
1/4 Inch
Overview
Weight
87 Pounds
Consumer Warranty
2 Years
Commercial Warranty
2 Years
UPC
047282017593
Product Specs
+−
Specifications
Engine
Engine Series
B&S Commercial Series
Engine Style
Vertical
Engine Type
4-Cycle OHV
Cylinders
2
Cooling System
Air
Dry Weight
87 Lbs
CC
810 CCs
HP
27 HP
Cylinder Bore Type
Cast Iron
Bore
3.30 Inches
Stroke
2.90 Inches
Compression Ratio
8.5:1
Systems
Charging System
16 Amps
Starting System
12-Volt Key Start
Ignition System
Electronic Spark
Lubrication
Lubrication
Pressurized
Oil Filter
Yes
Oil Capacity
64 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Not Included
Air Cleaner
Mult-Stage Canister
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1-1/8 x 4-19/64 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1-1/8"
Crankshaft Length
4-19/64"
Crankshaft End Tapped Size
7/16"-20
Crankshaft Keyway Width
1/4 Inch
Overview
Weight
87 Pounds
Consumer Warranty
2 Years
Commercial Warranty
2 Years
UPC
047282017593
