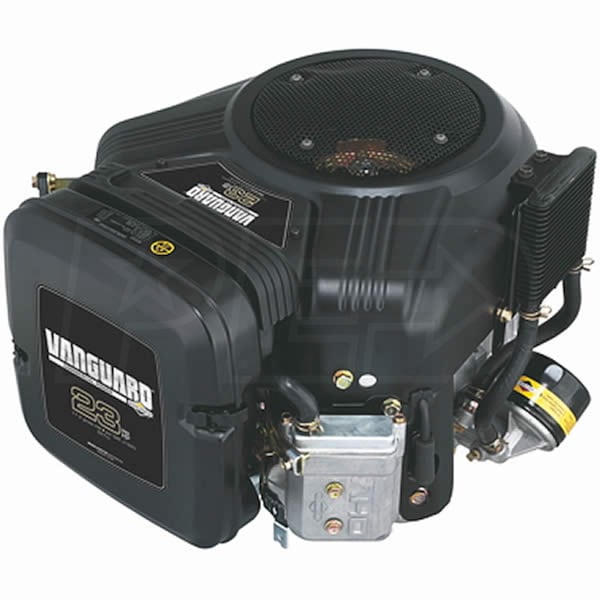

Briggs & Stratton Vanguard™ 627cc 23 Gross HP V-Twin OHV Electric (Gear) Start Vertical Engine, 1-1/8" x 4" Crankshaft, Tapped 7/16"-20, 1/4" Keyway

Briggs & Stratton Vanguard™ 627cc 23 Gross HP V-Twin OHV Electric (Gear) Start Vertical Engine, 1-1/8" x 4" Crankshaft, Tapped 7/16"-20, 1/4" Keyway
Our Price
Compare Prices
Shipping Info
Model: 386777-3025-G1
$1,589.99

In-Stock
Ships from Briggs & Stratton
Factory items ship direct from the manufacturer
Shipping times vary
Shipping Crate Icon
Free Shipping
Add-Ons
+$50.00
In-Stock
Ships from Briggs & Stratton
Factory items ship direct from the manufacturer
Shipping times vary
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+

Features
Features
  • Model# 386777-3025-G1 - 1-1/8" x 4" Crankshaft , Tapped 7/16"-20, 1/4" Keyway
  • 3-Year Commercial Warranty
  • Utility / General applications like garden tractors, compressors & grain augers
  • Professional-Grade Vanguard™ 23 HP* Twin Cylinder Air-Cooled 4-Cycle Gas Engine
  • High-performance commercial engine rated in accordance with SAE J1995
  • 90° V-Twin Overhead Valve (OHV) Technology
  • Low vibration, exceptional balance provides smooth power for extend valve life
  • Increased fuel economy and HP/Weight ratio while reducing engine emissions
  • Oil Pump Provides Full-Pressure Lubrication w/ Spin-On Oil Filter
  • Centerally located pump for increased angle of operation and faster priming
  • Keeps the oil cleaner from debris that can damage internal engine parts
  • Compact, Engine-Mounted Oil-Cooler
  • Helps maximize lubrication in long-run applications
  • Cool Cleaner Technology w/ Dura-Bore™ Cast Iron Cylinder Sleeves
  • Efficient fan reduces engine & oil temperature by 20-30 degrees
  • Long engine life & improved oil control while reducing airborn intake debris
  • Commercial-Style Float Carburetor w/ Sediment Filter
  • Proven-design for consitent starting, smoother operation & easy maintenance
  • High Capacity Dual-Clean™ Commercial Air Cleaner
  • Industrial pleated paper w/ foam pre-cleaner for demanding applicatins
  • Magnetron® Electronic Ignition
  • Maintenance-free design, plus larger ignition coil for easy dependable starting
  • 12V (Gear Drive) Electric Start with 16A Regulated Charger System
  • Easily integrates into your current application
  • Additional Features:
  • Integrated Fuel-Pump, Remote Choke & Throttle Cables
  • Please Note - No Exhaust or Fuel Tank Included
Specifications
Engine
Engine Series
B&S Vanguard
Engine Style
Vertical
Engine Type
4-Cycle OHV
Cylinders
2
Cooling System
Air
Dry Weight
74 Lbs
CC
627 CCs
HP
23 HP
Cylinder Bore Type
Cast Iron
Bore
2.97 Inches
Stroke
2.76 Inches
Compression Ratio
8.2:1
CARB
Yes
Systems
Charging System
16 Amps
Starting System
12-Volt Key Start
Ignition System
Electronic Spark
Lubrication
Lubrication
Pressurized
Oil Filter
Yes
Oil Capacity
48 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Not Included
Air Cleaner
Dual Element
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1 x 4 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1"
Crankshaft Length
4"
Crankshaft End Tapped Size
7/16"-20
Crankshaft Keyway Width
1/4 Inch
Overview
Weight
74 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
UPC
024847118070

Features
Features
  • Model# 386777-3025-G1 - 1-1/8" x 4" Crankshaft , Tapped 7/16"-20, 1/4" Keyway
  • 3-Year Commercial Warranty
  • Utility / General applications like garden tractors, compressors & grain augers
  • Professional-Grade Vanguard™ 23 HP* Twin Cylinder Air-Cooled 4-Cycle Gas Engine
  • High-performance commercial engine rated in accordance with SAE J1995
  • 90° V-Twin Overhead Valve (OHV) Technology
  • Low vibration, exceptional balance provides smooth power for extend valve life
  • Increased fuel economy and HP/Weight ratio while reducing engine emissions
  • Oil Pump Provides Full-Pressure Lubrication w/ Spin-On Oil Filter
  • Centerally located pump for increased angle of operation and faster priming
  • Keeps the oil cleaner from debris that can damage internal engine parts
  • Compact, Engine-Mounted Oil-Cooler
  • Helps maximize lubrication in long-run applications
  • Cool Cleaner Technology w/ Dura-Bore™ Cast Iron Cylinder Sleeves
  • Efficient fan reduces engine & oil temperature by 20-30 degrees
  • Long engine life & improved oil control while reducing airborn intake debris
  • Commercial-Style Float Carburetor w/ Sediment Filter
  • Proven-design for consitent starting, smoother operation & easy maintenance
  • High Capacity Dual-Clean™ Commercial Air Cleaner
  • Industrial pleated paper w/ foam pre-cleaner for demanding applicatins
  • Magnetron® Electronic Ignition
  • Maintenance-free design, plus larger ignition coil for easy dependable starting
  • 12V (Gear Drive) Electric Start with 16A Regulated Charger System
  • Easily integrates into your current application
  • Additional Features:
  • Integrated Fuel-Pump, Remote Choke & Throttle Cables
  • Please Note - No Exhaust or Fuel Tank Included
Specifications
Engine
Engine Series
B&S Vanguard
Engine Style
Vertical
Engine Type
4-Cycle OHV
Cylinders
2
Cooling System
Air
Dry Weight
74 Lbs
CC
627 CCs
HP
23 HP
Cylinder Bore Type
Cast Iron
Bore
2.97 Inches
Stroke
2.76 Inches
Compression Ratio
8.2:1
CARB
Yes
Systems
Charging System
16 Amps
Starting System
12-Volt Key Start
Ignition System
Electronic Spark
Lubrication
Lubrication
Pressurized
Oil Filter
Yes
Oil Capacity
48 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Not Included
Air Cleaner
Dual Element
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1 x 4 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1"
Crankshaft Length
4"
Crankshaft End Tapped Size
7/16"-20
Crankshaft Keyway Width
1/4 Inch
Overview
Weight
74 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
UPC
024847118070
Product Specs
+
Specifications
Engine
Engine Series
B&S Vanguard
Engine Style
Vertical
Engine Type
4-Cycle OHV
Cylinders
2
Cooling System
Air
Dry Weight
74 Lbs
CC
627 CCs
HP
23 HP
Cylinder Bore Type
Cast Iron
Bore
2.97 Inches
Stroke
2.76 Inches
Compression Ratio
8.2:1
CARB
Yes
Systems
Charging System
16 Amps
Starting System
12-Volt Key Start
Ignition System
Electronic Spark
Lubrication
Lubrication
Pressurized
Oil Filter
Yes
Oil Capacity
48 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Not Included
Air Cleaner
Dual Element
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1 x 4 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1"
Crankshaft Length
4"
Crankshaft End Tapped Size
7/16"-20
Crankshaft Keyway Width
1/4 Inch
Overview
Weight
74 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
UPC
024847118070
