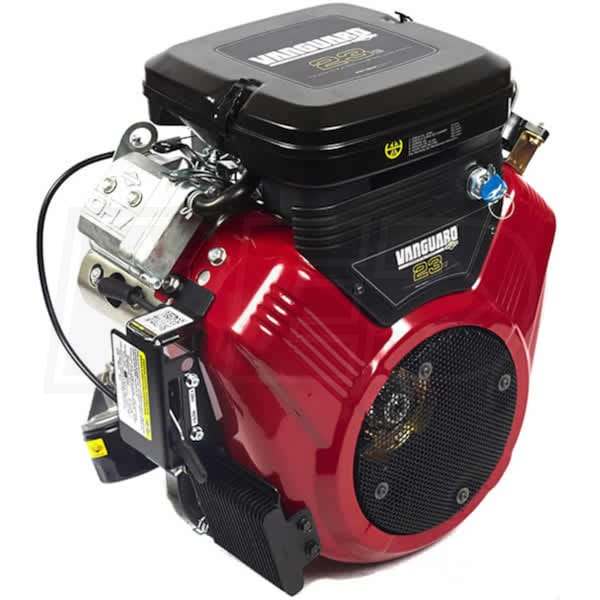

Briggs & Stratton Vanguard™ 627cc 23 Gross HP V-Twin OHV Electric Start Horizontal Engine, 1-1/8" x 3" CS, 16A DC Alt, PTO Ball Bearing

Briggs & Stratton Vanguard™ 627cc 23 Gross HP V-Twin OHV Electric Start Horizontal Engine, 1-1/8" x 3" CS, 16A DC Alt, PTO Ball Bearing
Model: 386447-3047-G1
$1,879.99
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping &
Tax-Free (Except IL)
Add-Ons
+$50.00
Factory-Direct
Ships in 2-5 Business Days
Enter your ZIP Code below to see an estimated arrival time of delivery to your home or business.
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
  • Product Description
  • Reviews
  • Product Q&A
  • How-To Articles
  • Manuals
Product Description
+

Features
Features
  • Model # 386447-3047-G1 - 1-1/8" x 3" Crankshaft, Drilled & Tapped 7/16"-20, 1/4" Keyway, 16A DC Alternator
  • 3-Year Commercial Warranty
  • Utility / General engine applications like Compressors, Pressure Washers, Chipper/Shredders
  • Professional-Grade Vanguard™ 23 HP* Twin Cylinder Air-Cooled 4-Cycle Gas Engine
  • High-performance commercial engine rated in accordance with SAE J1995
  • 90° V-Twin Overhead Valve (OHV) Technology
  • Low vibration, exceptional balance provides smooth power for extend valve life
  • Increased fuel economy and HP/Weight ratio while reducing engine emissions
  • Full-Pressure Lubrication w/ Centrally Located Oil Pump & Pickup + Oil Cooler
  • Centerally located pump for increased angle of operation and faster priming
  • Spin-On Oil Filter - Keeps the oil cleaner from debris that can damage internal engine parts
  • Cool Cleaner Technology w/ Dura-Bore™ Cast Iron Cylinder Sleeve
  • Efficient fan reduces engine & oil temperature by 20-30 degrees
  • Long engine life & improved oil control while reducing airborn intake debris
  • High Capacity Dual-Clean™ Commercial Air Cleaner
  • Industrial pleated paper w/ foam pre-cleaner for demanding applicatins
  • Commercial-Style Float Carburetor w/ Sediment Filter
  • Proven-design for consitent starting, smoother operation & easy maintenance
  • 12V Electric (Gear) Starter & Magnetron® Electronic Ignition
  • Maintenance-free design, plus larger ignition coil for easy dependable starting
  • (Remote) Manual Choke Control & Key Stop Switch
  • Designed for easier engine replacement for your current application
  • Additional Features
  • PTO Ball Bearing, On-Board Fuel Pump & 16A Regulated Charger System
  • Please Note - No Exhaust or Fuel Tank Included
Specifications
Engine
Engine Series
B&S Vanguard
Engine Style
Horizontal
Cylinders
2
Engine Type
4-Cycle OHV
Cooling System
Air
Dry Weight
77 Lbs
CC
627 CCs
HP
23 HP
Cylinder Bore Type
Cast Iron
Bore
2.97 Inches
Stroke
2.76 Inches
Compression Ratio
8.4:1
Systems
Charging System
16 Amps
Starting System
12-Volt Key Start
Ignition System
Electronic Spark
Lubrication
Lubrication
Pressurized
Oil Filter
Yes
Oil Capacity
48 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Not Included
Air Cleaner
Dual Element
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1-1/8 x 3 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1-1/8"
Crankshaft Length
3"
Crankshaft End Tapped Size
7/16-20
Crankshaft Keyway Width
1/4 Inch
PTO Height
5-1/4 Inches
Overview
Made in USA
Yes
Assembly Required
Yes
Weight
77 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
UPC
024847117929

Features
Features
  • Model # 386447-3047-G1 - 1-1/8" x 3" Crankshaft, Drilled & Tapped 7/16"-20, 1/4" Keyway, 16A DC Alternator
  • 3-Year Commercial Warranty
  • Utility / General engine applications like Compressors, Pressure Washers, Chipper/Shredders
  • Professional-Grade Vanguard™ 23 HP* Twin Cylinder Air-Cooled 4-Cycle Gas Engine
  • High-performance commercial engine rated in accordance with SAE J1995
  • 90° V-Twin Overhead Valve (OHV) Technology
  • Low vibration, exceptional balance provides smooth power for extend valve life
  • Increased fuel economy and HP/Weight ratio while reducing engine emissions
  • Full-Pressure Lubrication w/ Centrally Located Oil Pump & Pickup + Oil Cooler
  • Centerally located pump for increased angle of operation and faster priming
  • Spin-On Oil Filter - Keeps the oil cleaner from debris that can damage internal engine parts
  • Cool Cleaner Technology w/ Dura-Bore™ Cast Iron Cylinder Sleeve
  • Efficient fan reduces engine & oil temperature by 20-30 degrees
  • Long engine life & improved oil control while reducing airborn intake debris
  • High Capacity Dual-Clean™ Commercial Air Cleaner
  • Industrial pleated paper w/ foam pre-cleaner for demanding applicatins
  • Commercial-Style Float Carburetor w/ Sediment Filter
  • Proven-design for consitent starting, smoother operation & easy maintenance
  • 12V Electric (Gear) Starter & Magnetron® Electronic Ignition
  • Maintenance-free design, plus larger ignition coil for easy dependable starting
  • (Remote) Manual Choke Control & Key Stop Switch
  • Designed for easier engine replacement for your current application
  • Additional Features
  • PTO Ball Bearing, On-Board Fuel Pump & 16A Regulated Charger System
  • Please Note - No Exhaust or Fuel Tank Included
Specifications
Engine
Engine Series
B&S Vanguard
Engine Style
Horizontal
Cylinders
2
Engine Type
4-Cycle OHV
Cooling System
Air
Dry Weight
77 Lbs
CC
627 CCs
HP
23 HP
Cylinder Bore Type
Cast Iron
Bore
2.97 Inches
Stroke
2.76 Inches
Compression Ratio
8.4:1
Systems
Charging System
16 Amps
Starting System
12-Volt Key Start
Ignition System
Electronic Spark
Lubrication
Lubrication
Pressurized
Oil Filter
Yes
Oil Capacity
48 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Not Included
Air Cleaner
Dual Element
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1-1/8 x 3 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1-1/8"
Crankshaft Length
3"
Crankshaft End Tapped Size
7/16-20
Crankshaft Keyway Width
1/4 Inch
PTO Height
5-1/4 Inches
Overview
Made in USA
Yes
Assembly Required
Yes
Weight
77 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
UPC
024847117929
Product Specs
+
Specifications
Engine
Engine Series
B&S Vanguard
Engine Style
Horizontal
Cylinders
2
Engine Type
4-Cycle OHV
Cooling System
Air
Dry Weight
77 Lbs
CC
627 CCs
HP
23 HP
Cylinder Bore Type
Cast Iron
Bore
2.97 Inches
Stroke
2.76 Inches
Compression Ratio
8.4:1
Systems
Charging System
16 Amps
Starting System
12-Volt Key Start
Ignition System
Electronic Spark
Lubrication
Lubrication
Pressurized
Oil Filter
Yes
Oil Capacity
48 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Not Included
Air Cleaner
Dual Element
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1-1/8 x 3 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1-1/8"
Crankshaft Length
3"
Crankshaft End Tapped Size
7/16-20
Crankshaft Keyway Width
1/4 Inch
PTO Height
5-1/4 Inches
Overview
Made in USA
Yes
Assembly Required
Yes
Weight
77 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
UPC
024847117929
