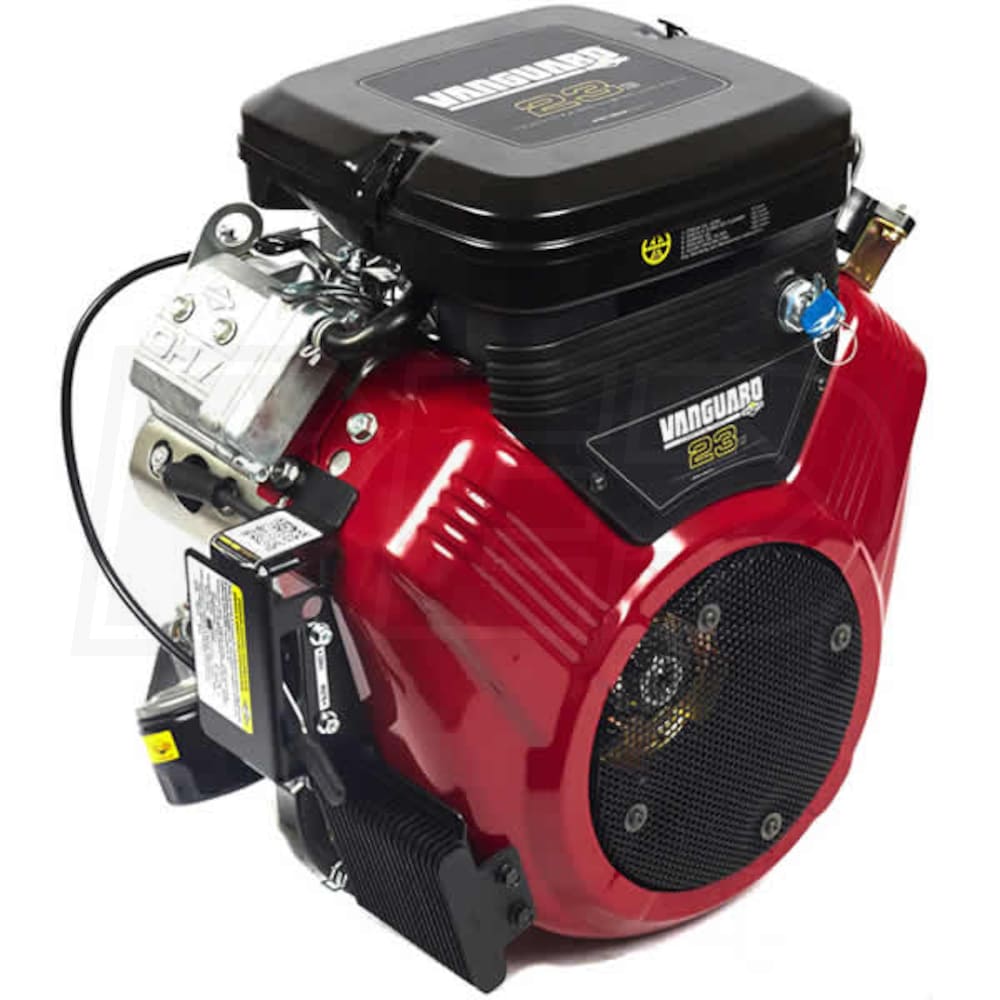

Briggs & Stratton Vanguard™ 627cc 23 Gross HP V-Twin OHV Electric Start Horizontal Engine 1" x 3" CS, 16A Alt, PTO Ball Bearing
Model: 386447-0438-G1
No RatingNo RatingNo RatingNo RatingNo Rating
Number of Reviews(0)
Write a Review
$1,914.99
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping to60601
Shipping Details
  • Free to Lower 48 States
  • Lift Gate Service Available - $50.00 Service Charge Learn More
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Available Add-Ons
+$50.00
Learn More
Lift Gate Service
All products weighing more than 100 lbs. ship via semi-truck. We recommend ordering the Lift Gate Service to safely lower the product to the curb. If you have a loading dock or forklift, you do NOT need a Lift Gate service. If you are a residential customer, you must have at least 2-4 able-bodied people present to unload the product. Learn More
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+

Features
Features
  • Model # 386447-0438-G1 - 1" x 3" Crankshaft Drilled & Tapped 3/8-24, 1/4 Keyway, 16A DC Alternator
  • 3-Year Commercial Warranty
  • Utility / General engine applications like Compressors, Pressure Washers, Chipper/Shredders
  • Professional-Grade Vanguard™ 23 HP* Twin Cylinder Air-Cooled 4-Cycle Gas Engine
  • High-performance commercial engine rated in accordance with SAE J1995
  • 90° V-Twin Overhead Valve (OHV) Technology
  • Low vibration, exceptional balance provides smooth power for extend valve life
  • Increased fuel economy and HP/Weight ratio while reducing engine emissions
  • Full-Pressure Lubrication w/ Centrally Located Oil Pump & Pickup + Oil Cooler
  • Centerally located pump for increased angle of operation and faster priming
  • Spin-On Oil Filter - Keeps the oil cleaner from debris that can damage internal engine parts
  • Cool Cleaner Technology w/ Dura-Bore™ Cast Iron Cylinder Sleeve
  • Efficient fan reduces engine & oil temperature by 20-30 degrees
  • Long engine life & improved oil control while reducing airborn intake debris
  • High Capacity Dual-Clean™ Commercial Air Cleaner
  • Industrial pleated paper w/ foam pre-cleaner for demanding applicatins
  • Commercial-Style Float Carburetor w/ Sediment Filter
  • Proven-design for consitent starting, smoother operation & easy maintenance
  • 12V Electric (Gear) Starter & Magnetron® Electronic Ignition
  • Maintenance-free design, plus larger ignition coil for easy dependable starting
  • (Remote) Manual Choke Control & Key Stop Switch
  • Designed for easier engine replacement for your current application
  • Additional Features
  • PTO Ball Bearing, On-Board Fuel Pump & 16A Regulated Charger System
  • Please Note - No Exhaust or Fuel Tank Included
  • Model 386447-0438-G1 Replaces Model 386447-3065-G1
Specifications
Engine
Engine Series
B&S Intek
Engine Style
Horizontal
Engine Type
4-Cycle OHV
Cylinders
2
Cooling System
Air
Dry Weight
77 Lbs
CC
627 CCs
HP
23 HP
Cylinder Bore Type
Cast Iron
Bore
2.97 Inches
Stroke
2.76 Inches
Compression Ratio
8.4:1
Systems
Charging System
16 Amps
Starting System
12-Volt w/ Recoil Backup
Ignition System
Electronic Spark
Lubrication
Lubrication
Pressurized
Oil Filter
Yes
Oil Capacity
48 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Not Included
Air Cleaner
Dual Element
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1 x 3 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1"
Crankshaft Length
3"
Crankshaft End Tapped Size
3/8"-24
Crankshaft Keyway Width
1/4 Inch
PTO Height
5.25 Inches
Overview
Consumer Warranty
3 Years
Commercial Warranty
3 Years
UPC
047282811047

Features
Features
  • Model # 386447-0438-G1 - 1" x 3" Crankshaft Drilled & Tapped 3/8-24, 1/4 Keyway, 16A DC Alternator
  • 3-Year Commercial Warranty
  • Utility / General engine applications like Compressors, Pressure Washers, Chipper/Shredders
  • Professional-Grade Vanguard™ 23 HP* Twin Cylinder Air-Cooled 4-Cycle Gas Engine
  • High-performance commercial engine rated in accordance with SAE J1995
  • 90° V-Twin Overhead Valve (OHV) Technology
  • Low vibration, exceptional balance provides smooth power for extend valve life
  • Increased fuel economy and HP/Weight ratio while reducing engine emissions
  • Full-Pressure Lubrication w/ Centrally Located Oil Pump & Pickup + Oil Cooler
  • Centerally located pump for increased angle of operation and faster priming
  • Spin-On Oil Filter - Keeps the oil cleaner from debris that can damage internal engine parts
  • Cool Cleaner Technology w/ Dura-Bore™ Cast Iron Cylinder Sleeve
  • Efficient fan reduces engine & oil temperature by 20-30 degrees
  • Long engine life & improved oil control while reducing airborn intake debris
  • High Capacity Dual-Clean™ Commercial Air Cleaner
  • Industrial pleated paper w/ foam pre-cleaner for demanding applicatins
  • Commercial-Style Float Carburetor w/ Sediment Filter
  • Proven-design for consitent starting, smoother operation & easy maintenance
  • 12V Electric (Gear) Starter & Magnetron® Electronic Ignition
  • Maintenance-free design, plus larger ignition coil for easy dependable starting
  • (Remote) Manual Choke Control & Key Stop Switch
  • Designed for easier engine replacement for your current application
  • Additional Features
  • PTO Ball Bearing, On-Board Fuel Pump & 16A Regulated Charger System
  • Please Note - No Exhaust or Fuel Tank Included
  • Model 386447-0438-G1 Replaces Model 386447-3065-G1
Specifications
Engine
Engine Series
B&S Intek
Engine Style
Horizontal
Engine Type
4-Cycle OHV
Cylinders
2
Cooling System
Air
Dry Weight
77 Lbs
CC
627 CCs
HP
23 HP
Cylinder Bore Type
Cast Iron
Bore
2.97 Inches
Stroke
2.76 Inches
Compression Ratio
8.4:1
Systems
Charging System
16 Amps
Starting System
12-Volt w/ Recoil Backup
Ignition System
Electronic Spark
Lubrication
Lubrication
Pressurized
Oil Filter
Yes
Oil Capacity
48 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Not Included
Air Cleaner
Dual Element
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1 x 3 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1"
Crankshaft Length
3"
Crankshaft End Tapped Size
3/8"-24
Crankshaft Keyway Width
1/4 Inch
PTO Height
5.25 Inches
Overview
Consumer Warranty
3 Years
Commercial Warranty
3 Years
UPC
047282811047
Product Specs
+
Specifications
Engine
Engine Series
B&S Intek
Engine Style
Horizontal
Engine Type
4-Cycle OHV
Cylinders
2
Cooling System
Air
Dry Weight
77 Lbs
CC
627 CCs
HP
23 HP
Cylinder Bore Type
Cast Iron
Bore
2.97 Inches
Stroke
2.76 Inches
Compression Ratio
8.4:1
Systems
Charging System
16 Amps
Starting System
12-Volt w/ Recoil Backup
Ignition System
Electronic Spark
Lubrication
Lubrication
Pressurized
Oil Filter
Yes
Oil Capacity
48 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Not Included
Air Cleaner
Dual Element
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1 x 3 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1"
Crankshaft Length
3"
Crankshaft End Tapped Size
3/8"-24
Crankshaft Keyway Width
1/4 Inch
PTO Height
5.25 Inches
Overview
Consumer Warranty
3 Years
Commercial Warranty
3 Years
UPC
047282811047
