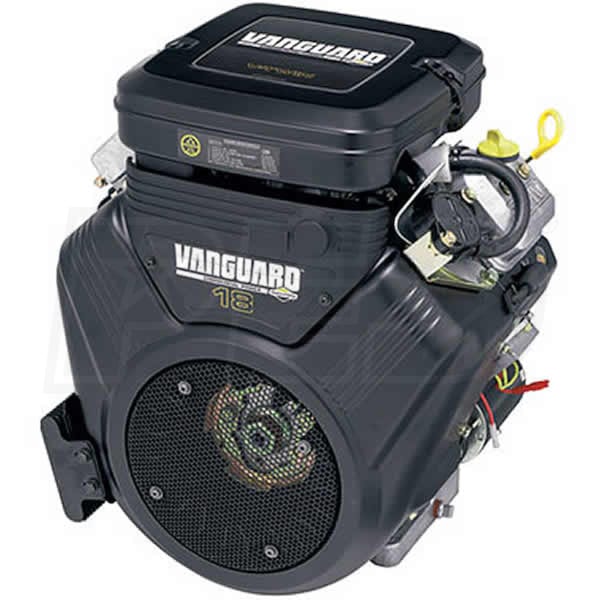

Briggs & Stratton Vanguard™ 570cc 18 Gross HP V-Twin OHV Electric Start Horizontal Engine 1" x 3-1/4" CS, Threaded 1-14, 16A Alt

Briggs & Stratton Vanguard™ 570cc 18 Gross HP V-Twin OHV Electric Start Horizontal Engine 1" x 3-1/4" CS, Threaded 1-14, 16A Alt
Our Price
Compare Prices
Shipping Info
Model: 356447-3077-G1
$1,509.99

In-Stock
Ships from Briggs & Stratton
Factory items ship direct from the manufacturer
Shipping times vary
Shipping Crate Icon
Free Shipping
In-Stock
Ships from Briggs & Stratton
Factory items ship direct from the manufacturer
Shipping times vary
Free Freight
Free Freight
*We currently CANNOT ship this product to California or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+

Features
Features
  • Model # 356447-3077-G1 - 1" x 3-1/4" Crankshaft Threaded 1-14, 16A DC Alternator
  • 3-Year Commercial Warranty
  • Utility / General engine applications like Compressors, Pressure Washers, Chipper/Shredders
  • Professional-Grade Vanguard™ 18 HP* Twin Cylinder Air-Cooled 4-Cycle Gas Engine
  • High-performance commercial engine rated in accordance with SAE J1995
  • 90° V-Twin Overhead Valve (OHV) Technology
  • Low vibration, exceptional balance provides smooth power for extend valve life
  • Increased fuel economy and HP/Weight ratio while reducing engine emissions
  • Oil Pump Provides Full-Pressure Lubrication w/ Spin-On Oil Filter
  • Centerally located pump for increased angle of operation and faster priming
  • Keeps the oil cleaner from debris that can damage internal engine parts
  • Cool Cleaner Technology w/ Dura-Bore™ Cast Iron Cylinder Sleeve
  • Efficient fan reduces engine & oil temperature by 20-30 degrees
  • Long engine life & improved oil control while reducing airborn intake debris
  • High Capacity Dual-Clean™ Commercial Air Cleaner
  • Industrial pleated paper w/ foam pre-cleaner for demanding applicatins
  • Commercial-Style Float Carburetor w/ Sediment Filter
  • Proven-design for consitent starting, smoother operation & easy maintenance
  • 12V Electric (Gear) Starter & Magnetron® Electronic Ignition
  • Maintenance-free design, plus larger ignition coil for easy dependable starting
  • (Remote) Manual Choke Control & Remote Adjustable Throttle (3600 RPM Max)
  • Designed for easier engine replacement for your current application
  • Additional Features
  • PTO Ball Bearing, On-Board Fuel Pump & 16A Regulated Charger System
  • Please Note - No Exhaust or Fuel Tank Included
Specifications
Engine
Engine Series
B&S Vanguard
Engine Style
Horizontal
Engine Type
4-Cycle OHV
Cylinders
2
Cooling System
Air
Dry Weight
74 Lbs
CC
570 CCs
HP
18 HP
Cylinder Bore Type
Cast Iron
Bore
2.83 Inches
Stroke
2.76 Inches
Compression Ratio
8.2:1
CARB
No
Systems
Charging System
16 Amps
Starting System
12-Volt Key Start
Ignition System
Electronic Spark
Lubrication
Lubrication
Pressurized
Oil Filter
Yes
Oil Capacity
48 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Not Included
Air Cleaner
Dual Element
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1 x 3-1/4 Inch
Crankshaft Type
Threaded
Crankshaft Diameter
1"
Crankshaft Length
3-3/4"
Crankshaft End Tapped Size
Threaded 1-14
Crankshaft Keyway Width
None Inches
PTO Height
5.25 Inches
Overview
Weight
74 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
UPC
024847117400

Features
Features
  • Model # 356447-3077-G1 - 1" x 3-1/4" Crankshaft Threaded 1-14, 16A DC Alternator
  • 3-Year Commercial Warranty
  • Utility / General engine applications like Compressors, Pressure Washers, Chipper/Shredders
  • Professional-Grade Vanguard™ 18 HP* Twin Cylinder Air-Cooled 4-Cycle Gas Engine
  • High-performance commercial engine rated in accordance with SAE J1995
  • 90° V-Twin Overhead Valve (OHV) Technology
  • Low vibration, exceptional balance provides smooth power for extend valve life
  • Increased fuel economy and HP/Weight ratio while reducing engine emissions
  • Oil Pump Provides Full-Pressure Lubrication w/ Spin-On Oil Filter
  • Centerally located pump for increased angle of operation and faster priming
  • Keeps the oil cleaner from debris that can damage internal engine parts
  • Cool Cleaner Technology w/ Dura-Bore™ Cast Iron Cylinder Sleeve
  • Efficient fan reduces engine & oil temperature by 20-30 degrees
  • Long engine life & improved oil control while reducing airborn intake debris
  • High Capacity Dual-Clean™ Commercial Air Cleaner
  • Industrial pleated paper w/ foam pre-cleaner for demanding applicatins
  • Commercial-Style Float Carburetor w/ Sediment Filter
  • Proven-design for consitent starting, smoother operation & easy maintenance
  • 12V Electric (Gear) Starter & Magnetron® Electronic Ignition
  • Maintenance-free design, plus larger ignition coil for easy dependable starting
  • (Remote) Manual Choke Control & Remote Adjustable Throttle (3600 RPM Max)
  • Designed for easier engine replacement for your current application
  • Additional Features
  • PTO Ball Bearing, On-Board Fuel Pump & 16A Regulated Charger System
  • Please Note - No Exhaust or Fuel Tank Included
Specifications
Engine
Engine Series
B&S Vanguard
Engine Style
Horizontal
Engine Type
4-Cycle OHV
Cylinders
2
Cooling System
Air
Dry Weight
74 Lbs
CC
570 CCs
HP
18 HP
Cylinder Bore Type
Cast Iron
Bore
2.83 Inches
Stroke
2.76 Inches
Compression Ratio
8.2:1
CARB
No
Systems
Charging System
16 Amps
Starting System
12-Volt Key Start
Ignition System
Electronic Spark
Lubrication
Lubrication
Pressurized
Oil Filter
Yes
Oil Capacity
48 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Not Included
Air Cleaner
Dual Element
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1 x 3-1/4 Inch
Crankshaft Type
Threaded
Crankshaft Diameter
1"
Crankshaft Length
3-3/4"
Crankshaft End Tapped Size
Threaded 1-14
Crankshaft Keyway Width
None Inches
PTO Height
5.25 Inches
Overview
Weight
74 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
UPC
024847117400
Product Specs
+
Specifications
Engine
Engine Series
B&S Vanguard
Engine Style
Horizontal
Engine Type
4-Cycle OHV
Cylinders
2
Cooling System
Air
Dry Weight
74 Lbs
CC
570 CCs
HP
18 HP
Cylinder Bore Type
Cast Iron
Bore
2.83 Inches
Stroke
2.76 Inches
Compression Ratio
8.2:1
CARB
No
Systems
Charging System
16 Amps
Starting System
12-Volt Key Start
Ignition System
Electronic Spark
Lubrication
Lubrication
Pressurized
Oil Filter
Yes
Oil Capacity
48 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Not Included
Air Cleaner
Dual Element
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1 x 3-1/4 Inch
Crankshaft Type
Threaded
Crankshaft Diameter
1"
Crankshaft Length
3-3/4"
Crankshaft End Tapped Size
Threaded 1-14
Crankshaft Keyway Width
None Inches
PTO Height
5.25 Inches
Overview
Weight
74 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
UPC
024847117400
