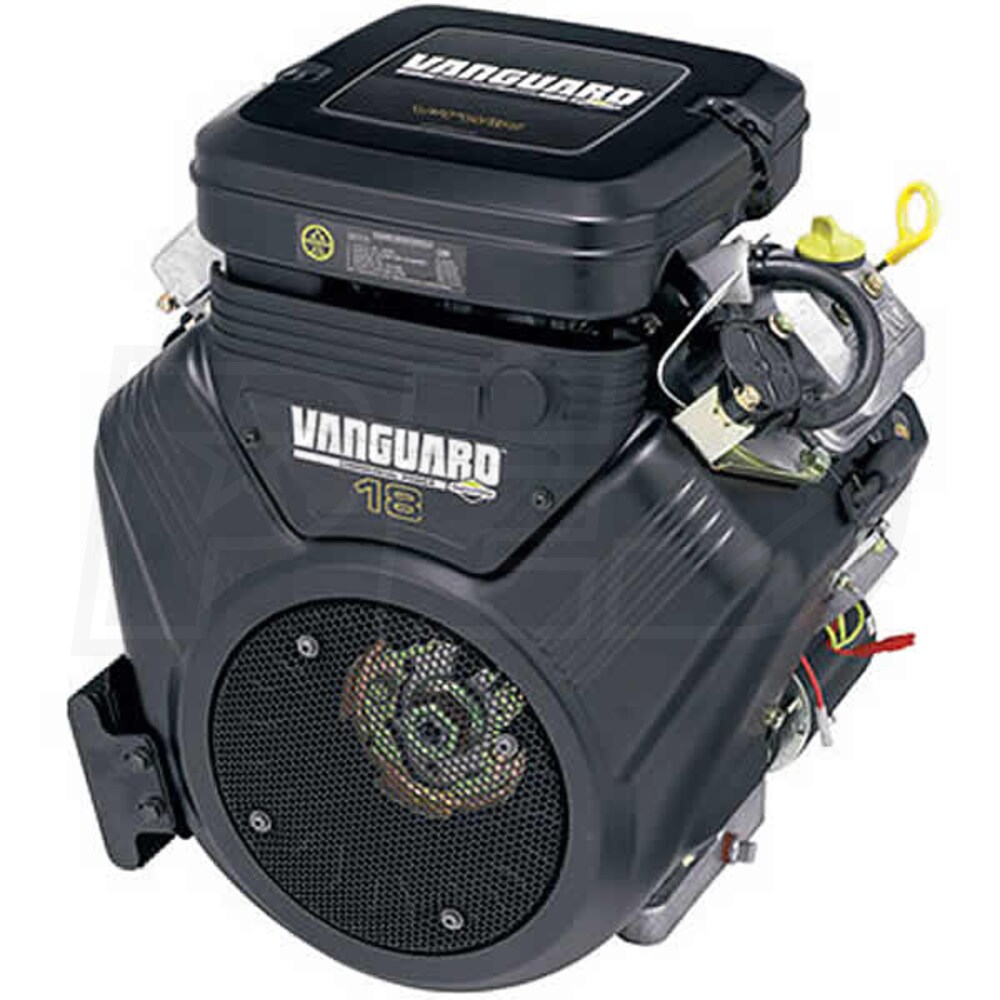

Briggs & Stratton Vanguard™ 570cc 18 Gross HP V-Twin OHV Electric Start Horizontal Engine, 1" x 2" CS, 16A Alternator
Model: 356447-0636-G1
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Features
Features
- Model # 356447-0636-G1 - 1" x 2" Crankshaft, Tapped 3/8-24, 16A DC Alternator
- 3-Year Commercial Warranty
- Utility / General engine applications like Compressors, Pressure Washers, Chipper/Shredders
- Professional-Grade Vanguard™ 18 HP* Twin Cylinder Air-Cooled 4-Cycle Gas Engine (3450 RPM)
- High-performance commercial engine rated in accordance with SAE J1995
- 90° V-Twin Overhead Valve (OHV) Technology
- Low vibration, exceptional balance provides smooth power for extend valve life
- Increased fuel economy and HP/Weight ratio while reducing engine emissions
- Oil Pump Provides Full-Pressure Lubrication w/ Spin-On Oil Filter
- Centerally located pump for increased angle of operation and faster priming
- Keeps the oil cleaner from debris that can damage internal engine parts
- Cool Cleaner Technology w/ Dura-Bore™ Cast Iron Cylinder Sleeve
- Efficient fan reduces engine & oil temperature by 20-30 degrees
- Long engine life & improved oil control while reducing airborn intake debris
- High Capacity Dual-Clean™ Commercial Air Cleaner
- Industrial pleated paper w/ foam pre-cleaner for demanding applicatins
- Commercial-Style Float Carburetor w/ Sediment Filter
- Proven-design for consitent starting, smoother operation & easy maintenance
- 12V Electric (Gear) Starter & Magnetron® Electronic Ignition
- Maintenance-free design, plus larger ignition coil for easy dependable starting
- Remote Choke Control & Supress Afterfire Solenoid
- Designed for easier engine replacement for your current application
- Additional Features
- On-Board Fuel Pump & 16A Regulated Charger System
- Please Note - No Exhaust or Fuel Tank Included
- Model 356447-0636-G1 Replaces Model 356447-0304-G2
Specifications
Engine
Engine Series
B&S Vanguard
Engine Style
Horizontal
Engine Type
4-Cycle OHV
Cylinders
2
Cooling System
Air
Dry Weight
74 Lbs
CC
570 CCs
HP
18 HP
Cylinder Bore Type
Cast Iron
Bore
2.83 Inches
Stroke
2.76 Inches
Compression Ratio
8.2:1
CARB
No
Systems
Charging System
16 Amps
Starting System
12-Volt (No Key)
Ignition System
Electronic Spark
Lubrication
Lubrication
Pressurized
Oil Filter
Yes
Oil Capacity
48 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Not Included
Air Cleaner
Dual Element
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1 x 2 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1"
Crankshaft Length
2"
Crankshaft End Tapped Size
3/8"-24
PTO Height
5.25 Inches
Overview
Weight
74 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
UPC
047282759974
Features
Features
- Model # 356447-0636-G1 - 1" x 2" Crankshaft, Tapped 3/8-24, 16A DC Alternator
- 3-Year Commercial Warranty
- Utility / General engine applications like Compressors, Pressure Washers, Chipper/Shredders
- Professional-Grade Vanguard™ 18 HP* Twin Cylinder Air-Cooled 4-Cycle Gas Engine (3450 RPM)
- High-performance commercial engine rated in accordance with SAE J1995
- 90° V-Twin Overhead Valve (OHV) Technology
- Low vibration, exceptional balance provides smooth power for extend valve life
- Increased fuel economy and HP/Weight ratio while reducing engine emissions
- Oil Pump Provides Full-Pressure Lubrication w/ Spin-On Oil Filter
- Centerally located pump for increased angle of operation and faster priming
- Keeps the oil cleaner from debris that can damage internal engine parts
- Cool Cleaner Technology w/ Dura-Bore™ Cast Iron Cylinder Sleeve
- Efficient fan reduces engine & oil temperature by 20-30 degrees
- Long engine life & improved oil control while reducing airborn intake debris
- High Capacity Dual-Clean™ Commercial Air Cleaner
- Industrial pleated paper w/ foam pre-cleaner for demanding applicatins
- Commercial-Style Float Carburetor w/ Sediment Filter
- Proven-design for consitent starting, smoother operation & easy maintenance
- 12V Electric (Gear) Starter & Magnetron® Electronic Ignition
- Maintenance-free design, plus larger ignition coil for easy dependable starting
- Remote Choke Control & Supress Afterfire Solenoid
- Designed for easier engine replacement for your current application
- Additional Features
- On-Board Fuel Pump & 16A Regulated Charger System
- Please Note - No Exhaust or Fuel Tank Included
- Model 356447-0636-G1 Replaces Model 356447-0304-G2
Specifications
Engine
Engine Series
B&S Vanguard
Engine Style
Horizontal
Engine Type
4-Cycle OHV
Cylinders
2
Cooling System
Air
Dry Weight
74 Lbs
CC
570 CCs
HP
18 HP
Cylinder Bore Type
Cast Iron
Bore
2.83 Inches
Stroke
2.76 Inches
Compression Ratio
8.2:1
CARB
No
Systems
Charging System
16 Amps
Starting System
12-Volt (No Key)
Ignition System
Electronic Spark
Lubrication
Lubrication
Pressurized
Oil Filter
Yes
Oil Capacity
48 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Not Included
Air Cleaner
Dual Element
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1 x 2 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1"
Crankshaft Length
2"
Crankshaft End Tapped Size
3/8"-24
PTO Height
5.25 Inches
Overview
Weight
74 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
UPC
047282759974
Product Specs
+−
Specifications
Engine
Engine Series
B&S Vanguard
Engine Style
Horizontal
Engine Type
4-Cycle OHV
Cylinders
2
Cooling System
Air
Dry Weight
74 Lbs
CC
570 CCs
HP
18 HP
Cylinder Bore Type
Cast Iron
Bore
2.83 Inches
Stroke
2.76 Inches
Compression Ratio
8.2:1
CARB
No
Systems
Charging System
16 Amps
Starting System
12-Volt (No Key)
Ignition System
Electronic Spark
Lubrication
Lubrication
Pressurized
Oil Filter
Yes
Oil Capacity
48 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Not Included
Air Cleaner
Dual Element
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1 x 2 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1"
Crankshaft Length
2"
Crankshaft End Tapped Size
3/8"-24
PTO Height
5.25 Inches
Overview
Weight
74 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
UPC
047282759974
