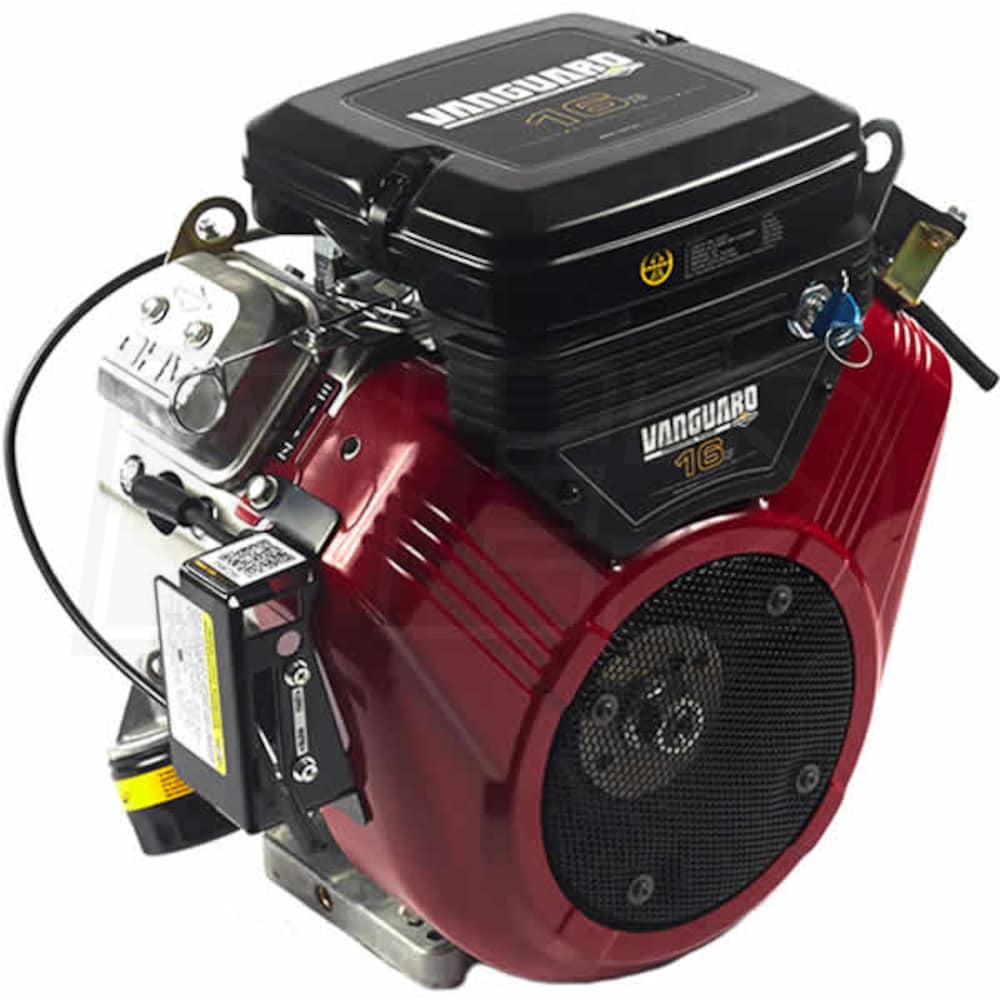

Briggs & Stratton Vanguard™ 479cc 16 Gross HP V-Twin OHV Electric Start Horizontal Engine, 1" x 3-21/32" CS, Threaded 1-14

Briggs & Stratton Vanguard™ 479cc 16 Gross HP V-Twin OHV Electric Start Horizontal Engine, 1" x 3-21/32" CS, Threaded 1-14
Model: 305447-3077-G1
$1,299.99
Factory-Direct
Ships in 4-7 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping &
Tax-Free (Except IL)
Add-Ons
+$50.00
Factory-Direct
Ships in 4-7 Business Days
Free Shipping
Free Shipping
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to California or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • How-To Articles
  • Manuals
Product Description
+

Features
Features
  • Model# 305447-3077-G1 - 1" x 3-21/32" Crankshaft, Threaded 1"-14 W/ PTO Ball Bearing
  • 3-Year Commercial Warranty
  • Utility / General applications like garden tractors, compressors & grain augers
  • Professional-Grade Vanguard™ 16 HP* Twin Cylinder Air-Cooled 4-Cycle Gas Engine
  • High-performance commercial engine rated in accordance with SAE J1995
  • 90° V-Twin Overhead Valve (OHV) Technology
  • Low vibration, exceptional balance provides smooth power for extend valve life
  • Increased fuel economy and HP/Weight ratio while reducing engine emissions
  • Oil Pump Provides Full-Pressure Lubrication w/ Spin-On Oil Filter
  • Centerally located pump for increased angle of operation and faster priming
  • Keeps the oil cleaner from debris that can damage internal engine parts
  • Cool Cleaner Technology w/ Dura-Bore™ Cast Iron Cylinder Sleeve
  • Efficient fan reduces engine & oil temperature by 20-30 degrees
  • Long engine life & improved oil control while reducing airborn intake debris
  • Commercial-Style Float Carburetor w/ Sediment Filter
  • Proven-design for consitent starting, smoother operation & easy maintenance
  • High Capacity Dual-Clean™ Commercial Air Cleaner
  • Industrial pleated paper w/ foam pre-cleaner for demanding applicatins
  • 12V Electric (Gear) Starter & Magnetron® Electronic Ignition
  • Maintenance-free design, plus larger ignition coil for easy dependable starting
  • Manual Choke Control, Remote Adjustable Throttle, Key Stop Switch
  • Designed for easier engine replacement for your current application
  • Additional Features
  • On-Board Fuel Pump & 16A Regulated Charger System
  • Please Note - No Exhaust or Fuel Tank Included
Specifications
Engine
Engine Series
B&S Vanguard
Engine Style
Horizontal
Cylinders
2
Engine Type
4-Cycle OHV
Cooling System
Air
Dry Weight
72 Lbs
CC
479 CCs
HP
16 HP
Cylinder Bore Type
Cast Iron
Bore
2.68 Inches
Stroke
2.60 Inches
Compression Ratio
8.2:1
Systems
Charging System
16 Amps
Starting System
12-Volt Key Start
Ignition System
Electronic Spark
Lubrication
Lubrication
Pressurized
Oil Filter
Yes
Oil Capacity
48 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Not Included
Air Cleaner
Dual Element
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1 x 3-21/32 Inch
Crankshaft Type
Threaded
Crankshaft Diameter
1"
Crankshaft Length
3-21/32"
Crankshaft End Tapped Size
Threaded 1-14
PTO Height
5-1/4 Inches
Overview
Made in USA
Yes
Assembly Required
Yes
Weight
72 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
UPC
024847117189

Features
Features
  • Model# 305447-3077-G1 - 1" x 3-21/32" Crankshaft, Threaded 1"-14 W/ PTO Ball Bearing
  • 3-Year Commercial Warranty
  • Utility / General applications like garden tractors, compressors & grain augers
  • Professional-Grade Vanguard™ 16 HP* Twin Cylinder Air-Cooled 4-Cycle Gas Engine
  • High-performance commercial engine rated in accordance with SAE J1995
  • 90° V-Twin Overhead Valve (OHV) Technology
  • Low vibration, exceptional balance provides smooth power for extend valve life
  • Increased fuel economy and HP/Weight ratio while reducing engine emissions
  • Oil Pump Provides Full-Pressure Lubrication w/ Spin-On Oil Filter
  • Centerally located pump for increased angle of operation and faster priming
  • Keeps the oil cleaner from debris that can damage internal engine parts
  • Cool Cleaner Technology w/ Dura-Bore™ Cast Iron Cylinder Sleeve
  • Efficient fan reduces engine & oil temperature by 20-30 degrees
  • Long engine life & improved oil control while reducing airborn intake debris
  • Commercial-Style Float Carburetor w/ Sediment Filter
  • Proven-design for consitent starting, smoother operation & easy maintenance
  • High Capacity Dual-Clean™ Commercial Air Cleaner
  • Industrial pleated paper w/ foam pre-cleaner for demanding applicatins
  • 12V Electric (Gear) Starter & Magnetron® Electronic Ignition
  • Maintenance-free design, plus larger ignition coil for easy dependable starting
  • Manual Choke Control, Remote Adjustable Throttle, Key Stop Switch
  • Designed for easier engine replacement for your current application
  • Additional Features
  • On-Board Fuel Pump & 16A Regulated Charger System
  • Please Note - No Exhaust or Fuel Tank Included
Specifications
Engine
Engine Series
B&S Vanguard
Engine Style
Horizontal
Cylinders
2
Engine Type
4-Cycle OHV
Cooling System
Air
Dry Weight
72 Lbs
CC
479 CCs
HP
16 HP
Cylinder Bore Type
Cast Iron
Bore
2.68 Inches
Stroke
2.60 Inches
Compression Ratio
8.2:1
Systems
Charging System
16 Amps
Starting System
12-Volt Key Start
Ignition System
Electronic Spark
Lubrication
Lubrication
Pressurized
Oil Filter
Yes
Oil Capacity
48 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Not Included
Air Cleaner
Dual Element
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1 x 3-21/32 Inch
Crankshaft Type
Threaded
Crankshaft Diameter
1"
Crankshaft Length
3-21/32"
Crankshaft End Tapped Size
Threaded 1-14
PTO Height
5-1/4 Inches
Overview
Made in USA
Yes
Assembly Required
Yes
Weight
72 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
UPC
024847117189
Product Specs
+
Specifications
Engine
Engine Series
B&S Vanguard
Engine Style
Horizontal
Cylinders
2
Engine Type
4-Cycle OHV
Cooling System
Air
Dry Weight
72 Lbs
CC
479 CCs
HP
16 HP
Cylinder Bore Type
Cast Iron
Bore
2.68 Inches
Stroke
2.60 Inches
Compression Ratio
8.2:1
Systems
Charging System
16 Amps
Starting System
12-Volt Key Start
Ignition System
Electronic Spark
Lubrication
Lubrication
Pressurized
Oil Filter
Yes
Oil Capacity
48 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Not Included
Air Cleaner
Dual Element
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1 x 3-21/32 Inch
Crankshaft Type
Threaded
Crankshaft Diameter
1"
Crankshaft Length
3-21/32"
Crankshaft End Tapped Size
Threaded 1-14
PTO Height
5-1/4 Inches
Overview
Made in USA
Yes
Assembly Required
Yes
Weight
72 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
UPC
024847117189
