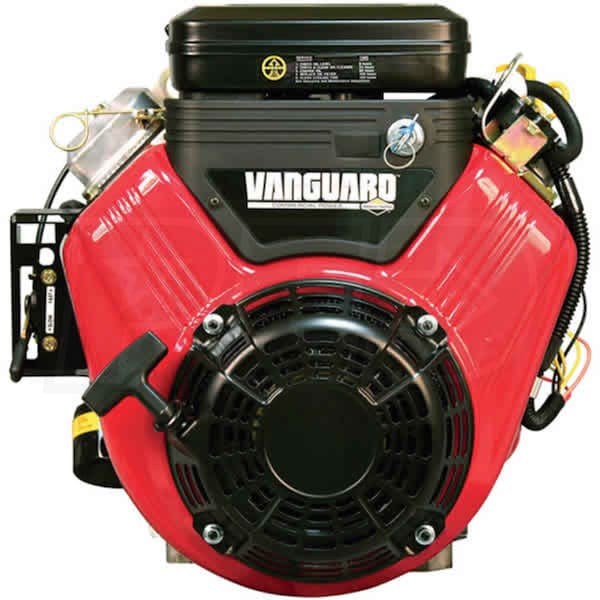

Briggs & Stratton Vanguard™ 479cc 16 Gross HP V-Twin OHV Elec/Rcl Start Horizontal Engine, 1" x 2-29/32" Crankshaft

Briggs & Stratton Vanguard™ 479cc 16 Gross HP V-Twin OHV Elec/Rcl Start Horizontal Engine, 1" x 2-29/32" Crankshaft
Our Price
Compare Prices
Shipping Info
Model: 305447-3075-G1
No RatingNo RatingNo RatingNo RatingNo Rating
Number of Reviews (0)
Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try This Instead
In-Stock
Ships in 7-10 Days
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+

Features
Features
  • Model# 305447-3075-G1 - 1" x 2-29/32" Crankshaft, Tapped 3/8-24 W/ PTO Ball Bearing
  • Utility / General applications like garden tractors, compressors & grain augers
  • Professional-Grade Vanguard™ 16 HP* Twin Cylinder Air-Cooled 4-Cycle Gas Engine
  • High-performance commercial engine rated in accordance with SAE J1995
  • 90° V-Twin Overhead Valve (OHV) Technology
  • Low vibration, exceptional balance provides smooth power for extend valve life
  • Increased fuel economy and HP/Weight ratio while reducing engine emissions
  • Oil Pump Provides Full-Pressure Lubrication w/ Spin-On Oil Filter
  • Centerally located pump for increased angle of operation and faster priming
  • Keeps the oil cleaner from debris that can damage internal engine parts
  • Cool Cleaner Technology w/ Dura-Bore™ Cast Iron Cylinder Sleeve
  • Efficient fan reduces engine & oil temperature by 20-30 degrees
  • Long engine life & improved oil control while reducing airborn intake debris
  • Commercial-Style Float Carburetor w/ Sediment Filter
  • Proven-design for consitent starting, smoother operation & easy maintenance
  • High Capacity Dual-Clean™ Commercial Air Cleaner
  • Industrial pleated paper w/ foam pre-cleaner for demanding applicatins
  • Magnetron® Electronic Ignition
  • Maintenance-free design, plus larger ignition coil for easy dependable starting
  • 12V Electric Start & Recoil Starter w/ 16A Regulated Charger System
  • Also includes starting panel assembly & On-Board Fuel Pump
  • Please Note - No Exhaust or Fuel Tank Included
  • 3-Year Commercial Warranty
  • Model 305447-3075-G1 Superseded To Model 305447-0609-G1
Specifications
Engine
Engine Series
B&S Vanguard
Engine Style
Horizontal
Engine Type
4-Cycle OHV
Cylinders
2
Cooling System
Air
Dry Weight
72 Lbs
CC
479 CCs
HP
16 HP
Cylinder Bore Type
Cast Iron
Bore
2.68 Inches
Stroke
2.60 Inches
Compression Ratio
8.2:1
Systems
Charging System
16 Amps
Starting System
12-Volt w/ Recoil Backup
Ignition System
Electronic Spark
Lubrication
Lubrication
Pressurized
Oil Filter
Yes
Oil Capacity
48 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Not Included
Air Cleaner
Dual Element
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1 x 2-29/32 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1"
Crankshaft Length
2-29/32"
Crankshaft End Tapped Size
3/8"-24
Crankshaft Keyway Width
1/4 Inch
PTO Height
5.25 Inches
Overview
Weight
72 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
UPC
024847117172

Features
Features
  • Model# 305447-3075-G1 - 1" x 2-29/32" Crankshaft, Tapped 3/8-24 W/ PTO Ball Bearing
  • Utility / General applications like garden tractors, compressors & grain augers
  • Professional-Grade Vanguard™ 16 HP* Twin Cylinder Air-Cooled 4-Cycle Gas Engine
  • High-performance commercial engine rated in accordance with SAE J1995
  • 90° V-Twin Overhead Valve (OHV) Technology
  • Low vibration, exceptional balance provides smooth power for extend valve life
  • Increased fuel economy and HP/Weight ratio while reducing engine emissions
  • Oil Pump Provides Full-Pressure Lubrication w/ Spin-On Oil Filter
  • Centerally located pump for increased angle of operation and faster priming
  • Keeps the oil cleaner from debris that can damage internal engine parts
  • Cool Cleaner Technology w/ Dura-Bore™ Cast Iron Cylinder Sleeve
  • Efficient fan reduces engine & oil temperature by 20-30 degrees
  • Long engine life & improved oil control while reducing airborn intake debris
  • Commercial-Style Float Carburetor w/ Sediment Filter
  • Proven-design for consitent starting, smoother operation & easy maintenance
  • High Capacity Dual-Clean™ Commercial Air Cleaner
  • Industrial pleated paper w/ foam pre-cleaner for demanding applicatins
  • Magnetron® Electronic Ignition
  • Maintenance-free design, plus larger ignition coil for easy dependable starting
  • 12V Electric Start & Recoil Starter w/ 16A Regulated Charger System
  • Also includes starting panel assembly & On-Board Fuel Pump
  • Please Note - No Exhaust or Fuel Tank Included
  • 3-Year Commercial Warranty
  • Model 305447-3075-G1 Superseded To Model 305447-0609-G1
Specifications
Engine
Engine Series
B&S Vanguard
Engine Style
Horizontal
Engine Type
4-Cycle OHV
Cylinders
2
Cooling System
Air
Dry Weight
72 Lbs
CC
479 CCs
HP
16 HP
Cylinder Bore Type
Cast Iron
Bore
2.68 Inches
Stroke
2.60 Inches
Compression Ratio
8.2:1
Systems
Charging System
16 Amps
Starting System
12-Volt w/ Recoil Backup
Ignition System
Electronic Spark
Lubrication
Lubrication
Pressurized
Oil Filter
Yes
Oil Capacity
48 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Not Included
Air Cleaner
Dual Element
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1 x 2-29/32 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1"
Crankshaft Length
2-29/32"
Crankshaft End Tapped Size
3/8"-24
Crankshaft Keyway Width
1/4 Inch
PTO Height
5.25 Inches
Overview
Weight
72 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
UPC
024847117172
