Briggs & Stratton 305447-0568-F1
Briggs & Stratton 305447-0568-F1
Hover to zoom
1 Of 5

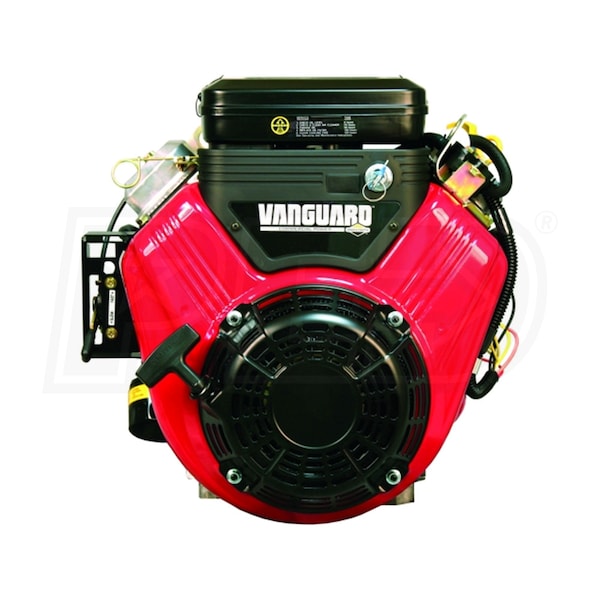

Briggs & Stratton Vanguard™ 479cc 16 Gross HP V-Twin OHV Electric Start Horizontal Engine, 1' x 3" CS, Fuel Tank & Muffler

Model:

305447-0568-F1

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Briggs & Stratton Vanguard™ 479cc 16 Gross HP V-Twin OHV Electric Start Horizontal Engine, 1' x 3
Briggs & Stratton Vanguard™ 479cc 16 Gross HP V-Twin OHV Electric Start Horizontal Engine, 1' x 3" CS, Fuel Tank & Muffler
Model: 305447-0568-F1
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

  • Model# 305447-0568-F1 - 1" x 3" Crankshaft, Tapped 3/8-24, 1/4" Keyed, 16A DC Alt, Fuel Tank & Muffler
  • 3-Year Commercial Warranty
  • Utility / General engine applications like Compressors, Pressure Washers, Chipper/Shredders
  • Professional-Grade Vanguard™ 16 HP* Twin Cylinder Air-Cooled 4-Cycle Gas Engine
  • High-performance commercial engine rated in accordance with SAE J1995
  • 90° V-Twin Overhead Valve (OHV) Technology
  • Low vibration, exceptional balance provides smooth power for extend valve life
  • Increased fuel economy and HP/Weight ratio while reducing engine emissions
  • Oil Pump Provides Full-Pressure Lubrication w/ Spin-On Oil Filter
  • Centerally located pump for increased angle of operation and faster priming
  • Keeps the oil cleaner from debris that can damage internal engine parts
  • Cool Cleaner Technology w/ Dura-Bore™ Cast Iron Cylinder Sleeve
  • Efficient fan reduces engine & oil temperature by 20-30 degrees
  • Long engine life & improved oil control while reducing airborn intake debris
  • High Capacity Dual-Clean™ Commercial Air Cleaner
  • Industrial pleated paper w/ foam pre-cleaner for demanding applicatins
  • Commercial-Style Float Carburetor w/ Sediment Filter
  • Proven-design for consitent starting, smoother operation & easy maintenance
  • 2.5Gallon Fuel Tank & Keyed Stop/Start Switch
  • Provides the added convenience for your specific application
  • 12V Electric (Gear) Starter & Magnetron® Electronic Ignition
  • Maintenance-free design, plus larger ignition coil for easy dependable starting
  • (Remote) Manual Choke Control & Remote Adjustable Throttle (3600 RPM Max)
  • Designed for easier engine replacement for your current application
  • Additional Features
  • On-Board Fuel Pump, 16A Regulated Charger System and Muffler
  • Model 305447-0568-F1 Superseded To Model 305447-0615-F1
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

305447-0568-F1
specs product image PID-65666
Engine
Engine Series
B&S Vanguard
Engine Style
Horizontal
Engine Type
4-Cycle OHV
Cylinders
2
Cooling System
Air
Dry Weight
72 Lbs
CC
479 CCs
HP
16 HP
Cylinder Bore Type
Cast Iron
Bore
2.68 Inches
Stroke
2.60 Inches
CARB
No
Systems
Charging System
16 Amps
Starting System
12-Volt w/ Recoil Backup
Ignition System
Magneto Spark
Lubrication
Lubrication
Pressurized
Oil Filter
Yes
Oil Capacity
48 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Included
Air Cleaner
Dual Element
Fuel Tank Size
2.25 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1 x 3 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1"
Crankshaft Length
3"
Crankshaft End Tapped Size
3/8"-24
Crankshaft Keyway Width
1/4 Inch
PTO Height
5.25 Inches
Overview
Weight
100 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
UPC
024847989007
