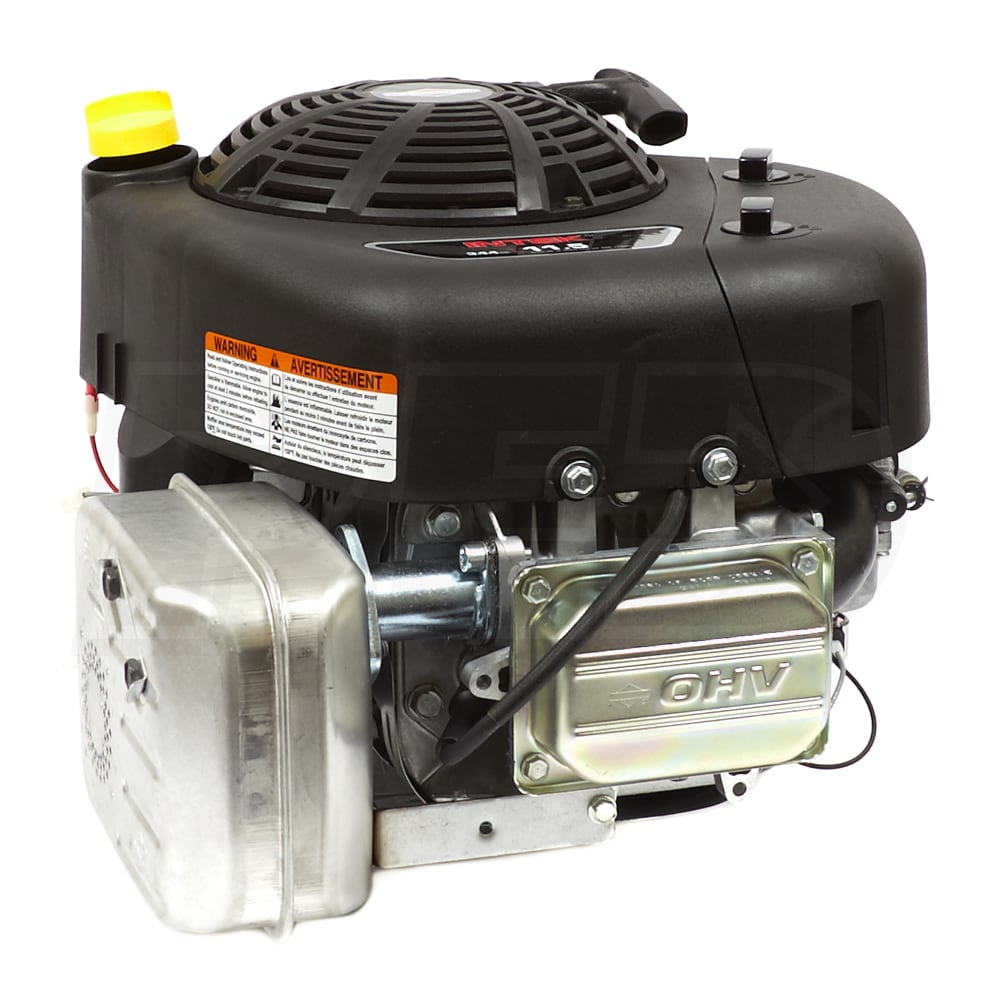

Briggs & Stratton Intek Series™ 344cc 11.5 Gross HP OHV Electric/Recoil Start Vertical Engine, 1" x 3-5/32" Crankshaft, Tapped 7/16"-20, 1/4" Keyway
Model: 21R807-0072-G1
+
Share This Product
-
Product Description
-
2Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Model# 21R807-0072-G1 - 1" x 3-5/32", Tapped 7/16-20
- For riding mowers and lawn tractors
- Briggs & Stratton Intek™ 11.5 HP* Single Cylinder Air-Cooled 4-Cycle Gas Engine
- Reliable and durable engine rated in accordance with SAE J1995
- Overhead Valve (OHV) Technology
- More power, less fuel-use & lower emissions; runs cooler for longer engine life
- DuraLube™ Splash Lubrication System & Dura-Bore™ Cast Iron Cylinder Sleeve
- Ensures maximum lubrication to protect engine components
- Assures long engine life and improved oil control
- Anti-Vibration System - AVS™
- Provides a smoother ride and more operator comfort
- Advanced Debris Management System
- High-volume cooling fan helps the engine breath freely
- High Capacity Dual-Clean™ Cartridge-Style Air Cleaner
- Industrial pleated paper w/ foam pre-cleaner for demanding applications
- Float-Feed Carburetor & Mechanical Governor
- Permits fast fuel delivery for reliable starting and operation
- Increases throttle response to maximize usable power for higher torque applications
- Magnetron™ Electronic Ignition System
- Extremely reliable design; consistent starting while being maintenance-free
- 12V Electric Starter w/ Recoil & 9A DC Alternator
- Easily compatible with most tractor/mower starting systems
- If the tractor has a light switch, the alternator will run headlights and charge battery
- Also Includes:
- Pulse-type fuel pump (Gas Tank Not Included)
- 2-Year Consumer Warranty & 1-Year Commercial Warranty
Specifications
Engine
Engine Series
B&S Intek
Engine Style
Vertical
Engine Type
4-Cycle OHV
Cylinders
1
Cooling System
Air
Dry Weight
66 Lbs
CC
344 CCs
HP
11.5 HP
Cylinder Bore Type
Cast Iron
Bore
3.44 Inches
Stroke
2.26 Inches
Systems
Charging System
9 Amps
Starting System
12-Volt w/ Recoil Backup
Ignition System
Electronic Spark
Lubrication
Lubrication
Splash
Oil Filter
Yes
Oil Capacity
48 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Included
Air Cleaner
Dual Element
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1 x 3-5/32 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1"
Crankshaft Length
3-5/32"
Crankshaft End Tapped Size
7/16"-20
Crankshaft Keyway Width
1/4 Inch
Overview
Weight
66 Pounds
Consumer Warranty
2 Years
Commercial Warranty
1 Year
UPC
047282148457
