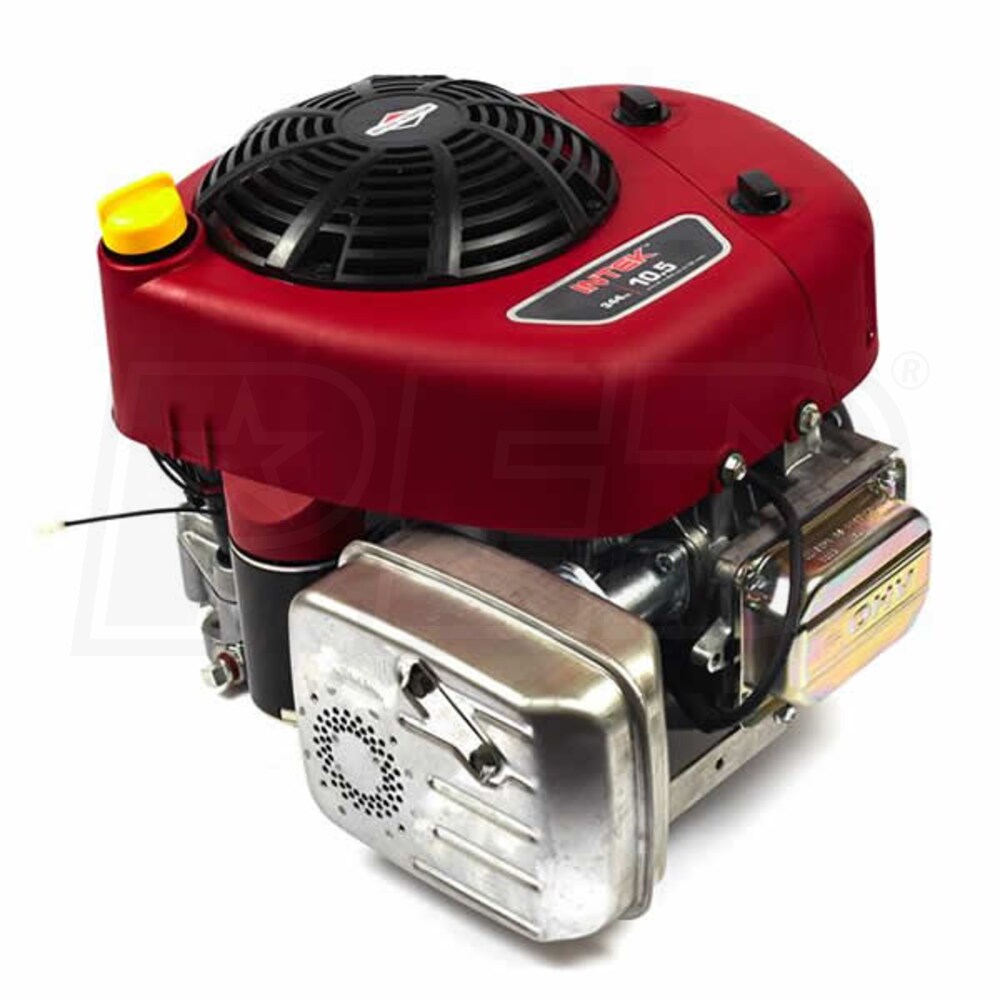

Briggs & Stratton Intek Series™ 344cc 10.5 Gross HP Electric Start Vertical Engine, 1" x 3-5/32" Crankshaft, Tapped 7/16"-20, 1/4" Keyway

Model:

21R707-0084-G1

Write a Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Briggs & Stratton Intek Series™ 344cc 10.5 Gross HP Electric Start Vertical Engine, 1
Briggs & Stratton Intek Series™ 344cc 10.5 Gross HP Electric Start Vertical Engine, 1" x 3-5/32" Crankshaft, Tapped 7/16"-20, 1/4" Keyway
Model: 21R707-0084-G1
Product Discontinued
Features
Specifications
Reviews
Accessories
How-To Articles
Manuals
Share

Features

  • Model# 21R707-0084-G1 - 1" x 3-5/32" Crankshaft, Tapped 7/16"-20, 1/4" Keyway
  • For use on riding mowers
  • Briggs & Stratton Intek Series™ Single Cylinder Air-Cooled 4-Cycle Gas Engine
  • Produces 16.7 ft-lbs of torque* - Power levels are stated gross torque per SAE J1995
  • Overhead Valve (OHV) Technology
  • More power, less fuel-use & lower emmisions
  • Runs cooler for longer engine and valve life
  • Dura-Bore™ Engineering
  • Cast iron cylinder sleeve
  • Keeps the engine running cooler for maximum productivity
  • Float-Feed Carburetor
  • Allows for fast fuel delivery for reliable starting and operation
  • Mechanical Governor
  • Increases throttle response to maximize usable power for higher torque applications
  • 12-Volt Gear Drive Electric Starter With Dual Circuit Alternator
  • Easily compatible with most tractor/mower starting systems
  • 3 AMP DC, 14 Volts AC
  • High Capacity Dual-Clean™ Premium Air Filter
  • Pleated paper filter with foam pre-cleaner
  • Ensures maximum protection for longer engine life
  • Patented Linear Balancing System
  • Provides smoother performance
  • 2-Year Consumer Warranty & 1-Year Commercial Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

21R707-0084-G1
specs product image PID-65748
Engine
Engine Series
B&S Intek
Engine Style
Vertical
Engine Type
4-Cycle OHV
Cylinders
1
Cooling System
Air
Dry Weight
73 Lbs
CC
344 CCs
HP
10.5 HP
Max Torque
16.70 Lbs
Cylinder Bore Type
Cast Iron
Bore
3.44 Inches
Stroke
2.26 Inches
CARB
Yes
Systems
Charging System
3 AMP DC, 14 Volts AC Amps
Starting System
12-Volt Key Start
Ignition System
Electronic Spark
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
48 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Included
Air Cleaner
Dual Element
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1 x 3-5/32 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1"
Crankshaft Length
3-5/32"
Crankshaft End Tapped Size
7/16"-20
Crankshaft Keyway Width
1/4 Inch
Overview
Weight
73 Pounds
Consumer Warranty
2 Years
Commercial Warranty
1 Year
Product Length
17.85 Inches
Product Width
14.8 Inches
Product Height
12.84 Inches
UPC
047282036945
