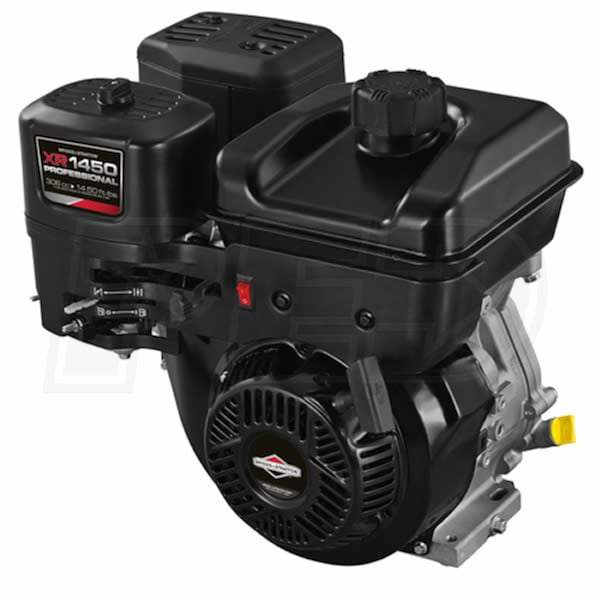

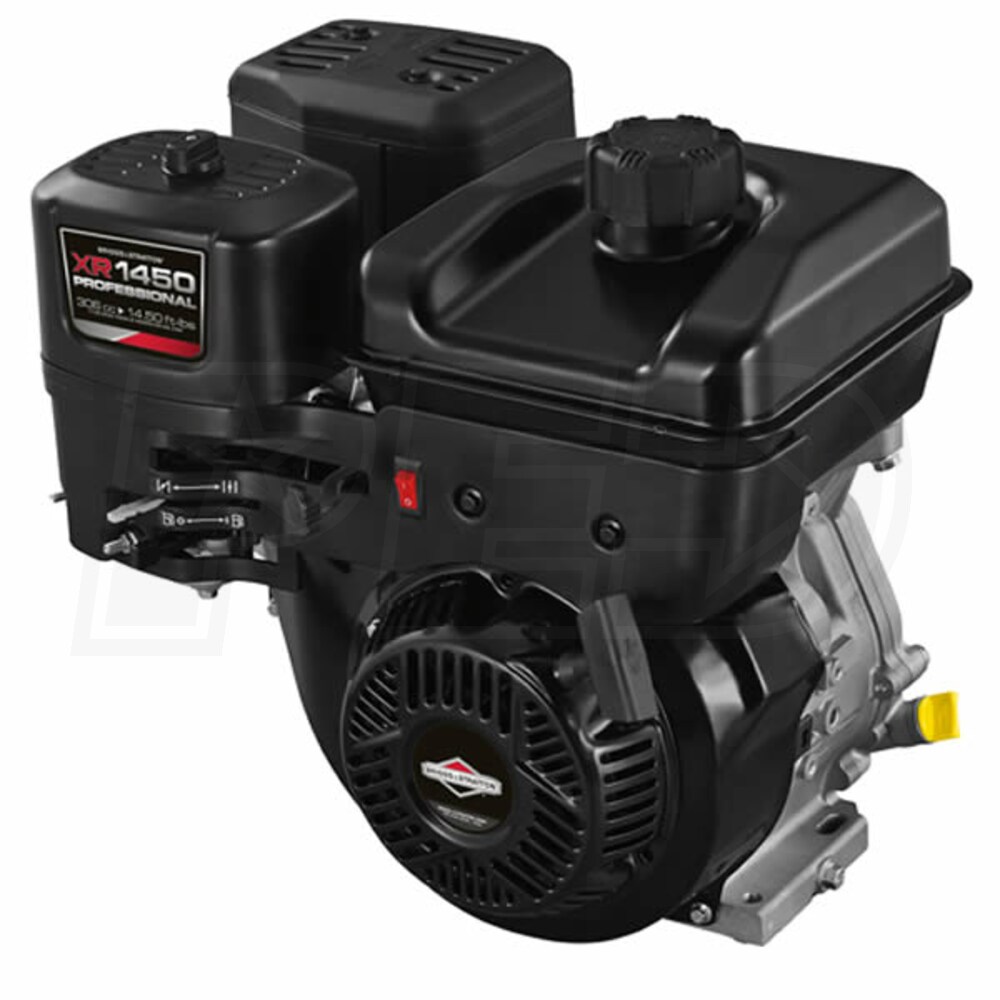

Briggs & Stratton 1450 XR Series™ 306cc Electric Start Horizontal Engine, 3/4" x 2-1/2" Crankshaft, Tapped 3/8"-24, 3/16" Keyway
Briggs & Stratton 1450 XR Series™ 306cc Electric Start Horizontal Engine, 3/4" x 2-1/2" Crankshaft, Tapped 3/8"-24, 3/16" Keyway
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Features
Features
- Model# 19N137-0053-F1 - 3/4" x 2-1/2" Crankshaft, Tapped 3/8"-24, 3/16" Keyway
- For ultility applications like tillers, log splitters, pressure washers etc.
- Briggs & Stratton 1450 XR Series™ Single Cylinder Air-Cooled 4-Cycle Gas Engine
- Produces 14.5 ft-lbs of torque* - Power levels are stated gross torque per SAE J1940
- Overhead Valve (OHV) Technology & Dual Ball Bearing
- More power, less fuel-use & lower emmisions
- Runs cooler for longer engine life
- Cast Iron Cylinder Sleeve Dura-Bore™ Engineering & DuraLube™ Splash Lubrication System
- Keeps the engine running cooler for maximum productivity
- Gear-driven system keeps engine well oiled for continous protection
- Float-Feed Carburetor & Mechanical Governor
- Allows for fast fuel delivery for reliable starting and operation
- Increases throttle response to maximize usable power for higher torque applications
- 12-Volt Electric Start To Save Your Shoulder
- Backup recoil-starter
- Includes 9-Amp Alternator
- Dual-Clean™ Premium Air Filter
- Cartridge design w/ foam pre-cleaner keep more debris out of the engine
- Includes Muffler & 1 Gallon Fuel Tank
- 2-Year Consumer Warranty & 1-Year Commercial Warranty
Specifications
Engine
Engine Series
B&S XR Professional Series
Engine Style
Horizontal
Engine Type
4-Cycle OHV
Cylinders
1
Cooling System
Air
Dry Weight
63 Lbs
CC
306 CCs
Max Torque
14.50 Lbs
Cylinder Bore Type
Cast Iron
Bore
3.22 Inches
Stroke
2.28 Inches
CARB
Yes
Systems
Charging System
9 Amps
Starting System
12-Volt w/ Recoil Backup
Ignition System
Electronic Spark
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
37 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Included
Air Cleaner
Dual Element
Fuel Tank Size
1 Gallon
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
3/4 x 2-1/2 Inches
Crankshaft Type
Straight
Crankshaft Diameter
3/4"
Crankshaft Length
2-1/2"
Crankshaft End Tapped Size
3/8"-24
Crankshaft Keyway Width
3/16 Inches
PTO Height
5.25 Inches
Overview
Weight
63 Pounds
Product Length
20 Inches
Product Width
12.71 Inches
Product Height
16.61 Inches
Consumer Warranty
2 Years
Commercial Warranty
1 Year
UPC
047282038031
