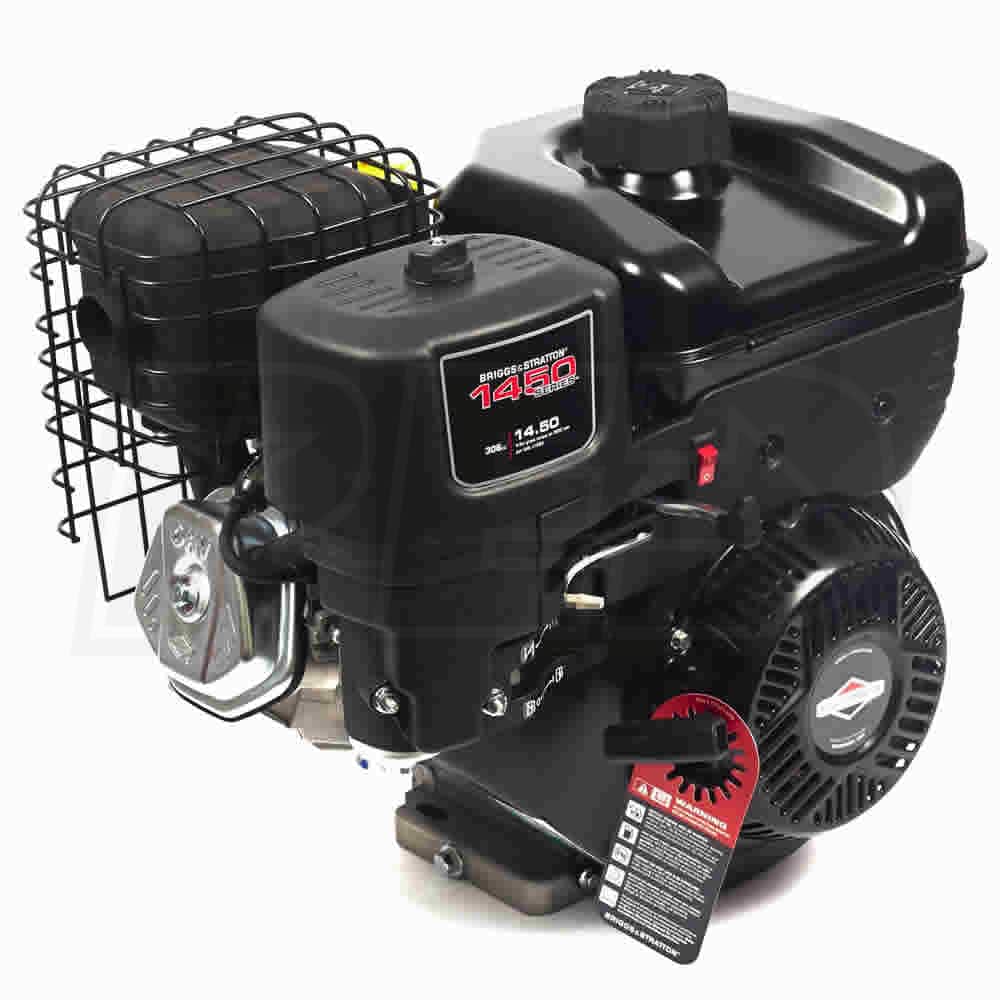

Briggs & Stratton 1450 Series 306cc OHV Horizontal Engine, 3/4" x 2.51" Crankshaft, Tapped 3/8-24, 3/16" Keyway

Model:

19N132-0051-F1

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Briggs & Stratton 1450 Series 306cc OHV Horizontal Engine, 3/4
Briggs & Stratton 1450 Series 306cc OHV Horizontal Engine, 3/4" x 2.51" Crankshaft, Tapped 3/8-24, 3/16" Keyway
Model: 19N132-0051-F1
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

  • Model# 19N132-0051-F1 - 3/4" x 2.51" Crankshaft, Tapped 3/8-24, 3/16" Keyway
  • Utility / General applications like log splitters, pressure washers, compressors, tillers & blowers
  • Perfect engine replacement for Troy-Bilt Horse tiller
  • Briggs & Stratton 1450 Series™ Single Cylinder Air-Cooled 4-Cycle Gas Engine
  • Produces 14.50 ft-lbs of torque* - Power levels are stated gross torque per SAE J1940
  • Overhead Valve (OHV) Technology
  • More power, less fuel-use & lower emmisions; Runs cooler for longer engine life
  • Dura-Bore™ Cast Iron Cylinder Sleeve
  • Keeps the engine running cooler for maximum productivity
  • DuraLube™ Splash Lubrication System
  • Gear-driven system keeps engine well oiled for continuous protection
  • High Capacity Dual-Clean™ Commercial-Style Air Cleaner
  • Industrial pleated paper w/ foam pre-cleaner for demanding applications
  • Float-Feed Carburetor & Mechanical Governor
  • Allows for fast fuel delivery for reliable starting and operation
  • Increases throttle response to maximize usable power for higher torque applications
  • Recoil-Starter w/ Automatic Compression Release
  • Requires less effort so you can enjoy 1-2 pull starts
  • Includes Muffler & Fuel Tank
  • 2-Year Consumer Warranty & 1-Year Commercial Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

19N132-0051-F1
specs product image PID-73311
Engine
Engine Series
1450 Series
Engine Style
Horizontal
Engine Type
4-Cycle OHV
Cylinders
1
Cooling System
Air
Dry Weight
65 Lbs
CC
306 CCs
Max Torque
14.50 Lbs
Cylinder Bore Type
Cast Iron
Bore
3.22 Inches
Stroke
2.28 Inches
CARB
Yes
Systems
Starting System
Recoil Only
Ignition System
Electronic Spark
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
37 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Included
Air Cleaner
Dual Element
Fuel Tank Size
0.8 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
3/4 x 2-1/2 Inches
Crankshaft Type
Straight
Crankshaft Diameter
3/4"
Crankshaft Length
2.51"
Crankshaft End Tapped Size
3/8"-24
Crankshaft Keyway Width
3/16 Inches
PTO Height
5.25 Inches
Overview
Weight
65 Pounds
Consumer Warranty
2 Years
Commercial Warranty
1 Year
