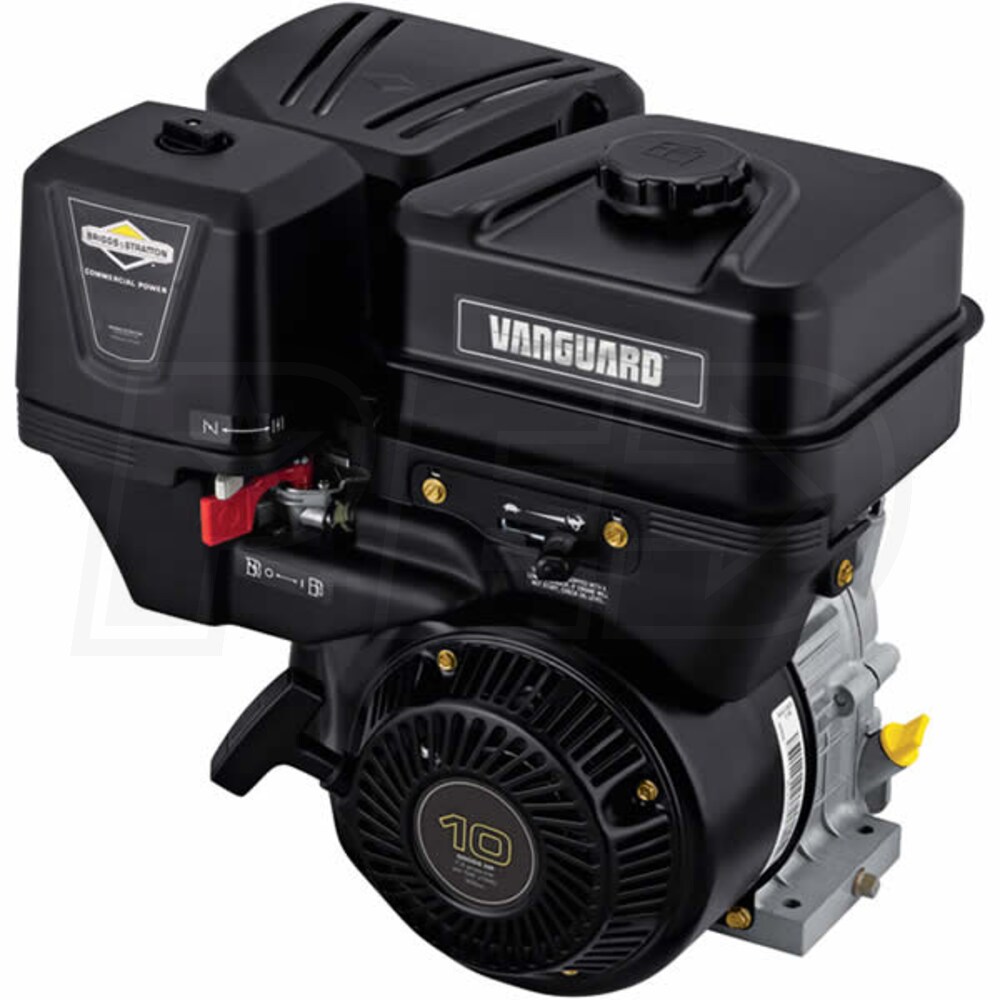

Briggs & Stratton 19L232-0037-F1 - 305cc 10HP Vanguard™ OHV Horizontal Engine, 1" x 3-21/32" CS, Tapped 3/8"-24, 1/4" Keyway
Briggs & Stratton 19L232-0037-F1 - 305cc 10HP Vanguard™ OHV Horizontal Engine, 1" x 3-21/32" CS, Tapped 3/8"-24, 1/4" Keyway
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Features
Features
- 19L232-0037-F1 - 1" x 3-21/32" Crankshaft, Tapped 3/8"-24, 1/4" Keyway
- Premium-Grade Vanguard™ 10 HP* Single Cylinder Air-Cooled 4-Cycle Gas Engine
- High-performance commercial engine rated in accordance with SAE J1995
- Overhead Valve (OHV) Technology
- More power, less fuel-use & lower emmisions; Runs cooler for longer engine life
- Dura-Bore™ Cast Iron Cylinder Sleeve
- Assures long engine life and improved oil control
- Commercial-Style Float Carburetor w/ Sediment Filter
- Proven-design for consitent starting, smoother operation & easy maintenance
- Splash Lubrication System w/ Racing Designed Connecting Rod
- Provides improved oil flow for better internal component protection
- High Capacity Dual-Clean™ Commercial Air Cleaner
- Industrial pleated paper w/ foam pre-cleaner for demanding applicatins
- Magnetron® Electronic Ignition
- Maintenance-free design, plus larger ignition coil for easy dependable starting
- TransportGuard™ System - Simultaneous Fuel/Ignition Shut-Off
- Protects the engine from oil/fuel dilution during transport
- Acoustically Designed Muffler System
- Less noise keeps you working longer on the jobsite or in the yard
- 3-Year Commercial Warranty
Specifications
Engine
Engine Series
B&S Vanguard
Engine Style
Horizontal
Engine Type
4-Cycle OHV
Cylinders
1
Cooling System
Air
Dry Weight
57 Lbs
CC
305 CCs
HP
10 HP
Cylinder Bore Type
Cast Iron
Bore
3.12 Inches
Stroke
2.44 Inches
Compression Ratio
8.1:1
Systems
Starting System
Recoil Only
Ignition System
Electronic Spark
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
28 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Included
Air Cleaner
Dual Element
Fuel Tank Size
0.95 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1 x 3-21/32 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1"
Crankshaft Length
3-21/32"
Crankshaft End Tapped Size
7/16"-20
Crankshaft Keyway Width
1/4 Inch
PTO Height
4.17 Inches
Overview
Consumer Warranty
3 Years
Commercial Warranty
3 Years
UPC
024847188745
