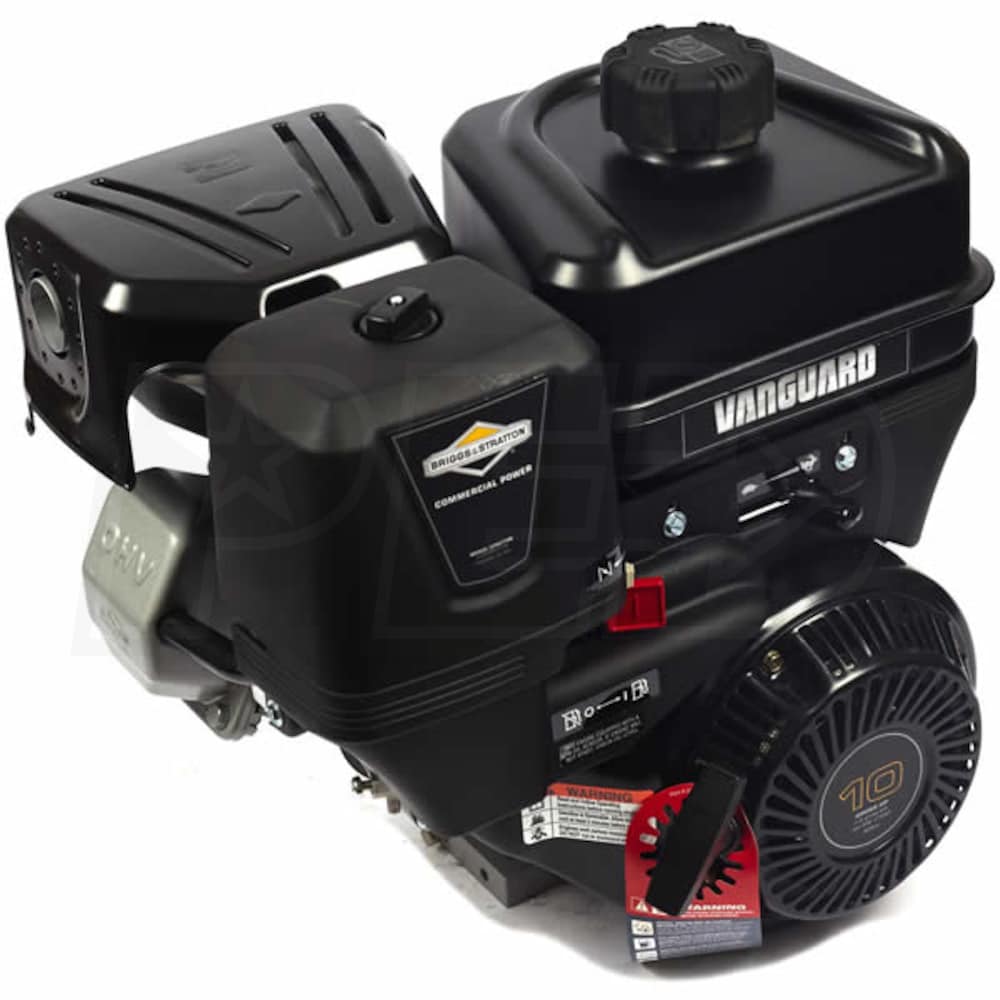

Briggs & Stratton 19L232-0036-F1 - 305cc 10HP Vanguard™ OHV Horizontal Engine, 1" x 2-29/32" Keyway Crankshaft

Model:

19L232-0036-F1

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Briggs & Stratton 19L232-0036-F1 - 305cc 10HP Vanguard™ OHV Horizontal Engine, 1
Briggs & Stratton 19L232-0036-F1 - 305cc 10HP Vanguard™ OHV Horizontal Engine, 1" x 2-29/32" Keyway Crankshaft
Model: 19L232-0036-F1
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

  • Model # 19L232-0036-F1 - 1" x 2-29/32" Keyway Crankshaft, Tapped 3/8-24, 1/4" Keyway
  • Premium-Grade Vanguard™ 10 HP* Single Cylinder Air-Cooled 4-Cycle Gas Engine
  • High-performance commercial engine rated in accordance with SAE J1995
  • Overhead Valve (OHV) Technology
  • More power, less fuel-use & lower emmisions; Runs cooler for longer engine life
  • Dura-Bore™ Cast Iron Cylinder Sleeve
  • Assures long engine life and improved oil control
  • Commercial-Style Float Carburetor w/ Sediment Filter
  • Proven-design for consitent starting, smoother operation & easy maintenance
  • Splash Lubrication System w/ Racing Designed Connecting Rod
  • Provides improved oil flow for better internal component protection
  • High Capacity Dual-Clean™ Commercial Air Cleaner
  • Industrial pleated paper w/ foam pre-cleaner for demanding applicatins
  • Magnetron® Electronic Ignition
  • Maintenance-free design, plus larger ignition coil for easy dependable starting
  • TransportGuard™ System - Simultaneous Fuel/Ignition Shut-Off
  • Protects the engine from oil/fuel dilution during transport
  • Acoustically Designed Muffler System
  • Less noise keeps you working longer on the jobsite or in the yard
  • 3-Year Commercial Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

19L232-0036-F1
specs product image PID-65659
Engine
Engine Series
B&S Vanguard
Engine Style
Horizontal
Engine Type
4-Cycle OHV
Cylinders
1
Cooling System
Air
Dry Weight
57 Lbs
CC
305 CCs
HP
10 HP
Cylinder Bore Type
Cast Iron
Bore
3.12 Inches
Stroke
2.44 Inches
Compression Ratio
8.1:1
Systems
Starting System
Recoil Only
Ignition System
Electronic Spark
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
28 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Included
Air Cleaner
Dual Element
Fuel Tank Size
0.95 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1 x 2-29/32 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1"
Crankshaft Length
2-29/32"
Crankshaft End Tapped Size
3/8"-24
Crankshaft Keyway Width
1/4 Inch
PTO Height
4.17 Inches
Overview
Consumer Warranty
3 Years
Commercial Warranty
3 Years
UPC
024847188738
