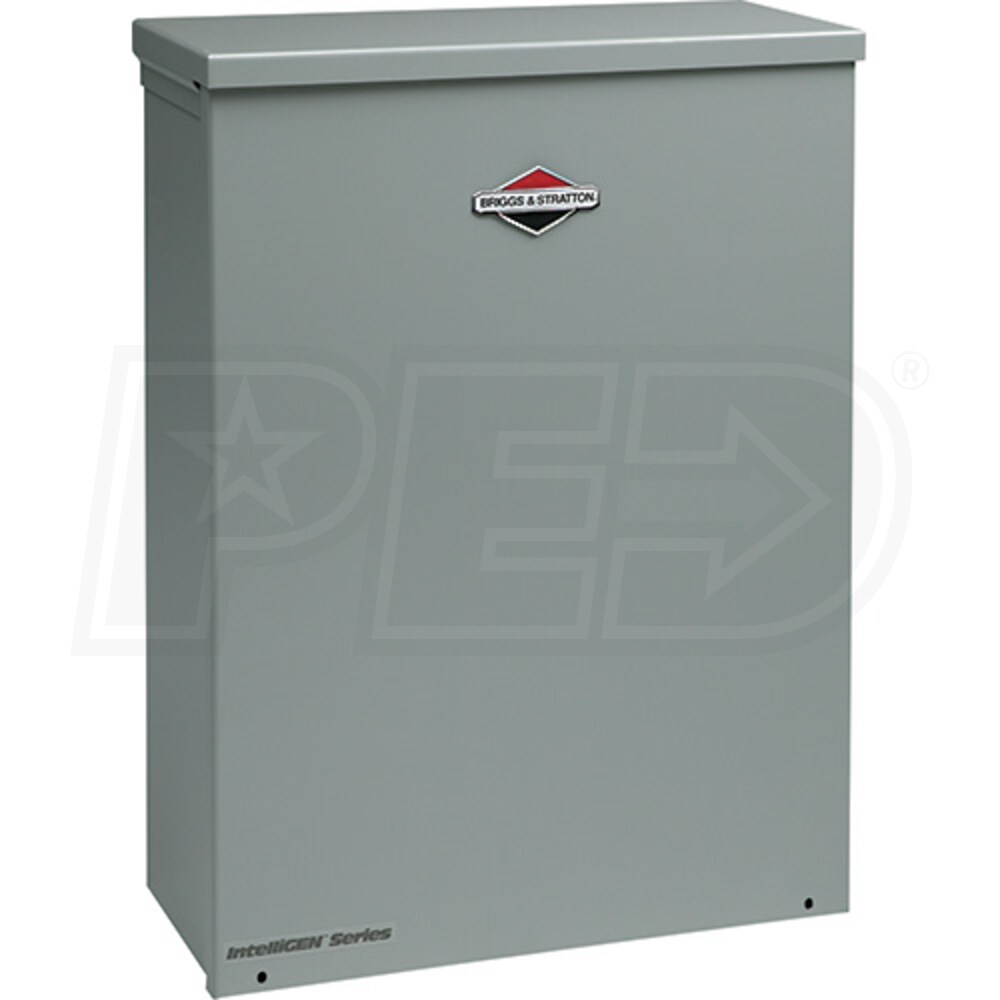

Briggs & Stratton 50-Amp Automatic Transfer Switch w/ 10-Circuit Load Center
Model: 1918
+
Share This Product
-
Product Description
-
2Reviews
-
1Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Type

Amp Rating
50
Circuits
10
Enclosure

Type
Load Center
Circuits
10
Enclosure
NEMA 3R
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Maximum Safety, Comfort and Efficiency
- Eliminates dangerous backfeeds and electrical overloads
- Recommended for 7-10kW EmPower generators
- Rated at 50-Amps @240V
- Select Circuit Installation (10 Circuits)
- Customize your installation to back-up priority loads
- Nema 3R Enclosure
- Offers flexible installation locations
- UL1008 Listed
- Pre-Wired Circuits
- 5 - 15A - 120V
- 3 - 20A - 120V
- 1 - 20A - 240V
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
10000 Watts
Rated Amps
50 Amps
Transfer Switch Amperage
50-Amps
Enclosure
NEMA 3R
Number of Circuit Breakers
10
Transfer Switch Style
Select Circuit
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Not Compatible
ATS Poles
2 Poles
ATS Service Disconnect
No
Max Utility Input
10000 Amps
Max Generator Input
10000 Amps
Maximum Wattage
10000 Watts
UL Listed
Yes
Overview
Weight
29 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Length
14.25 Inches
Product Width
6 Inches
Product Height
21 Inches
UPC
011675019181
Transfer Switch Circuits
15A 120V
5
20A 120V
3
20A 240V
1
Circuit Breaker Protection
Each Circuit
Type

Amp Rating
50
Circuits
10
Enclosure

Type
Load Center
Circuits
10
Enclosure
NEMA 3R
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Maximum Safety, Comfort and Efficiency
- Eliminates dangerous backfeeds and electrical overloads
- Recommended for 7-10kW EmPower generators
- Rated at 50-Amps @240V
- Select Circuit Installation (10 Circuits)
- Customize your installation to back-up priority loads
- Nema 3R Enclosure
- Offers flexible installation locations
- UL1008 Listed
- Pre-Wired Circuits
- 5 - 15A - 120V
- 3 - 20A - 120V
- 1 - 20A - 240V
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
10000 Watts
Rated Amps
50 Amps
Transfer Switch Amperage
50-Amps
Enclosure
NEMA 3R
Number of Circuit Breakers
10
Transfer Switch Style
Select Circuit
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Not Compatible
ATS Poles
2 Poles
ATS Service Disconnect
No
Max Utility Input
10000 Amps
Max Generator Input
10000 Amps
Maximum Wattage
10000 Watts
UL Listed
Yes
Overview
Weight
29 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Length
14.25 Inches
Product Width
6 Inches
Product Height
21 Inches
UPC
011675019181
Transfer Switch Circuits
15A 120V
5
20A 120V
3
20A 240V
1
Circuit Breaker Protection
Each Circuit
Product Specs
+−
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
10000 Watts
Rated Amps
50 Amps
Transfer Switch Amperage
50-Amps
Enclosure
NEMA 3R
Number of Circuit Breakers
10
Transfer Switch Style
Select Circuit
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Not Compatible
ATS Poles
2 Poles
ATS Service Disconnect
No
Max Utility Input
10000 Amps
Max Generator Input
10000 Amps
Maximum Wattage
10000 Watts
UL Listed
Yes
Overview
Weight
29 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Length
14.25 Inches
Product Width
6 Inches
Product Height
21 Inches
UPC
011675019181
Transfer Switch Circuits
15A 120V
5
20A 120V
3
20A 240V
1
Circuit Breaker Protection
Each Circuit
Product Q&A
(1)
+−

Search Product Q&A's
Answered by Jared, the Generator Expert
+−
Can this Briggs & Stratton 50-Amp ATS be used with a Honeywell HW7500E Portable Generator.
Mike
from New York
February 08, 2011
Answer
Automatic transfer switches are not designed to be used with portable generators.
Was this answer helpful?
Yes

0
No

0
