Briggs & Stratton 15T237-0050-F8
Briggs & Stratton 15T237-0050-F8
Hover to zoom
1 Of 5

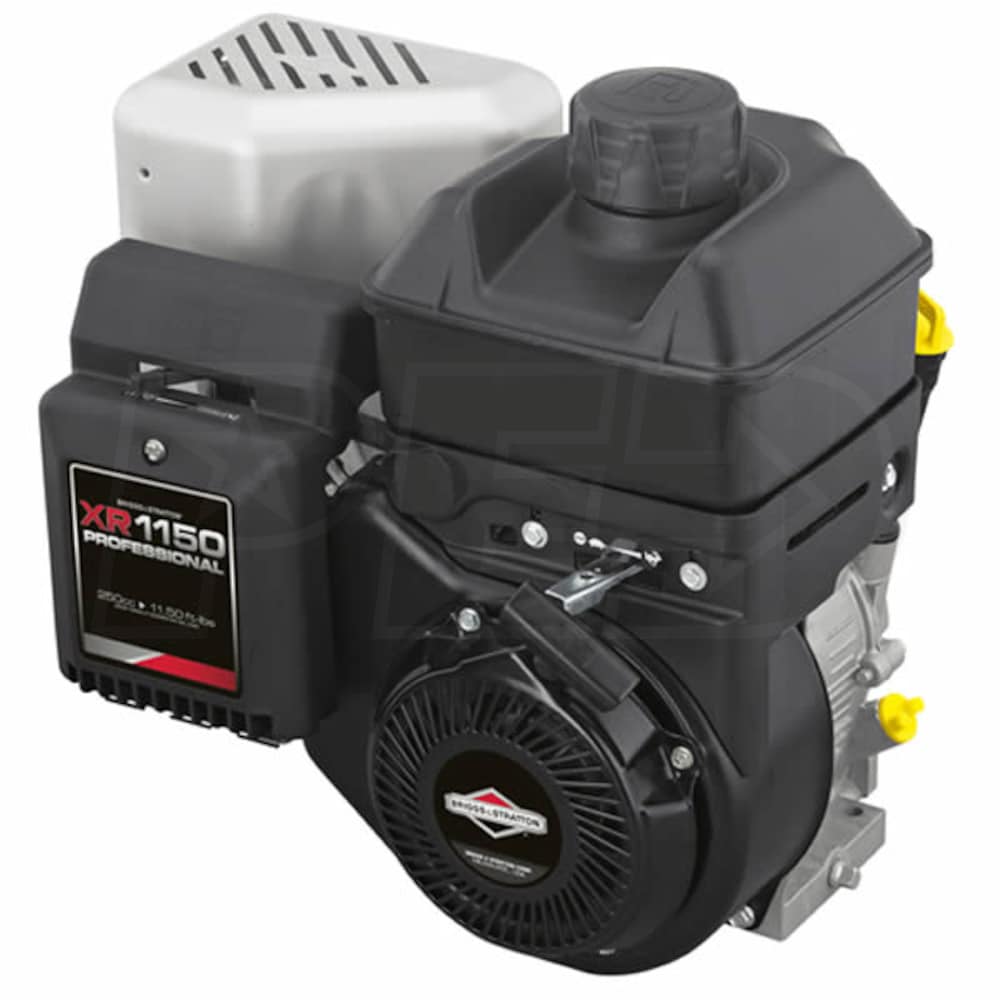

Briggs & Stratton 1150 XR Series™ 250cc Electric Start Horizontal Engine, 3/4" x 2-7/16" Crankshaft, Tapped 5/16"-24, 3/16 Keyway
Model: 15T237-0050-F8
No RatingNo RatingNo RatingNo RatingNo Rating
Number of Reviews(0)
Write a Review
$659.99
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping to60601
Shipping Details
  • Free to Lower 48 States
*We currently CANNOT ship this product to Alaska, California, Hawaii or any destination outside of the United States

Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+

Features
Features
  • Model# 15T237-0050-F8 - 3/4" x 2-7/16" Crankshaft, Tapped 5/16"-24, 3/16 Keyway
  • For ultility applications like tillers, log splitters, pressure washers etc.
  • Briggs & Stratton 1150 XR Series™ Single Cylinder Air-Cooled 4-Cycle Gas Engine
  • Produces 11.5 ft-lbs of torque* - Power levels are stated gross torque per SAE J1940
  • Overhead Valve (OHV) Technology
  • More power, less fuel-use & lower emmisions; Runs cooler for longer engine life
  • Aluminum-Alloy Kool Bore™ Engineering & DuraLube™ Splash Lubrication System
  • Keeps the engine running cooler for maximum productivity
  • Gear-driven system keeps engine well oiled for continous protection
  • Float-Feed Carburetor & Mechanical Governor
  • Allows for fast fuel delivery for reliable starting and operation
  • Increases throttle response to maximize usable power for higher torque applications
  • Magnetron® Electronic Ignition System
  • Extremely reliable design, for consistent starting while being maintenance-free
  • Dual-Clean™ Premium Air Filter
  • Cartridge design w/ foam pre-cleaner keep more debris out of the engine
  • Recoil-Starter w/ Automatic Compression Release
  • Requires less effort so you can enjoy 1-2 pull starts
  • Includes Muffler & Fuel Tank
  • 2-Year Consumer Warranty & 90-Day Commercial Warranty
Specifications
Engine
Engine Series
B&S XR Professional Series
Engine Style
Horizontal
Engine Type
4-Cycle OHV
Cylinders
1
Cooling System
Air
Dry Weight
40 Lbs
CC
250 CCs
Max Torque
11.50 Lbs
Cylinder Bore Type
Aluminum
Bore
2.97 Inches
Stroke
2.20 Inches
CARB
No
Systems
Charging System
1.5 Amps
Starting System
12-Volt w/ Recoil Backup
Ignition System
Electronic Spark
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
28 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Included
Air Cleaner
Dual Element
Fuel Tank Size
0.75 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
3/4 x 2-7/16 Inches
Crankshaft Type
Straight
Crankshaft Diameter
3/4"
Crankshaft Length
2-7/16"
Crankshaft End Tapped Size
5/16"-24
Crankshaft Keyway Width
3/16 Inches
PTO Height
4.17 Inches
Overview
Weight
40 Pounds
Consumer Warranty
2 Years
Commercial Warranty
90 Days
Product Length
14.46 Inches
Product Width
10.95 Inches
Product Height
15.55 Inches
UPC
024847113693

Features
Features
  • Model# 15T237-0050-F8 - 3/4" x 2-7/16" Crankshaft, Tapped 5/16"-24, 3/16 Keyway
  • For ultility applications like tillers, log splitters, pressure washers etc.
  • Briggs & Stratton 1150 XR Series™ Single Cylinder Air-Cooled 4-Cycle Gas Engine
  • Produces 11.5 ft-lbs of torque* - Power levels are stated gross torque per SAE J1940
  • Overhead Valve (OHV) Technology
  • More power, less fuel-use & lower emmisions; Runs cooler for longer engine life
  • Aluminum-Alloy Kool Bore™ Engineering & DuraLube™ Splash Lubrication System
  • Keeps the engine running cooler for maximum productivity
  • Gear-driven system keeps engine well oiled for continous protection
  • Float-Feed Carburetor & Mechanical Governor
  • Allows for fast fuel delivery for reliable starting and operation
  • Increases throttle response to maximize usable power for higher torque applications
  • Magnetron® Electronic Ignition System
  • Extremely reliable design, for consistent starting while being maintenance-free
  • Dual-Clean™ Premium Air Filter
  • Cartridge design w/ foam pre-cleaner keep more debris out of the engine
  • Recoil-Starter w/ Automatic Compression Release
  • Requires less effort so you can enjoy 1-2 pull starts
  • Includes Muffler & Fuel Tank
  • 2-Year Consumer Warranty & 90-Day Commercial Warranty
Specifications
Engine
Engine Series
B&S XR Professional Series
Engine Style
Horizontal
Engine Type
4-Cycle OHV
Cylinders
1
Cooling System
Air
Dry Weight
40 Lbs
CC
250 CCs
Max Torque
11.50 Lbs
Cylinder Bore Type
Aluminum
Bore
2.97 Inches
Stroke
2.20 Inches
CARB
No
Systems
Charging System
1.5 Amps
Starting System
12-Volt w/ Recoil Backup
Ignition System
Electronic Spark
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
28 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Included
Air Cleaner
Dual Element
Fuel Tank Size
0.75 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
3/4 x 2-7/16 Inches
Crankshaft Type
Straight
Crankshaft Diameter
3/4"
Crankshaft Length
2-7/16"
Crankshaft End Tapped Size
5/16"-24
Crankshaft Keyway Width
3/16 Inches
PTO Height
4.17 Inches
Overview
Weight
40 Pounds
Consumer Warranty
2 Years
Commercial Warranty
90 Days
Product Length
14.46 Inches
Product Width
10.95 Inches
Product Height
15.55 Inches
UPC
024847113693
Product Specs
+
Specifications
Engine
Engine Series
B&S XR Professional Series
Engine Style
Horizontal
Engine Type
4-Cycle OHV
Cylinders
1
Cooling System
Air
Dry Weight
40 Lbs
CC
250 CCs
Max Torque
11.50 Lbs
Cylinder Bore Type
Aluminum
Bore
2.97 Inches
Stroke
2.20 Inches
CARB
No
Systems
Charging System
1.5 Amps
Starting System
12-Volt w/ Recoil Backup
Ignition System
Electronic Spark
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
28 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Included
Air Cleaner
Dual Element
Fuel Tank Size
0.75 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
3/4 x 2-7/16 Inches
Crankshaft Type
Straight
Crankshaft Diameter
3/4"
Crankshaft Length
2-7/16"
Crankshaft End Tapped Size
5/16"-24
Crankshaft Keyway Width
3/16 Inches
PTO Height
4.17 Inches
Overview
Weight
40 Pounds
Consumer Warranty
2 Years
Commercial Warranty
90 Days
Product Length
14.46 Inches
Product Width
10.95 Inches
Product Height
15.55 Inches
UPC
024847113693
