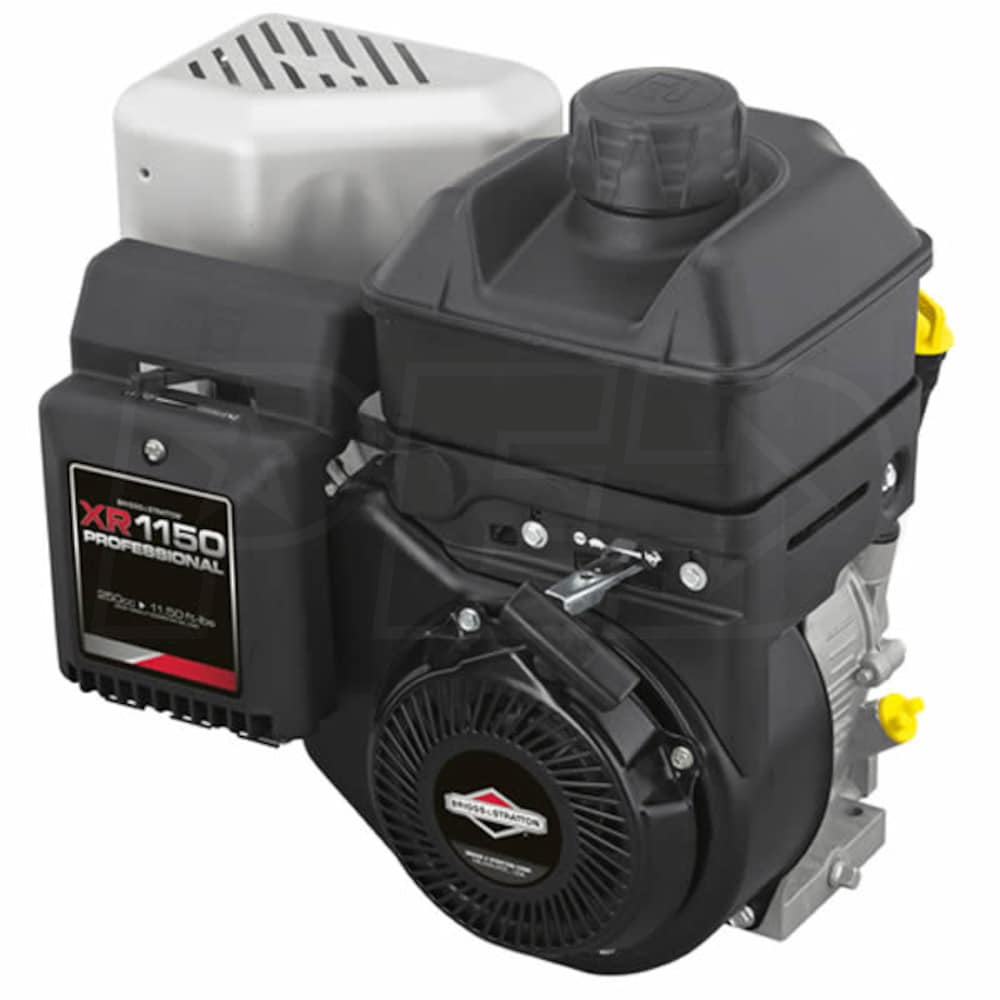

Briggs & Stratton 1150 XR Series™ 250cc Horizontal Engine, 3/4" x 2-7/16" Crankshaft, Tapped 5/16"-24, 3/16 Keyway

Briggs & Stratton 1150 XR Series™ 250cc Horizontal Engine, 3/4" x 2-7/16" Crankshaft, Tapped 5/16"-24, 3/16 Keyway
Model: 15T212-0223-F8
$439.99
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping &
Tax-Free (Except IL)
Free ShippingNo Sales Tax* (Except IL)$439.99Buy Now
No Sales Tax* (Except IL)$439.99Visit Site
Factory-Direct
Ships in 2-5 Business Days
Enter your ZIP Code below to see an estimated arrival time of delivery to your home or business.
*We currently CANNOT ship this product to Alaska, California, Hawaii or any destination outside of the United States
Free Shipping
Free Shipping
  • Product Description
  • Reviews
  • Product Q&A
  • How-To Articles
  • Manuals
Product Description
+

Features
Features
  • Model# 15T212-0223-F8 - 3/4" x 2-7/16" Crankshaft, Tapped 5/16"-24, 3/16 Keyway
  • For ultility applications like tillers, log splitters, pressure washers etc.
  • Briggs & Stratton 1150 XR Series™ Single Cylinder Air-Cooled 4-Cycle Gas Engine
  • Produces 11.5 ft-lbs of torque* - Power levels are stated gross torque per SAE J1941
  • Overhead Valve (OHV) Technology
  • More power, less fuel-use & lower emmisions; Runs cooler for longer engine life
  • Aluminum-Alloy Kool Bore™ Engineering & DuraLube™ Splash Lubrication System
  • Keeps the engine running cooler for maximum productivity
  • Gear-driven system keeps engine well oiled for continous protection
  • Float-Feed Carburetor & Mechanical Governor
  • Allows for fast fuel delivery for reliable starting and operation
  • Increases throttle response to maximize usable power for higher torque applications
  • Magnetron® Electronic Ignition System
  • Extremely reliable design, for consistent starting while being maintenance-free
  • Dual-Clean™ Premium Air Filter
  • Cartridge design w/ foam pre-cleaner keep more debris out of the engine
  • Recoil-Starter w/ Automatic Compression Release
  • Requires less effort so you can enjoy 1-2 pull starts
  • Includes Muffler & Fuel Tank
  • 2-Year Consumer Warranty & 90-Day Commercial Warranty
Specifications
Engine
Engine Series
B&S XR Professional Series
Engine Style
Horizontal
Cylinders
1
Engine Type
4-Cycle OHV
Cooling System
Air
Dry Weight
40 Lbs
CC
250 CCs
Max Torque
11.50 Lbs
Cylinder Bore Type
Aluminum
Bore
2.97 Inches
Stroke
2.20 Inches
CARB
No
Systems
Starting System
Recoil Only
Ignition System
Electronic Spark
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
28 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Included
Air Cleaner
Dual Element
Fuel Tank Size
0.75 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
3/4" x 2-7/16 Inches
Crankshaft Type
Straight
Crankshaft Diameter
3/4"
Crankshaft Length
2-7/16"
Crankshaft End Tapped Size
5/16"-24
Crankshaft Keyway Width
3/16 Inches
PTO Height
4.17 Inches
Overview
Made in USA
Yes
Weight
40 Pounds
Product Length
14.46 Inches
Product Width
10.95 Inches
Product Height
15.55 Inches
Consumer Warranty
2 Years
Commercial Warranty
90 Days
UPC
024847169003
