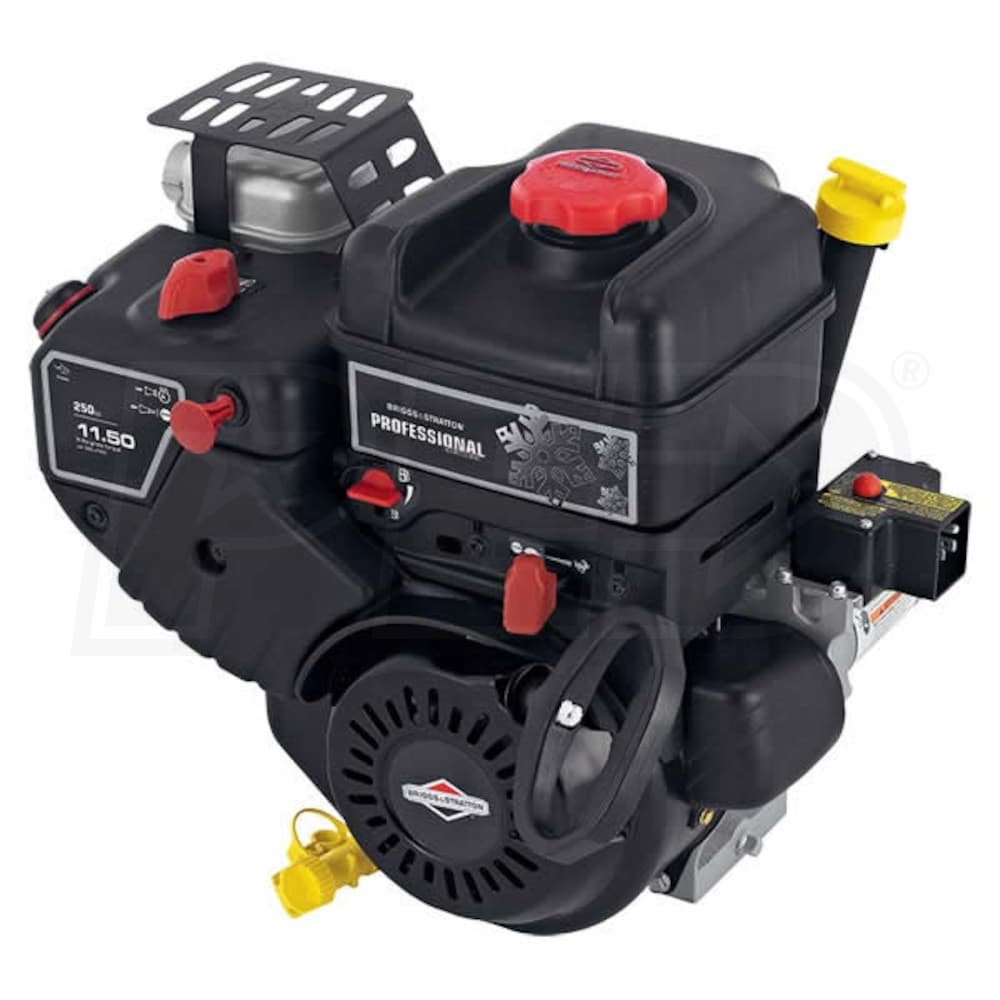

Briggs & Stratton Professional Snow Series 250cc Horizontal Engine, 3/4" x 2-7/16" Crankshaft, Tapped 5/16"-24, 3/16" Keyway
Briggs & Stratton Professional Snow Series 250cc Horizontal Engine, 3/4" x 2-7/16" Crankshaft, Tapped 5/16"-24, 3/16" Keyway
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Features
Features
- Model# 15C107-0019-F8 - 3/4" x 2-7/16" Crankshaft, Tapped 5/16"-24, 3/16" Keyway
- For use on snow blowers/throwers
- Briggs & Stratton Professional Snow Series Single Cylinder Air-Cooled 4-Cycle Gas Engine
- Produces 11.5 ft-lbs of torque* - Power levels are stated gross torque per SAE J1995
- Overhead Valve (OHV) Technology
- More power, less fuel-use & lower emmisions
- Runs cooler for longer engine and valve life
- Qualified To Start Down To -20 Degrees Fahrenheit
- No need to worry about the engine starting even on the coldest winter days
- Specially-Designed Covers And Recoil
- Provides protection in cold weather
- Super Lo-Tone Muffler
- Quiet operation to not disturb your neighbors
- Aluminized Or Coated Mufflers
- Resist corrosion for longer life
- Provide quiet operations
- Oversized Controls
- Easy starting and operation with gloves or mittens
- No need to sacrifice cold hands to operate engine
- 110-Volt Gear Drive Starter With 1.5 AMP DC Alternator
- Recoil back up included
- 2-Year Consumer Warranty
Specifications
Engine
Engine Series
B&S Snow Series Pro
Engine Style
Horizontal
Cylinders
1
Engine Type
4-Cycle OHV
Cooling System
Air
Dry Weight
42 Lbs
CC
250 CCs
Max Torque
11.50 Lbs
Cylinder Bore Type
Aluminum
Bore
2.97 Inches
Stroke
2.20 Inches
CARB
Yes
Systems
Charging System
1.5 DC Amps
Starting System
120-Volt Electric Start w/ Recoil Backup
Ignition System
Electronic Spark
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
20 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Included
Fuel Tank Size
0.8 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
3/4" x 2-7/16" Inches
Crankshaft Type
Straight
Crankshaft Diameter
3/4"
Crankshaft Length
2-7/16"
Crankshaft End Tapped Size
5/16"-24
Crankshaft Keyway Width
3/16 Inches
PTO Height
4.17 Inches
Overview
Made in USA
Yes
Weight
42 Pounds
Product Length
10.59 Inches
Product Width
17.928 Inches
Product Height
15.26 Inches
Consumer Warranty
2 Years
Commercial Warranty
90 Days
UPC
047282055496
