Briggs & Stratton 14D932-0115-F1
Briggs & Stratton 14D932-0115-F1
Hover to zoom
1 Of 5

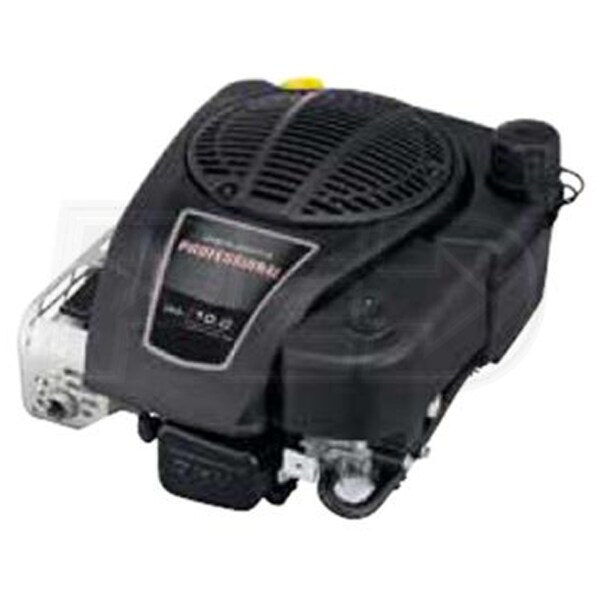

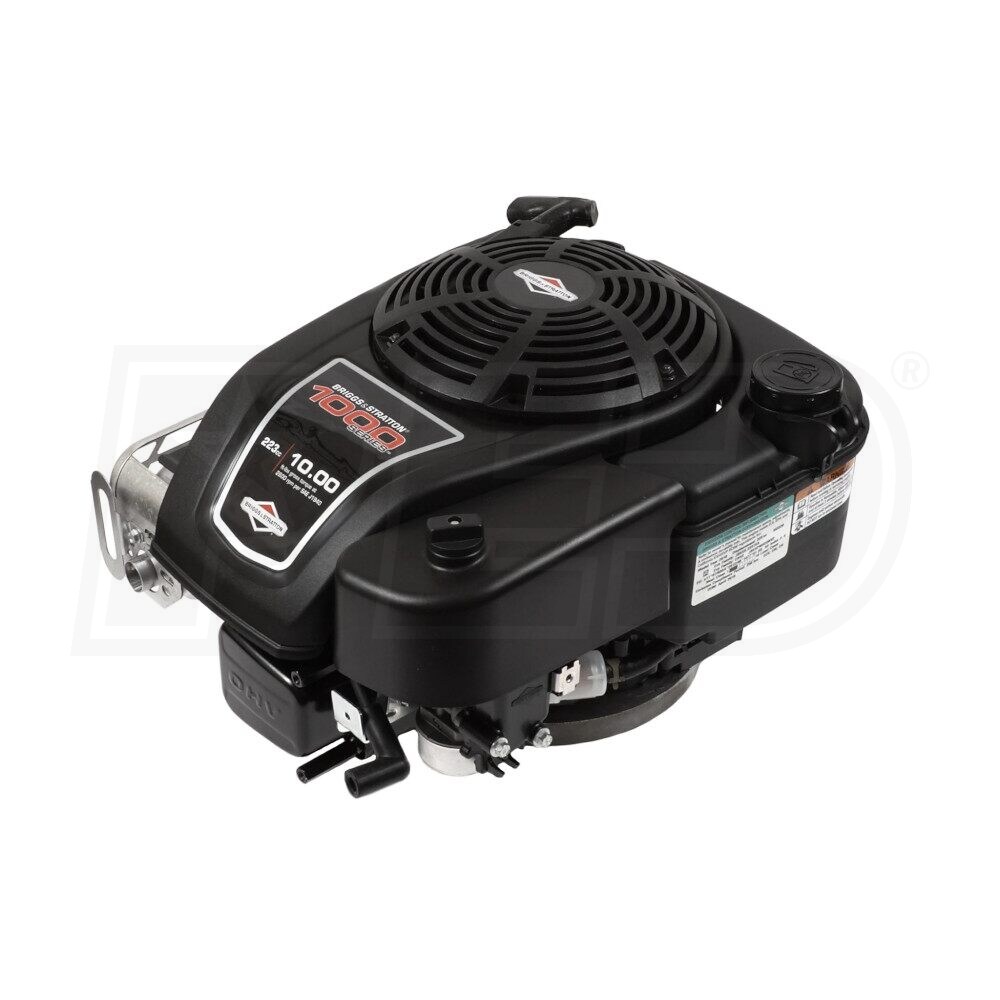

Briggs & Stratton Professional Series 223cc Vertical Engine w/ Heavy Flywheel, 25mm x 3-5/32" Crankshaft, Tapped 7/16"-20, 3/16" Straight Keyway

Model:

14D932-0115-F1

Write a Review
$289.99
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships from Briggs & Stratton
Shipping to60601
Shipping Details
  • Free to Lower 48 States
*We currently CANNOT ship this product to Alaska, Hawaii, California or any destination outside of the United States

Available Add-Ons
Briggs & Stratton Professional Series 223cc Vertical Engine w/ Heavy Flywheel, 25mm x 3-5/32
Briggs & Stratton Professional Series 223cc Vertical Engine w/ Heavy Flywheel, 25mm x 3-5/32" Crankshaft, Tapped 7/16"-20, 3/16" Straight Keyway
Model: 14D932-0115-F1
$289.99
Features
Specifications
Reviews
How-To Articles
Share

Features

  • Model# 14D932-0115-F1; 25mm x 3-5/32" Crankshaft, Tapped 7/16"-20, 3/16" Straight Keyway
  • For use on Toro Timemaster mowers
  • Briggs & Stratton 1000 Series 4-Cycle Gas Engine
  • Simple design with professional-grade features
  • 223cc with 10 lbs/ft torque*- Power levels are stated gross torque per SAE J1940
  • Overhead Valve (OHV) Technology
  • Durable, powerful, efficient, and quiet
  • Overhead valve design decreases carbon deposits
  • Commercial-Grade Air Filter
  • Dual-filter reduces intake of harmful yard debris
  • Great for dusty conditions and extends engine life
  • ReadyStart™
  • Requires no prime and no choke
  • Simply pull to power your machine
  • Float Carburetor
  • Starts easily when engine is cold and/or hot
  • Mechanical Governor
  • Uses flyweight to balance crankshaft speed
  • Auto-detects changes in engine load and adjusts RPMs accordingly
  • No Oil Change Required*
  • OHV reduces oil temperature, which increases longevity of oil
  • Air tight filter and extended oil fill tube keeps debris out of oil
  • Super Lo-Tone™
  • Reduces exhaust noise; great for early risers
  • 2-Year Consumer & 90-Day Commercial Warranty
  • Made in the United States of America

Specifications

14D932-0115-F1
Engine
Engine Series
B&S Professional Series
Engine Style
Vertical
Engine Type
4-Cycle OHV
Cylinders
1
Cooling System
Air
Dry Weight
31 Lbs
CC
223 CCs
Max Torque
10.00 Lbs
Cylinder Bore Type
Aluminum
Bore
2.91 Inches
Stroke
2.04 Inches
CARB
Yes
Systems
Starting System
Recoil Only
Ignition System
Electronic Spark
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
20 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Not Included
Air Cleaner
Dual Element
Fuel Tank Size
0.3 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
25mm x 3-5/32 Inches
Crankshaft Type
Straight
Crankshaft Diameter
25 mm
Crankshaft Length
3-5/32"
Crankshaft End Tapped Size
7/16"-20
Crankshaft Keyway Width
3/16 Inches
Overview
Weight
31 Pounds
Consumer Warranty
2 Years
Commercial Warranty
90 Days
Product Length
15.8 Inches
Product Width
13.4 Inches
Product Height
10.1 Inches
UPC
047282124611
