Briggs & Stratton 13R232-0001-F1
Briggs & Stratton 13R232-0001-F1
Hover to zoom
1 Of 5

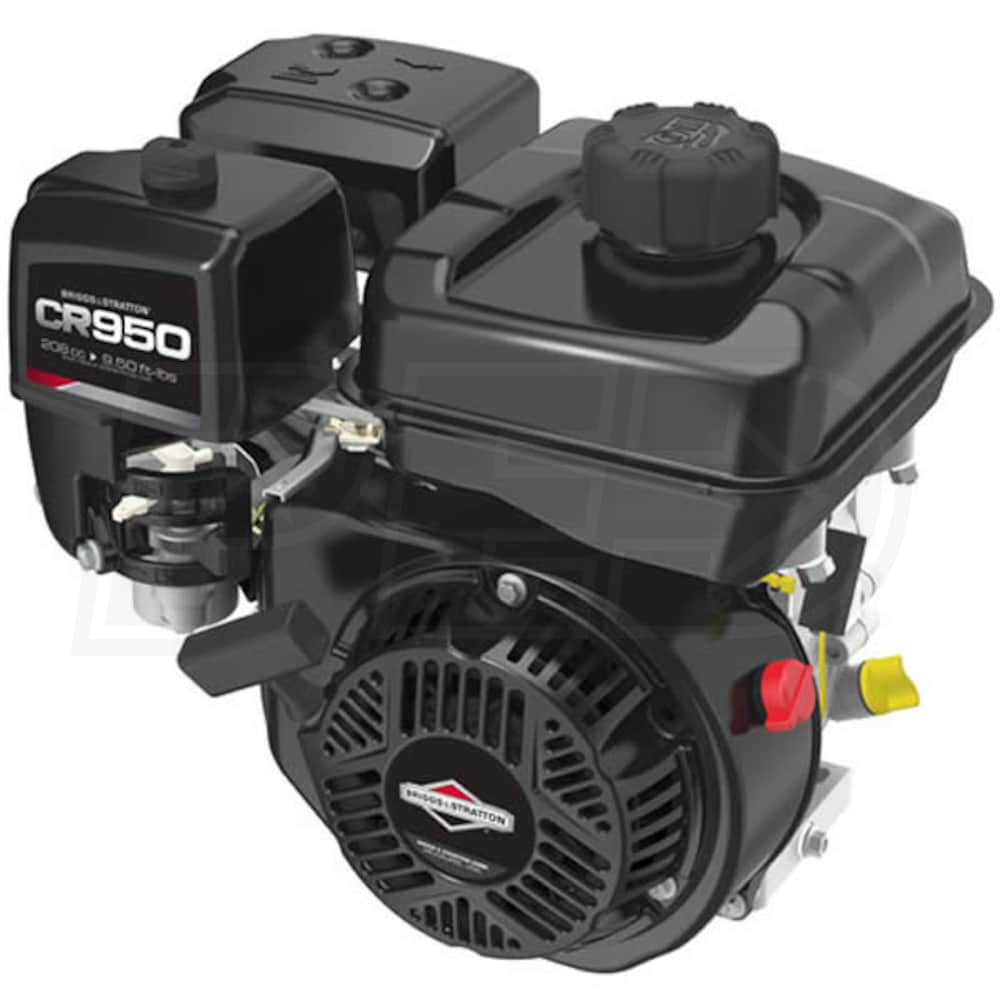

Briggs & Stratton CR950 208cc Horizontal Engine, 3/4" x 2-27/64" Crankshaft, Tapped 5/16-24

Model:

13R232-0001-F1

Write a Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Briggs & Stratton CR950 208cc Horizontal Engine, 3/4
Briggs & Stratton CR950 208cc Horizontal Engine, 3/4" x 2-27/64" Crankshaft, Tapped 5/16-24
Model: 13R232-0001-F1
Product Discontinued
Features
Specifications
Reviews
Accessories
How-To Articles
Manuals
Share

Features

  • Model 13R232-0001-F1 - 3/4" x 2-27/64" Crankshaft w/ PTO Ball Bearing
  • Utility / General applications like log splitters, pressure washers, compressors & tillers
  • Great for occasional use in many applications are the yard
  • Briggs & Stratton CR950 Series™ Single Cylinder Air-Cooled 4-Cycle Gas Engine
  • Produces 9.50 ft-lbs of torque* - Power levels are stated gross torque per SAE J1940
  • Overhead Valve (OHV) Technology
  • More power, less fuel-use & lower emmisions; Runs cooler for longer engine life
  • Dura-Bore™ Cast Iron Cylinder Sleeve
  • Assures long engine life and improved oil control
  • Splash Lubrication System w/ Oil Guard & High Oil Fill Tube
  • Helps provide long engine life while making maintenance an easy task
  • Recoil-Starter w/ Automatic Compression Release
  • Requires less effort so you can enjoy 1-2 pull starts
  • Float-Feed Carburetor
  • Allows for fast fuel delivery for reliable starting and operation
  • Dual-Clean™ Premium Air Filter
  • Cartridge design w/ foam pre-cleaner keep more debris out of the engine
  • Magnetron® Electronic Ignition System
  • Extremely reliable design, for consistent starting while being maintenance-free
  • Mechanical Governor
  • Allows engine to maximize usable power for higher torque applications
  • Includes Muffler & Fuel Tank
  • 2-Year Consumer Warranty & 1-Year Commercial Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

13R232-0001-F1
Engine
Engine Series
B&S CR Series
Engine Style
Horizontal
Engine Type
4-Cycle OHV
Cylinders
1
Cooling System
Air
Dry Weight
33 Lbs
CC
208 CCs
Max Torque
9.50 Lbs
Cylinder Bore Type
Cast Iron
Bore
2.76 Inches
Stroke
2.13 Inches
Systems
Starting System
Recoil Only
Ignition System
Electronic Spark
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
20 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Included
Air Cleaner
Dual Element
Fuel Tank Size
0.8 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
3/4 x 2-27/64 Inches
Crankshaft Type
Straight
Crankshaft Diameter
3/4"
Crankshaft Length
2-27/64"
Crankshaft End Tapped Size
5/16"-24
Crankshaft Keyway Width
3/16 Inches
PTO Height
4.17 Inches
Overview
Weight
33 Pounds
Consumer Warranty
2 Years
Commercial Warranty
1 Year
Product Length
14.04 Inches
Product Width
10.96 Inches
Product Height
16.66 Inches
