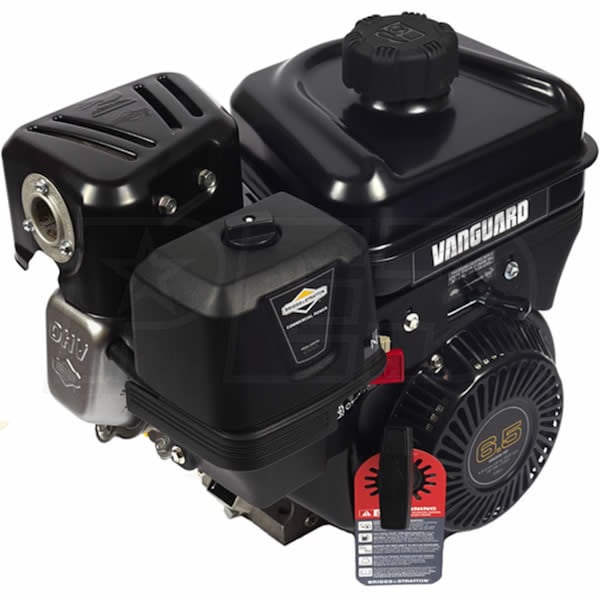

Briggs & Stratton Vanguard™ 205cc 6.5 Gross HP OHV Horizontal Engine, 3/4" x 2-7/16" Crankshaft

Briggs & Stratton Vanguard™ 205cc 6.5 Gross HP OHV Horizontal Engine, 3/4" x 2-7/16" Crankshaft
Our Price
Compare Prices
Shipping Info
Model: 13L332-0036-F8
$319.99
In-Stock
Ships from Briggs & Stratton
Factory items ship direct from the manufacturer
Shipping times vary
Free Shipping
Free Shipping$319.99Buy Now
$319.99Visit Site
Sales Tax Extra $349.99Visit Site
In-Stock
Ships from Briggs & Stratton
Factory items ship direct from the manufacturer
Shipping times vary
Free Shipping
Free Shipping
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+

Features
Features
  • Model 13L332-0036-F8 - 3/4" x 2-7/16" Keyway Crankshaft
  • Premium-Grade Vanguard™ 6.5 Gross HP* Single Cylinder Air-Cooled 4-Cycle Gas Engine
  • High-performance commercial engine rated in accordance with SAE J1995
  • Overhead Valve (OHV) Technology
  • More power, less fuel-use & lower emmisions; Runs cooler for longer engine life
  • Dura-Bore™ Cast Iron Cylinder Sleeve
  • Assures long engine life and improved oil control
  • Commercial-Style Float Carburetor w/ Sediment Filter
  • Proven-design for consitent starting, smoother operation & easy maintenance
  • Splash Lubrication System w/ Racing Designed Connecting Rod
  • Provides improved oil flow for better internal component protection & low oil sensor
  • High Capacity Dual-Clean™ Commercial Air Cleaner
  • Industrial pleated paper w/ foam pre-cleaner for demanding applicatins
  • Magnetron® Electronic Ignition
  • Maintenance-free design, plus larger ignition coil for easy dependable starting
  • TransportGuard™ System - Simultaneous Fuel/Ignition Shut-Off
  • Protects the engine from oil/fuel dilution during transport
  • Acoustically Designed Muffler System
  • Less noise keeps you working longer on the jobsite or in the yard
  • 3-Year Commercial Warranty
Specifications
Engine
Engine Series
B&S Vanguard
Engine Style
Horizontal
Cylinders
1
Engine Type
4-Cycle OHV
Cooling System
Air
Dry Weight
50 Lbs
CC
205 CCs
HP
6.5 HP
Cylinder Bore Type
Cast Iron
Bore
2.68 Inches
Stroke
2.2 Inches
Compression Ratio
8.3
Systems
Starting System
Recoil Only
Ignition System
Electronic Spark
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
20 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Included
Air Cleaner
Dual Element
Fuel Tank Size
0.85 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
3/4 x 2-27/64 Inches
Crankshaft Type
Straight
Crankshaft Diameter
3/4"
Crankshaft Length
2-27/64"
Crankshaft End Tapped Size
5/16-24
Crankshaft Keyway Width
3/16 Inches
PTO Height
4-11/64 Inches
Overview
Made in USA
No
Weight
50 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
UPC
024847111750
