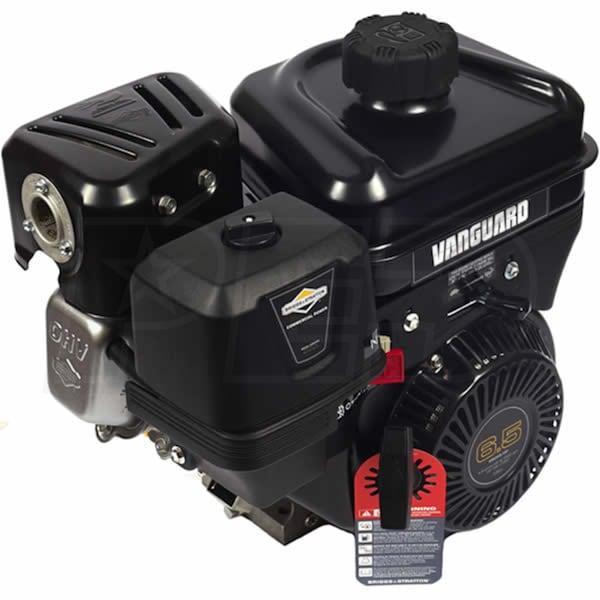

Briggs & Stratton Vanguard™ 205cc 6.5 Gross HP OHV Horizontal Engine (Scratch & Dent)
Model:
13L332-0036-F8-SD
+
Share This Product
Features
- *Scratch & Dent Model*
- Scratches on the frame, fuel tank is dented
- Shipped to another customer and returned to us, cosmetic only, will not affect operation
- Model 13L332-0036-F8 - 3/4" x 2-7/16" Keyway Crankshaft
- Premium-Grade Vanguard™ 6.5 Gross HP* Single Cylinder Air-Cooled 4-Cycle Gas Engine
- High-performance commercial engine rated in accordance with SAE J1995
- Overhead Valve (OHV) Technology
- More power, less fuel-use & lower emmisions; Runs cooler for longer engine life
- Dura-Bore™ Cast Iron Cylinder Sleeve
- Assures long engine life and improved oil control
- Commercial-Style Float Carburetor w/ Sediment Filter
- Proven-design for consitent starting, smoother operation & easy maintenance
- Splash Lubrication System w/ Racing Designed Connecting Rod
- Provides improved oil flow for better internal component protection & low oil sensor
- High Capacity Dual-Clean™ Commercial Air Cleaner
- Industrial pleated paper w/ foam pre-cleaner for demanding applicatins
- Magnetron® Electronic Ignition
- Maintenance-free design, plus larger ignition coil for easy dependable starting
- TransportGuard™ System - Simultaneous Fuel/Ignition Shut-Off
- Protects the engine from oil/fuel dilution during transport
- Acoustically Designed Muffler System
- Less noise keeps you working longer on the jobsite or in the yard
- 3-Year Commercial Warranty
Specifications
13L332-0036-F8-SD
Engine
Engine Series
B&S Vanguard
Engine Style
Horizontal
Engine Type
4-Cycle OHV
Cylinders
1
Cooling System
Air
Dry Weight
50 Lbs
CC
205 CCs
HP
6.5 HP
Cylinder Bore Type
Cast Iron
Bore
2.68 Inches
Compression Ratio
8.3
Stroke
2.2 Inches
Systems
Starting System
Recoil Only
Ignition System
Electronic Spark
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
20 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Included
Air Cleaner
Dual Element
Fuel Tank Size
0.85 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
3/4 x 2-27/64 Inches
Crankshaft Type
Straight
Crankshaft Diameter
3/4"
Crankshaft Length
2-27/64"
Crankshaft End Tapped Size
5/16-24
Crankshaft Keyway Width
3/16 Inches
PTO Height
4-11/64 Inches
Overview
Weight
50 Pounds
Made in USA
No
Consumer Warranty
3 Years
Commercial Warranty
3 Years
