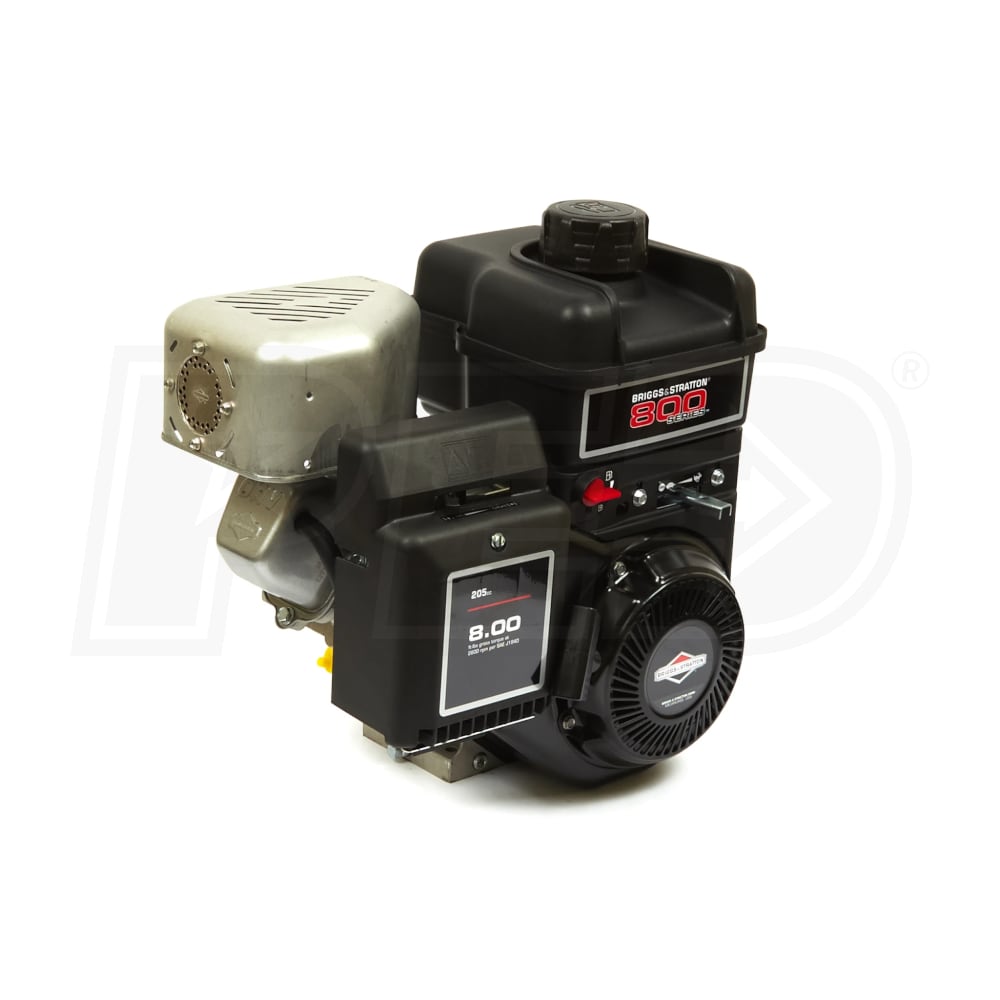

Briggs & Stratton 800 Series™ 205cc Horizontal Engine, 6:1 Gear Reduction, 3/4" x 1-13/16" Crankshaft, 3/16" Straight Keyway

Model:

130G52-0182-F1

Write a Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Briggs & Stratton 800 Series™ 205cc Horizontal Engine, 6:1 Gear Reduction, 3/4
Briggs & Stratton 800 Series™ 205cc Horizontal Engine, 6:1 Gear Reduction, 3/4" x 1-13/16" Crankshaft, 3/16" Straight Keyway
Model: 130G52-0182-F1
Product Discontinued
Features
Specifications
Reviews
Accessories
How-To Articles
Manuals
Share

Features

  • Model # 130G52-0182-F1 - 6:1 Gear Reduction, 3/4" x 1-13/16" Crankshaft, 3/16" Straight Keyway
  • Utility / General applications like mixers, pumps, rollers & aerators
  • Briggs & Straton 800 Series™ Single Cylinder Air-Cooled 4-Cycle Gas Engine
  • Produces 8.00ft-lbs of torque* - Power levels are stated gross torque per SAE J1941
  • Aluminum-Alloy Kool Bore™ Engineering
  • Keeps the engine running cooler for maximum productivity
  • Float-Style Carburetor w/ Primer
  • Provides consistent starting even when engine is cold
  • Magnetron® Electronic Ignition System
  • Keeps the engine running cooler for maximum productivity
  • Large Diameter Recoil Starter
  • With mechanical compresson release for easier starting with less effort
  • Mechanical Torque Control
  • Maximizes usable power of the engine when high torque is required
  • Maxi-Clean™ Automotive-Type Air Filter
  • Pleated paper design, provides excellent debris filtration
  • Aluminized Lo-Tone™ Muffler
  • Decrease engine noise during operation
  • 2-Year Consumer Warranty
  • Model 130G52-0182-F1 Replaces Model 12T152-0049-F8
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

130G52-0182-F1
Engine
Engine Series
800 Series
Engine Style
Horizontal
Engine Type
4-Cycle OHV
Cylinders
1
Cooling System
Air
Dry Weight
40 Lbs
CC
205 CCs
Max Torque
8.00 Lbs
Cylinder Bore Type
Aluminum
Bore
2.69 Inches
Stroke
2.20 Inches
Systems
Starting System
Recoil Only
Ignition System
Electronic Spark
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
20 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Included
Air Cleaner
Dry (Paper)
Fuel Tank Size
0.75 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
3/4 x 1-13/16 Inches Inches
Crankshaft Type
6:1 Gear Reduction
Crankshaft Diameter
3/4"
Crankshaft Length
1-13/16"
Crankshaft End Tapped Size
6:1 Gear Reduction
Crankshaft Keyway Width
3/16 Inches
PTO Height
4.17 Inches
Overview
Weight
40 Pounds
Consumer Warranty
2 Years
Commercial Warranty
90 Days
Product Length
14.46 Inches
Product Depth
10.95 Inches
Product Width
15.55 Inches
UPC
047282137024
