Briggs & Stratton 130G32-0022-F1
Briggs & Stratton 130G32-0022-F1
Hover to zoom
1 Of 5

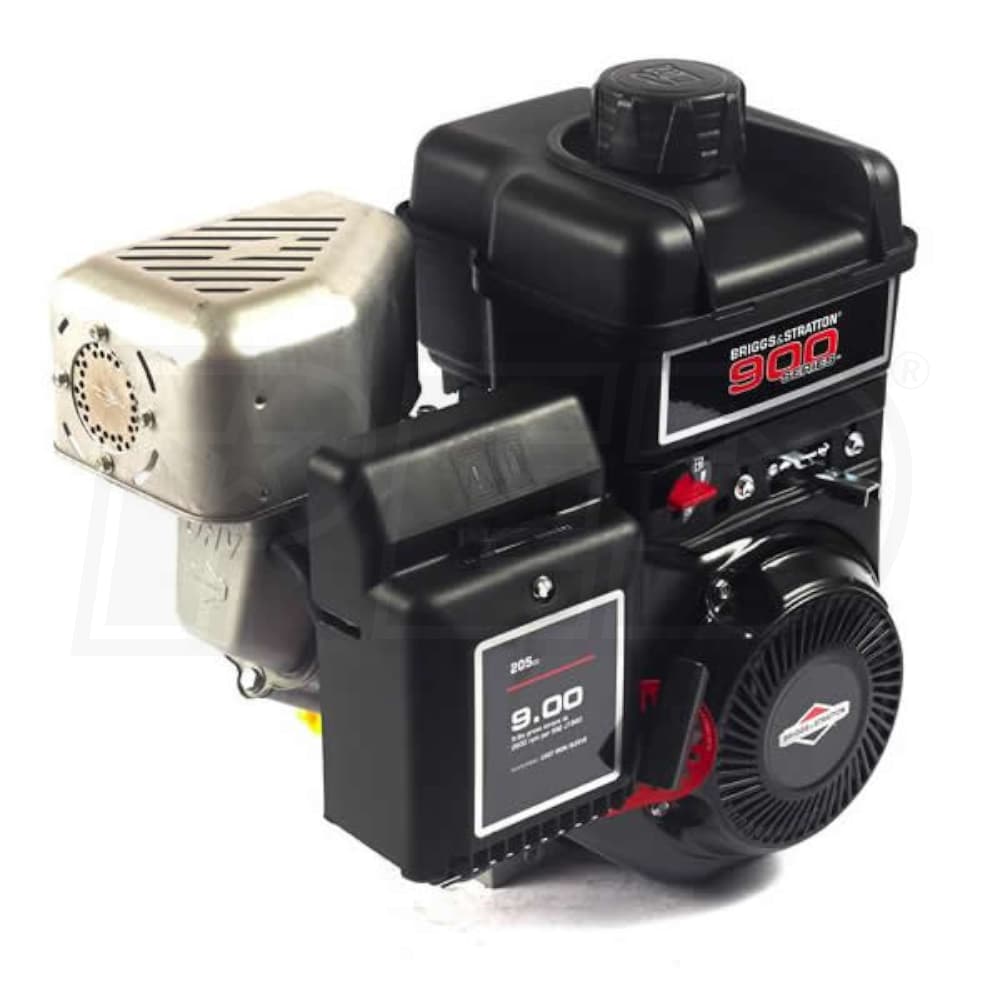

Briggs & Stratton 900 Series™ 205cc Horizontal Engine, 3/4" x 2-5/16" Crankshaft Tapped 5/16-24", Tapped 5/16"-24, 3/16" Straight Keyway
Model: 130G32-0022-F1
4.0 out of 54.0 out of 54.0 out of 54.0 out of 54.0 out of 5
Number of Reviews(4)
Write a Review
Q&A (1)
$269.99
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships from Briggs & Stratton
Shipping to60601
Shipping Details
  • Free to Lower 48 States
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States

Available Add-Ons
Share
  • Product Description
  • 4
    Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+−

Features
Features
  • Model # 130G32-0022-F1 - 3/4" x 2-5/16" Crankshaft Tapped 5/16-24", Tapped 5/16"-24, 3/16" Straight Keyway
  • Utility / General applications like mixers, pumps, rollers & aerators
  • Briggs & Straton 900 Series™ Single Cylinder Air-Cooled 4-Cycle Gas Engine
  • Produces 9.00ft-lbs of torque* - Power levels are stated gross torque per SAE J1945
  • Aluminum-Alloy Kool Bore™ Engineering
  • Keeps the engine running cooler for maximum productivity
  • Float-Style Carburetor w/ Primer
  • Provides consistent starting even when engine is cold
  • Magnetron® Electronic Ignition System
  • Extremely reliable design, for consistent starting while being maintenance-free
  • Large Diameter Recoil Starter
  • With mechanical compresson release for easier starting with less effort
  • Mechanical Torque Control
  • Maximizes usable power of the engine when high torque is required
  • Maxi-Clean™ Automotive-Type Air Filter
  • Pleated paper design, provides excellent debris filtration
  • Aluminized Lo-Tone™ Muffler
  • Decrease engine noise during operation
  • 2-Year Consumer Warranty
  • Model 130G32-0022-F1 Replaces Models 12S402-0023-F8 And 12T102-0023-F8
Specifications
Engine
Engine Series
900 Series
Engine Style
Horizontal
Engine Type
4-Cycle OHV
Cylinders
1
Cooling System
Air
Dry Weight
40 Lbs
CC
205 CCs
Max Torque
9.00 Lbs
Cylinder Bore Type
Aluminum
Bore
2.69 Inches
Stroke
2.20 Inches
Systems
Starting System
Recoil Only
Ignition System
Electronic Spark
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
20 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Included
Air Cleaner
Dry (Paper)
Fuel Tank Size
0.75 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
3/4 x 2-5/16 Inches
Crankshaft Type
Straight
Crankshaft Diameter
3/4"
Crankshaft Length
2-5/16"
Crankshaft End Tapped Size
5/16"-24
Crankshaft Keyway Width
3/16 Inches
PTO Height
4.17 Inches
Overview
Weight
40 Pounds
Consumer Warranty
2 Years
Product Length
14.46 Inches
Product Depth
10.95 Inches
Product Width
15.55 Inches
UPC
024847926859

Features
Features
  • Model # 130G32-0022-F1 - 3/4" x 2-5/16" Crankshaft Tapped 5/16-24", Tapped 5/16"-24, 3/16" Straight Keyway
  • Utility / General applications like mixers, pumps, rollers & aerators
  • Briggs & Straton 900 Series™ Single Cylinder Air-Cooled 4-Cycle Gas Engine
  • Produces 9.00ft-lbs of torque* - Power levels are stated gross torque per SAE J1945
  • Aluminum-Alloy Kool Bore™ Engineering
  • Keeps the engine running cooler for maximum productivity
  • Float-Style Carburetor w/ Primer
  • Provides consistent starting even when engine is cold
  • Magnetron® Electronic Ignition System
  • Extremely reliable design, for consistent starting while being maintenance-free
  • Large Diameter Recoil Starter
  • With mechanical compresson release for easier starting with less effort
  • Mechanical Torque Control
  • Maximizes usable power of the engine when high torque is required
  • Maxi-Clean™ Automotive-Type Air Filter
  • Pleated paper design, provides excellent debris filtration
  • Aluminized Lo-Tone™ Muffler
  • Decrease engine noise during operation
  • 2-Year Consumer Warranty
  • Model 130G32-0022-F1 Replaces Models 12S402-0023-F8 And 12T102-0023-F8
Specifications
Engine
Engine Series
900 Series
Engine Style
Horizontal
Engine Type
4-Cycle OHV
Cylinders
1
Cooling System
Air
Dry Weight
40 Lbs
CC
205 CCs
Max Torque
9.00 Lbs
Cylinder Bore Type
Aluminum
Bore
2.69 Inches
Stroke
2.20 Inches
Systems
Starting System
Recoil Only
Ignition System
Electronic Spark
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
20 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Included
Air Cleaner
Dry (Paper)
Fuel Tank Size
0.75 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
3/4 x 2-5/16 Inches
Crankshaft Type
Straight
Crankshaft Diameter
3/4"
Crankshaft Length
2-5/16"
Crankshaft End Tapped Size
5/16"-24
Crankshaft Keyway Width
3/16 Inches
PTO Height
4.17 Inches
Overview
Weight
40 Pounds
Consumer Warranty
2 Years
Product Length
14.46 Inches
Product Depth
10.95 Inches
Product Width
15.55 Inches
UPC
024847926859
Product Specs
+−
Specifications
Engine
Engine Series
900 Series
Engine Style
Horizontal
Engine Type
4-Cycle OHV
Cylinders
1
Cooling System
Air
Dry Weight
40 Lbs
CC
205 CCs
Max Torque
9.00 Lbs
Cylinder Bore Type
Aluminum
Bore
2.69 Inches
Stroke
2.20 Inches
Systems
Starting System
Recoil Only
Ignition System
Electronic Spark
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
20 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Included
Air Cleaner
Dry (Paper)
Fuel Tank Size
0.75 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
3/4 x 2-5/16 Inches
Crankshaft Type
Straight
Crankshaft Diameter
3/4"
Crankshaft Length
2-5/16"
Crankshaft End Tapped Size
5/16"-24
Crankshaft Keyway Width
3/16 Inches
PTO Height
4.17 Inches
Overview
Weight
40 Pounds
Consumer Warranty
2 Years
Product Length
14.46 Inches
Product Depth
10.95 Inches
Product Width
15.55 Inches
UPC
024847926859
Reviews
4.0 out of 54.0 out of 54.0 out of 54.0 out of 54.0 out of 5
(4)
+−
Briggs & Stratton 130G32-0022-F1 Reviews & Ratings
Product Q&A
(1)
+−
Search Product Q&A's Answered by Jake, the Power Equipment Expert
icon-social-fb1
+−
distance between bolt down holes,have to be 3-1/4 center to center,whats the h.p. on the 208 cc engine?,thanks,john
John Swope
from Colorado
July 06, 2016
Answer
You would be 3-1/4 center to center on the short side and about 6-3/8 on the long side. The mounting pattern is standard on most applications.
Was this answer helpful?
Yes
Thumbs Up Icon
0
No
Thumbs Down Icon
0
