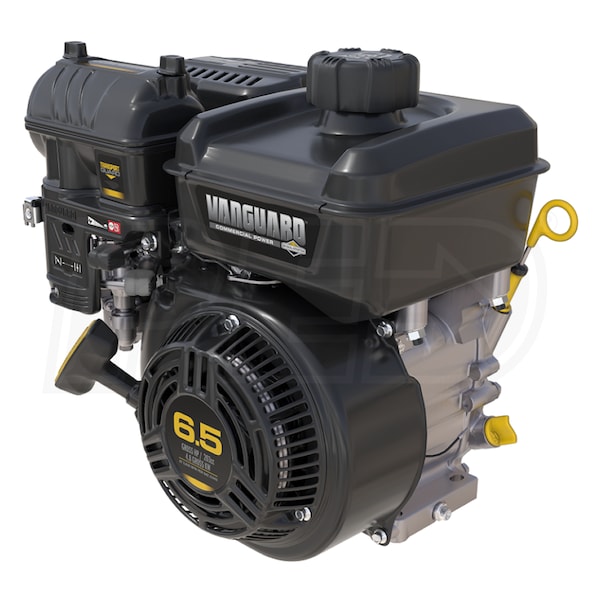

Briggs & Stratton Vanguard™ 205cc 6.5HP OHV Horizontal Engine, 3/4" x 2" Crankshaft, 6:1 Gear Reduction Ratio, 3/16" Keyway

Model:

12V352-0015-F1

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Briggs & Stratton Vanguard™ 205cc 6.5HP OHV Horizontal Engine, 3/4
Briggs & Stratton Vanguard™ 205cc 6.5HP OHV Horizontal Engine, 3/4" x 2" Crankshaft, 6:1 Gear Reduction Ratio, 3/16" Keyway
Model: 12V352-0015-F1
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Dale, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

  • Replaces Engine Model #13L352-0049-F8
  • Model #12V352-0015-F1 - 3/4" x 2" Crankshaft, 6:1 Gear Reduction Ratio, 3/16" KW
  • Premium-Grade Vanguard™ 6.5 HP Single Cylinder Air-Cooled 4-Cycle Gas Engine
  • High-performance commercial engine rated in accordance with SAE J1995
  • Overhead Valve (OHV) Technology
  • More power, less fuel-use and lower emissions
  • Significantly reduces harmful carbon deposits
  • Dura-Bore Cast Iron Cylinder Sleeve
  • Assures longer engine life and improved oil control
  • Commercial-Style Float Carburetor w/ Sediment Filter
  • Proven-design for consistent starting, smoother operation & easy maintenance
  • Splash Lubrication System w/ Racing Designed Connecting Rod
  • Provides improved oil flow for better internal component protection
  • High Capacity Cyclonic Air Cleaner
  • Actively manages airflow and known to last 2X longer than panel style filters
  • TransportGuard
  • Protects the engine from oil/fuel dilution during transport
  • Acoustically Designed Muffler System
  • Less noise keeps you working longer on the job site or in the yard
  • 3-Year Commercial Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

12V352-0015-F1
specs product image PID-97397
Engine
Engine Series
B&S Vanguard
Engine Style
Horizontal
Engine Type
4-Cycle OHV
Cylinders
1
Cooling System
Air
Dry Weight
50 Lbs
CC
205 CCs
HP
6.5 HP
Cylinder Bore Type
Cast Iron
Bore
2.68 Inches
Compression Ratio
8.3:1
Stroke
2.20 Inches
Systems
Starting System
Recoil Only
Ignition System
Electronic Spark
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
20 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Included
Air Cleaner
Integrated Cyclonic Air Cleaner
Fuel Tank Size
0.85 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
2 x 3/4 Inches
Crankshaft Type
6:1 Gear Reduction
Crankshaft Diameter
3/4"
Crankshaft Length
2"
Crankshaft End Tapped Size
6:1 Gear Reduction
Crankshaft Keyway Width
3/16 Inches
PTO Height
4.17 Inches
Overview
Consumer Warranty
3 Years
Commercial Warranty
3 Years
UPC
047282758137
