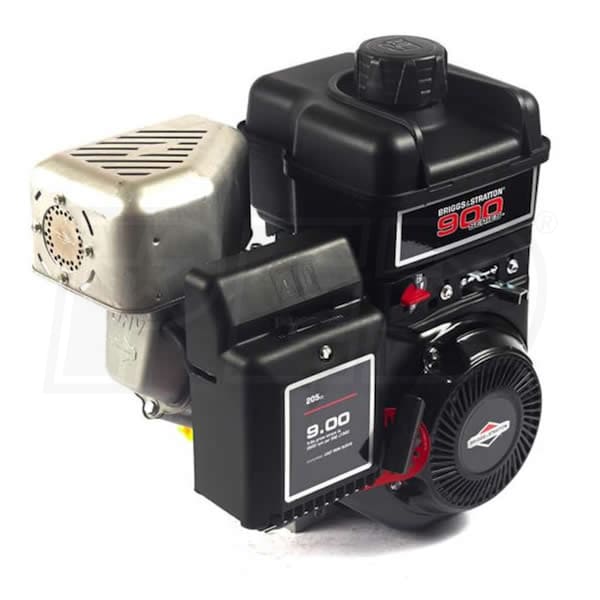

Briggs & Stratton 900 Series™ 205cc Horizontal Engine, 3/4" x 2-5/16" Crankshaft Tapped 5/16-24", Tapped 5/16"-24, 3/16" Straight Keyway

Briggs & Stratton 900 Series™ 205cc Horizontal Engine, 3/4" x 2-5/16" Crankshaft Tapped 5/16-24", Tapped 5/16"-24, 3/16" Straight Keyway
Model: 12S402-0023-F8
$389.99
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping &
Tax-Free (Except IL)
Factory-Direct
Ships in 2-5 Business Days
Free Shipping
Free Shipping
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • How-To Articles
  • Manuals
Product Description
+

Features
Features
  • Model# 12S402-0023-F8 - 3/4" x 2-5/16" Crankshaft Tapped 5/16-24", Tapped 5/16"-24, 3/16" Straight Keyway
  • Utility / General applications like mixers, pumps, rollers & aerators
  • Supercedes model 122012-0523-B8
  • Briggs & Straton 900 Series™ Single Cylinder Air-Cooled 4-Cycle Gas Engine
  • Produces 9.00ft-lbs of torque* - Power levels are stated gross torque per SAE J1945
  • Aluminum-Alloy Kool Bore™ Engineering
  • Keeps the engine running cooler for maximum productivity
  • Float-Style Carburetor w/ Primer
  • Provides consistent starting even when engine is cold
  • Magnetron® Electronic Ignition System
  • Extremely reliable design, for consistent starting while being maintenance-free
  • Large Diameter Recoil Starter
  • With mechanical compresson release for easier starting with less effort
  • Mechanical Torque Control
  • Maximizes usable power of the engine when high torque is required
  • Maxi-Clean™ Automotive-Type Air Filter
  • Pleated paper design, provides excellent debris filtration
  • Aluminized Lo-Tone™ Muffler
  • Decrease engine noise during operation
  • 2-Year Consumer Warranty
Specifications
Engine
Engine Series
900 Series
Engine Style
Horizontal
Cylinders
1
Engine Type
4-Cycle OHV
Cooling System
Air
Dry Weight
40 Lbs
CC
205 CCs
Max Torque
9.00 Lbs
Cylinder Bore Type
Aluminum
Bore
2.69 Inches
Stroke
2.2 Inches
Systems
Starting System
Recoil Only
Ignition System
Electronic Spark
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
20 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Included
Air Cleaner
Dry (Paper)
Fuel Tank Size
0.75 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
3/4" x 2-5/16 Inches
Crankshaft Type
Straight
Crankshaft Diameter
3/4"
Crankshaft Length
2-5/16"
Crankshaft End Tapped Size
5/16-24"
Crankshaft Keyway Width
3/16 Inches
PTO Height
4.17 Inches
Overview
Made in USA
Yes
Weight
40 Pounds
Product Length
14.46 Inches
Product Width
10.95 Inches
Product Height
15.55 Inches
Consumer Warranty
2 Years
Commercial Warranty
90 Days
UPC
024847182460

Features
Features
  • Model# 12S402-0023-F8 - 3/4" x 2-5/16" Crankshaft Tapped 5/16-24", Tapped 5/16"-24, 3/16" Straight Keyway
  • Utility / General applications like mixers, pumps, rollers & aerators
  • Supercedes model 122012-0523-B8
  • Briggs & Straton 900 Series™ Single Cylinder Air-Cooled 4-Cycle Gas Engine
  • Produces 9.00ft-lbs of torque* - Power levels are stated gross torque per SAE J1945
  • Aluminum-Alloy Kool Bore™ Engineering
  • Keeps the engine running cooler for maximum productivity
  • Float-Style Carburetor w/ Primer
  • Provides consistent starting even when engine is cold
  • Magnetron® Electronic Ignition System
  • Extremely reliable design, for consistent starting while being maintenance-free
  • Large Diameter Recoil Starter
  • With mechanical compresson release for easier starting with less effort
  • Mechanical Torque Control
  • Maximizes usable power of the engine when high torque is required
  • Maxi-Clean™ Automotive-Type Air Filter
  • Pleated paper design, provides excellent debris filtration
  • Aluminized Lo-Tone™ Muffler
  • Decrease engine noise during operation
  • 2-Year Consumer Warranty
Specifications
Engine
Engine Series
900 Series
Engine Style
Horizontal
Cylinders
1
Engine Type
4-Cycle OHV
Cooling System
Air
Dry Weight
40 Lbs
CC
205 CCs
Max Torque
9.00 Lbs
Cylinder Bore Type
Aluminum
Bore
2.69 Inches
Stroke
2.2 Inches
Systems
Starting System
Recoil Only
Ignition System
Electronic Spark
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
20 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Included
Air Cleaner
Dry (Paper)
Fuel Tank Size
0.75 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
3/4" x 2-5/16 Inches
Crankshaft Type
Straight
Crankshaft Diameter
3/4"
Crankshaft Length
2-5/16"
Crankshaft End Tapped Size
5/16-24"
Crankshaft Keyway Width
3/16 Inches
PTO Height
4.17 Inches
Overview
Made in USA
Yes
Weight
40 Pounds
Product Length
14.46 Inches
Product Width
10.95 Inches
Product Height
15.55 Inches
Consumer Warranty
2 Years
Commercial Warranty
90 Days
UPC
024847182460
Product Specs
+
Specifications
Engine
Engine Series
900 Series
Engine Style
Horizontal
Cylinders
1
Engine Type
4-Cycle OHV
Cooling System
Air
Dry Weight
40 Lbs
CC
205 CCs
Max Torque
9.00 Lbs
Cylinder Bore Type
Aluminum
Bore
2.69 Inches
Stroke
2.2 Inches
Systems
Starting System
Recoil Only
Ignition System
Electronic Spark
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
20 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Included
Air Cleaner
Dry (Paper)
Fuel Tank Size
0.75 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
3/4" x 2-5/16 Inches
Crankshaft Type
Straight
Crankshaft Diameter
3/4"
Crankshaft Length
2-5/16"
Crankshaft End Tapped Size
5/16-24"
Crankshaft Keyway Width
3/16 Inches
PTO Height
4.17 Inches
Overview
Made in USA
Yes
Weight
40 Pounds
Product Length
14.46 Inches
Product Width
10.95 Inches
Product Height
15.55 Inches
Consumer Warranty
2 Years
Commercial Warranty
90 Days
UPC
024847182460
