Briggs & Stratton 12S402-0022-F8
Briggs & Stratton 12S402-0022-F8
Hover to zoom
1 Of 5

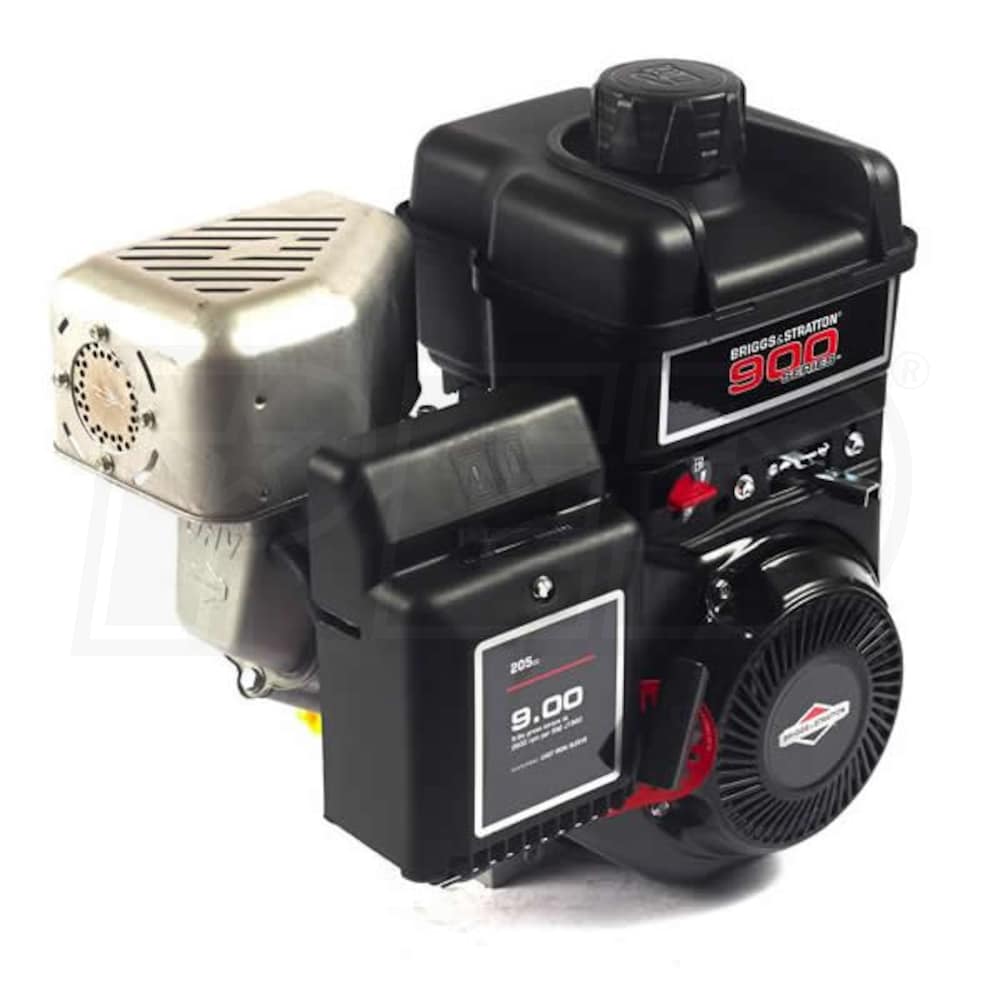

Briggs & Stratton 900 Series™ 205cc Horizontal Engine, 3/4" x 1-29/64" Crankshaft, Tapped 3/8"-24, 3/16" Straight Keyway
Model: 12S402-0022-F8
No RatingNo RatingNo RatingNo RatingNo Rating
Number of Reviews(0)
Write a Review
$514.99
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping to60601
Shipping Details
  • Free to Lower 48 States
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States

Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+

Features
Features
  • Model# 12S402-0022-F8 - 3/4" x 1-29/64" Crankshaft, Tapped 3/8"-24, 3/16" Straight Keyway
  • Utility / General applications like mixers, pumps, rollers & aerators
  • Briggs & Straton 900 Series™ Single Cylinder Air-Cooled 4-Cycle Gas Engine
  • Produces 9.00ft-lbs of torque* - Power levels are stated gross torque per SAE J1943
  • Aluminum-Alloy Kool Bore™ Engineering
  • Keeps the engine running cooler for maximum productivity
  • Float-Style Carburetor w/ Primer
  • Provides consistent starting even when engine is cold
  • Magnetron® Electronic Ignition System
  • Extremely reliable design, for consistent starting while being maintenance-free
  • Large Diameter Recoil Starter
  • With mechanical compresson release for easier starting with less effort
  • Mechanical Torque Control
  • Maximizes usable power of the engine when high torque is required
  • Maxi-Clean™ Automotive-Type Air Filter
  • Pleated paper design, provides excellent debris filtration
  • Aluminized Lo-Tone™ Muffler
  • Decrease engine noise during operation
  • 2-Year Consumer Warranty
Specifications
Engine
Engine Series
900 Series
Engine Style
Horizontal
Engine Type
4-Cycle OHV
Cylinders
1
Cooling System
Air
Dry Weight
40 Lbs
CC
205 CCs
Max Torque
9.00 Lbs
Cylinder Bore Type
Aluminum
Bore
2.69 Inches
Stroke
2.20 Inches
Systems
Starting System
Recoil Only
Ignition System
Electronic Spark
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
20 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Included
Air Cleaner
Dry (Paper)
Fuel Tank Size
0.75 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
3/4 x 1-29/64 Inches
Crankshaft Type
Straight
Crankshaft Diameter
3/4"
Crankshaft Length
1-29/64"
Crankshaft End Tapped Size
3/8"-24
Crankshaft Keyway Width
3/16 Inches
PTO Height
4.17 Inches
Overview
Weight
40 Pounds
Consumer Warranty
2 Years
Commercial Warranty
90 Days
Product Length
14.46 Inches
Product Width
10.95 Inches
Product Height
15.55 Inches
UPC
024847191967

Features
Features
  • Model# 12S402-0022-F8 - 3/4" x 1-29/64" Crankshaft, Tapped 3/8"-24, 3/16" Straight Keyway
  • Utility / General applications like mixers, pumps, rollers & aerators
  • Briggs & Straton 900 Series™ Single Cylinder Air-Cooled 4-Cycle Gas Engine
  • Produces 9.00ft-lbs of torque* - Power levels are stated gross torque per SAE J1943
  • Aluminum-Alloy Kool Bore™ Engineering
  • Keeps the engine running cooler for maximum productivity
  • Float-Style Carburetor w/ Primer
  • Provides consistent starting even when engine is cold
  • Magnetron® Electronic Ignition System
  • Extremely reliable design, for consistent starting while being maintenance-free
  • Large Diameter Recoil Starter
  • With mechanical compresson release for easier starting with less effort
  • Mechanical Torque Control
  • Maximizes usable power of the engine when high torque is required
  • Maxi-Clean™ Automotive-Type Air Filter
  • Pleated paper design, provides excellent debris filtration
  • Aluminized Lo-Tone™ Muffler
  • Decrease engine noise during operation
  • 2-Year Consumer Warranty
Specifications
Engine
Engine Series
900 Series
Engine Style
Horizontal
Engine Type
4-Cycle OHV
Cylinders
1
Cooling System
Air
Dry Weight
40 Lbs
CC
205 CCs
Max Torque
9.00 Lbs
Cylinder Bore Type
Aluminum
Bore
2.69 Inches
Stroke
2.20 Inches
Systems
Starting System
Recoil Only
Ignition System
Electronic Spark
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
20 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Included
Air Cleaner
Dry (Paper)
Fuel Tank Size
0.75 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
3/4 x 1-29/64 Inches
Crankshaft Type
Straight
Crankshaft Diameter
3/4"
Crankshaft Length
1-29/64"
Crankshaft End Tapped Size
3/8"-24
Crankshaft Keyway Width
3/16 Inches
PTO Height
4.17 Inches
Overview
Weight
40 Pounds
Consumer Warranty
2 Years
Commercial Warranty
90 Days
Product Length
14.46 Inches
Product Width
10.95 Inches
Product Height
15.55 Inches
UPC
024847191967
