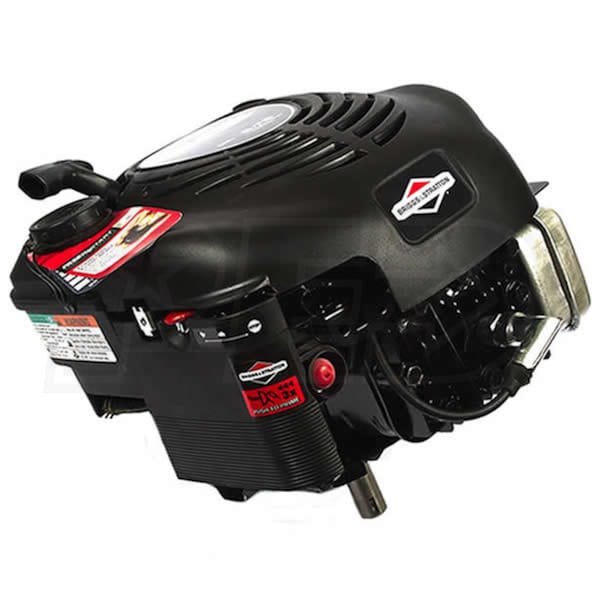

Briggs & Stratton 675 Series™ 190cc Vertical Engine, 7/8" x 3-5/32" Crankshaft, Tapped 3/8"-24, 2 Woodruff Keys & 3/16" Straight Keyway
Briggs & Stratton 675 Series™ 190cc Vertical Engine, 7/8" x 3-5/32" Crankshaft, Tapped 3/8"-24, 2 Woodruff Keys & 3/16" Straight Keyway
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
How-To Articles
-
Manuals
Product Description
+−
Features
Features
- Model# 126M02-1002-F1 - 7/8" x 3-5/32" Crankshaft, Tapped 3/8"-24, 2 Woodruff Keys & 3/16" Straight Keyway
- For walkbehind / push mowers
- Briggs & Straton 675 Series™ Single Cylinder Air-Cooled 4-Cycle Gas Engine
- Produces 6.75ft-lbs of torque* - Power levels are stated gross torque per SAE J1942
- Aluminum-Alloy Kool Bore™ Engineering
- Keeps the engine running cooler for maximum productivity
- Float-Style Carburetor w/ Primer
- Provides consistent starting even when engine is cold
- Magnetron® Electronic Ignition System
- Extremely reliable design, for consistent starting while being maintenance-free
- Large Diameter Recoil Starter
- With mechanical compresson release for easier starting with less effort
- Mechanical Torque Control
- Maximizes usable power of the engine when high torque is required
- Maxi-Clean™ Automotive-Type Air Filter
- Pleated paper design, provides excellent debris filtration
- Aluminized Lo-Tone™ Muffler
- Decrease engine noise during operation
- 2-Year Consumer Warranty
Specifications
Engine
Engine Series
675 Series
Engine Style
Vertical
Cylinders
1
Engine Type
4-Cycle OHV
Cooling System
Air
Dry Weight
28 Lbs
CC
190 CCs
Max Torque
6.75 Lbs
Cylinder Bore Type
Aluminum
Bore
2.69 Inches
Stroke
2.04 Inches
Systems
Starting System
Recoil Only
Ignition System
Electronic Spark
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
20 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Included
Air Cleaner
Dry (Paper)
Fuel Tank Size
.25 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
7/8 x 3-5/32 Inches
Crankshaft End Tapped Size
3/8"-24
Crankshaft Type
Straight
Crankshaft Diameter
7/8"
Crankshaft Length
3-5/32"
Crankshaft Keyway Width
3/16 Inches
Overview
Made in USA
Yes
Weight
28 Pounds
Product Length
12.175 Inches
Product Width
12.932 Inches
Product Height
9.726 Inches
Consumer Warranty
2 Years
Commercial Warranty
90 Days
UPC
024847183559
