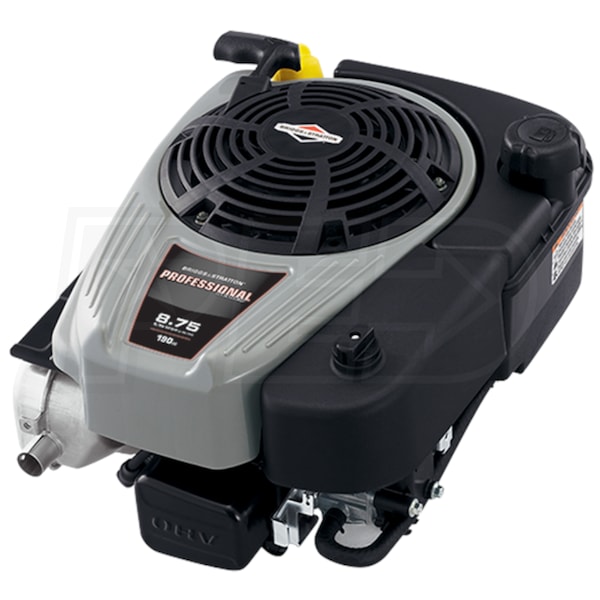

Briggs & Stratton Professional Series 190cc Vertical Engine w/ Heavy Flywheel, 7/8" x 3-5/32" Crankshaft, 3/16" Keyway
Model:
125P02-0017-F1
+
Share This Product
Features
- Model# 125P02-0017-F1 - 7/8" x 3-5/32" Crankshaft W/ Heavy Flywheel
- Commonly used on pressure washers and log splitters
- Professional Series™ Single Cylinder Air-Cooled 4-Cycle Gas Engine
- Produces 8.75ft-lbs of torque* - Power levels are stated gross torque per SAE J1940
- ReadyStart® Engine Starting System
- Just pull to start, no primer and no choke to worry about. Pull, Start, Go
- Overhead Valve (OHV) Technology
- More power, less fuel-use & lower emissions; Runs cooler for longer engine life
- Aluminum-Alloy Kool Bore™ Engineering
- Keeps the engine running cooler for maximum productivity
- DuraLube™ Splash Lubrication System
- Gear-driven system keeps engine well-oiled for continuous protection
- Large Diameter Recoil Starter
- With mechanical compression release for easier starting with less effort
- Commercial-Grade Air Cleaner
- Dual-sealing design keeps more debris and dust out
- Aluminized Lo-Tone™ Muffler
- Decrease engine noise during operation
- Includes .3-Gallon Fuel Tank
- Does NOT Include ON/OFF Switch - A Toggle Switch or Rocker Switch Must Be Installed
- 2-Year Consumer Warranty & 90-Day Commercial Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
125P02-0017-F1
Engine
Engine Series
B&S Professional Series
Engine Style
Vertical
Engine Type
4-Cycle OHV
Cylinders
1
Cooling System
Air
Dry Weight
24 Lbs
CC
190 CCs
Max Torque
8.75 Lbs
Cylinder Bore Type
Aluminum
Bore
2.69 Inches
Stroke
2.04 Inches
Systems
Starting System
Recoil Only
Ignition System
Electronic Spark
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
20 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Included
Air Cleaner
Dry (Paper)
Fuel Tank Size
0.3 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
7/8 x 3-5/32 Inches
Crankshaft Type
Straight
Crankshaft Diameter
7/8"
Crankshaft Length
3-5/32"
Crankshaft End Tapped Size
3/8"-24
Crankshaft Keyway Width
3/16 Inches
Overview
Consumer Warranty
2 Years
Commercial Warranty
90 Days
