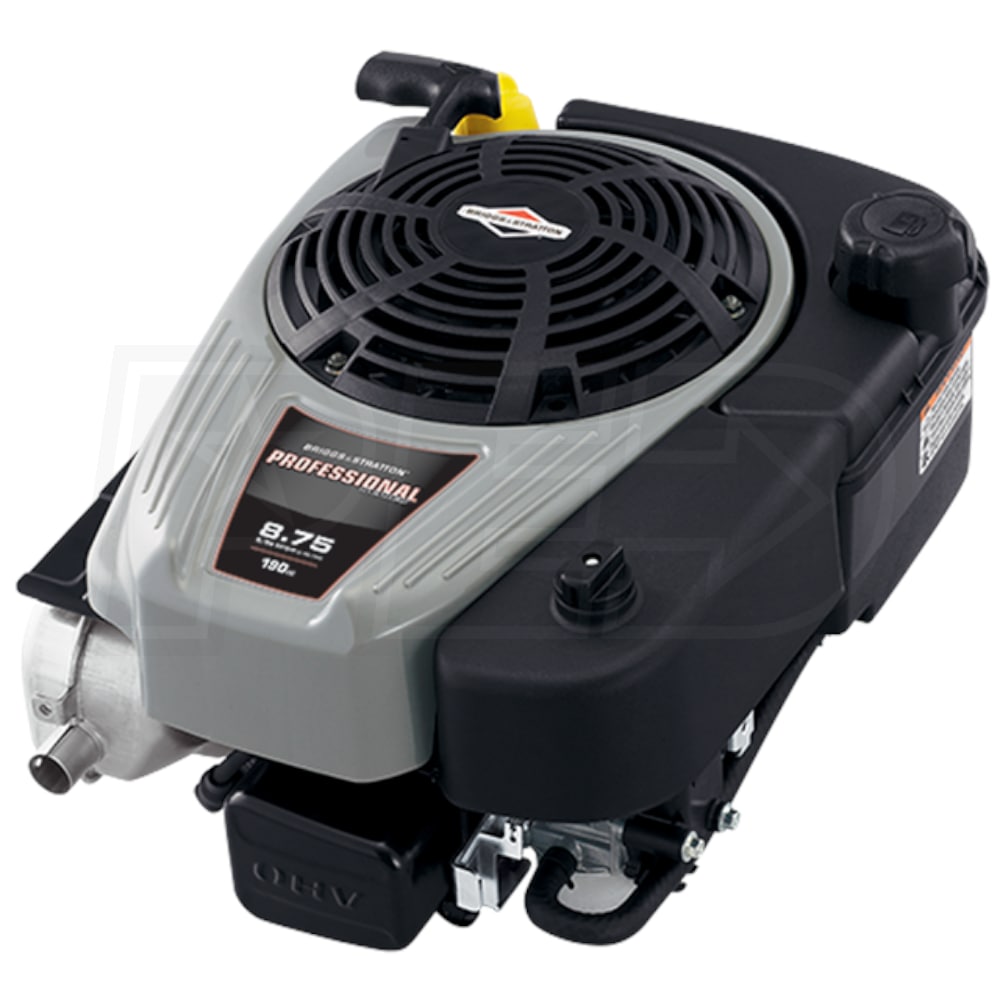

Briggs & Stratton Professional Series™ 190cc OHV Vertical Engine W/ Heavy Flywheel, 25mm x 3-5/32" Crankshaft, 3/16" Keyway

Briggs & Stratton Professional Series™ 190cc OHV Vertical Engine W/ Heavy Flywheel, 25mm x 3-5/32" Crankshaft, 3/16" Keyway
Our Price
Compare Prices
Shipping Info
Model: 125P02-0003-F1
$329.99
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping
Free Shipping$329.99Buy Now
$329.99Visit Site
Factory-Direct
Ships in 2-5 Business Days
Free Shipping
Free Shipping
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+

Features
Features
  • Model# 121S02-0130-F2 - 25mm x 3-5/32" Crankshaft W/ Heavy Flywheel
  • Direct replacement engine for Toro TimeMaster mowers
  • Professional Series™ Single Cylinder Air-Cooled 4-Cycle Gas Engine
  • Produces 8.75ft-lbs of torque* - Power levels are stated gross torque per SAE J1940
  • ReadyStart® Engine Starting System
  • Just pull to start, no primer and no choke to worry about. Pull, Start, Go
  • Overhead Valve (OHV) Technology
  • More power, less fuel-use & lower emmisions; Runs cooler for longer engine life
  • Aluminum-Alloy Kool Bore™ Engineering
  • Keeps the engine running cooler for maximum productivity
  • DuraLube™ Splash Lubrication System
  • Gear-driven system keeps engine well oiled for continous protection
  • Large Diameter Recoil Starter
  • With mechanical compresson release for easier starting with less effort
  • Commercial-Grade Air Cleaner
  • Dual-sealing design keeps more debris and dust out
  • Aluminized Lo-Tone™ Muffler
  • Decrease engine noise during operation
  • Includes .3-Gallon Fuel Tank
  • 2-Year Consumer Warranty & 90-Day Commercial Warranty
Specifications
Engine
Engine Series
B&S Professional Series
Engine Style
Vertical
Cylinders
1
Engine Type
4-Cycle OHV
Cooling System
Air
Dry Weight
24.3 Lbs
CC
190 CCs
Max Torque
8.75 Lbs
Cylinder Bore Type
Aluminum
Bore
2.69 Inches
Stroke
2.04 Inches
Systems
Starting System
Recoil Only
Ignition System
Electronic Spark
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
18-20 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Included
Air Cleaner
Dry (Paper)
Fuel Tank Size
.3 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
25mm x 3-5/32 Inches
Crankshaft Type
Straight
Crankshaft Diameter
25 mm
Crankshaft Length
3-5/32"
Crankshaft End Tapped Size
7/16-20
Crankshaft Keyway Width
3/16 Inches
Overview
Consumer Warranty
2 Years
Commercial Warranty
90 Days
UPC
47282145036

Features
Features
  • Model# 121S02-0130-F2 - 25mm x 3-5/32" Crankshaft W/ Heavy Flywheel
  • Direct replacement engine for Toro TimeMaster mowers
  • Professional Series™ Single Cylinder Air-Cooled 4-Cycle Gas Engine
  • Produces 8.75ft-lbs of torque* - Power levels are stated gross torque per SAE J1940
  • ReadyStart® Engine Starting System
  • Just pull to start, no primer and no choke to worry about. Pull, Start, Go
  • Overhead Valve (OHV) Technology
  • More power, less fuel-use & lower emmisions; Runs cooler for longer engine life
  • Aluminum-Alloy Kool Bore™ Engineering
  • Keeps the engine running cooler for maximum productivity
  • DuraLube™ Splash Lubrication System
  • Gear-driven system keeps engine well oiled for continous protection
  • Large Diameter Recoil Starter
  • With mechanical compresson release for easier starting with less effort
  • Commercial-Grade Air Cleaner
  • Dual-sealing design keeps more debris and dust out
  • Aluminized Lo-Tone™ Muffler
  • Decrease engine noise during operation
  • Includes .3-Gallon Fuel Tank
  • 2-Year Consumer Warranty & 90-Day Commercial Warranty
Specifications
Engine
Engine Series
B&S Professional Series
Engine Style
Vertical
Cylinders
1
Engine Type
4-Cycle OHV
Cooling System
Air
Dry Weight
24.3 Lbs
CC
190 CCs
Max Torque
8.75 Lbs
Cylinder Bore Type
Aluminum
Bore
2.69 Inches
Stroke
2.04 Inches
Systems
Starting System
Recoil Only
Ignition System
Electronic Spark
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
18-20 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Included
Air Cleaner
Dry (Paper)
Fuel Tank Size
.3 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
25mm x 3-5/32 Inches
Crankshaft Type
Straight
Crankshaft Diameter
25 mm
Crankshaft Length
3-5/32"
Crankshaft End Tapped Size
7/16-20
Crankshaft Keyway Width
3/16 Inches
Overview
Consumer Warranty
2 Years
Commercial Warranty
90 Days
UPC
47282145036
Product Specs
+
Specifications
Engine
Engine Series
B&S Professional Series
Engine Style
Vertical
Cylinders
1
Engine Type
4-Cycle OHV
Cooling System
Air
Dry Weight
24.3 Lbs
CC
190 CCs
Max Torque
8.75 Lbs
Cylinder Bore Type
Aluminum
Bore
2.69 Inches
Stroke
2.04 Inches
Systems
Starting System
Recoil Only
Ignition System
Electronic Spark
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
18-20 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Included
Air Cleaner
Dry (Paper)
Fuel Tank Size
.3 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
25mm x 3-5/32 Inches
Crankshaft Type
Straight
Crankshaft Diameter
25 mm
Crankshaft Length
3-5/32"
Crankshaft End Tapped Size
7/16-20
Crankshaft Keyway Width
3/16 Inches
Overview
Consumer Warranty
2 Years
Commercial Warranty
90 Days
UPC
47282145036
