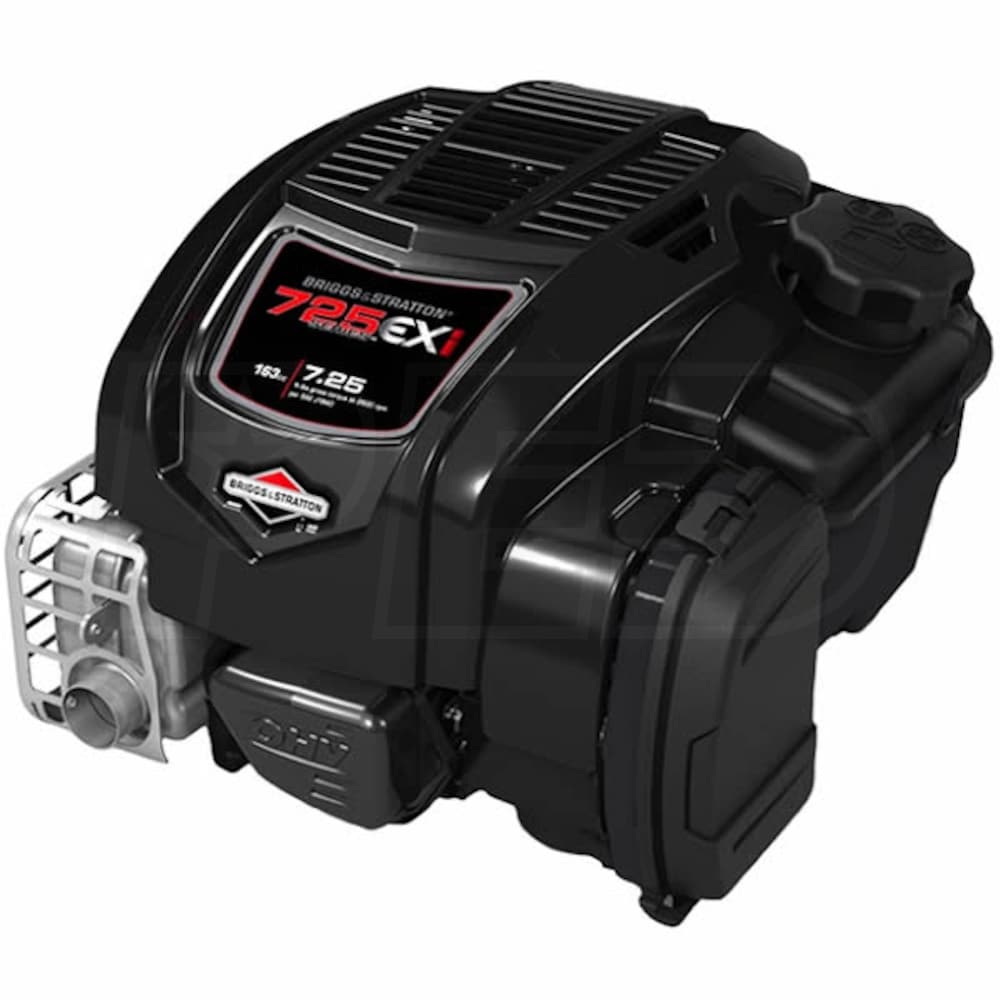

Briggs & Stratton 725EXi Series 163cc Vertical Engine, 7/8" x 3-5/32" Crankshaft, Tapped 3/8"-24 & 2 Woodruff Keys & 3/16" Straight Keyway

Model:

104M02-0197-F1

Write a Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Briggs & Stratton 725EXi Series 163cc Vertical Engine, 7/8
Briggs & Stratton 725EXi Series 163cc Vertical Engine, 7/8" x 3-5/32" Crankshaft, Tapped 3/8"-24 & 2 Woodruff Keys & 3/16" Straight Keyway
Model: 104M02-0197-F1
Product Discontinued
Features
Specifications
Reviews
Accessories
How-To Articles
Manuals
Share

Features

  • Model # 104M02-0197-F1 - 7/8" x 3-5/32" Crankshaft, Tapped 3/8"-24 & 2 Woodruff Keys & 3/16" Straight KW
  • For walkbehind / push mowers - not intended for log splitters or pressure washers
  • NEW Briggs & Straton 725EXi Series™ Single Cylinder Air-Cooled 4-Cycle Gas Engine
  • Produces 7.25ft-lbs of torque* - Power levels are stated gross torque per SAE J1940
  • Just Check and Add™ - Industry 1st - NO OIL CHANGE EVER
  • Spend less time tracking engine hours and more time mowing
  • ReadyStart® Starting System
  • No primer, no choke, no worries - Just Pull The Starting Cord
  • Magnetron® Electronic Ignition System
  • Extremely reliable design, for consistent starting while being maintenance-free
  • DuraLube™ Splash Lubrication System
  • Provides smoother and cooler operation for extended engine life
  • Dual-Sealing Paper Element w/ Tool-Less Access
  • Allows for easier air filter maintenace, without the need for a screwdriver
  • Lightweight Design - Lightest Engine In Its Class
  • Decreases operator fatigue for maximum mowing prodcutivity
  • .25 Gallon Fuel Tank (Included) w/ Angled Fuel Neck
  • 2X The size of previous design allows for less spilling & easier filling
  • Aluminized Super Lo-Tone™ Engine Muffler
  • Keeps the engine noise down to a minimum so you can enoy mowing again
  • 2-Year Consumer Warranty & 90-Day Commercial Warranty
  • Model 104M02-0197-F1 replaces model 104M02-0021-F1
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

104M02-0197-F1
specs product image PID-105265
Engine
Engine Series
B&S EXi
Engine Style
Vertical
Engine Type
4-Cycle OHV
Cylinders
1
Cooling System
Air
Dry Weight
19 Lbs
CC
163 CCs
Max Torque
7.25 Lbs
Cylinder Bore Type
Aluminum
Bore
2.69 Inches
Stroke
1.75 Inches
CARB
Yes
Systems
Starting System
Recoil Only
Ignition System
Electronic Spark
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
15 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Included
Air Cleaner
Dry (Paper)
Fuel Tank Size
.25 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
7/8 x 3-5/32 Inches Inches
Crankshaft Type
Straight
Crankshaft Diameter
7/8"
Crankshaft Length
3-5/32"
Crankshaft End Tapped Size
3/8-24
Crankshaft Keyway Width
3/16 Inches Inches
Overview
Weight
19 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Commercial Warranty
90 Days
UPC
047282258408
