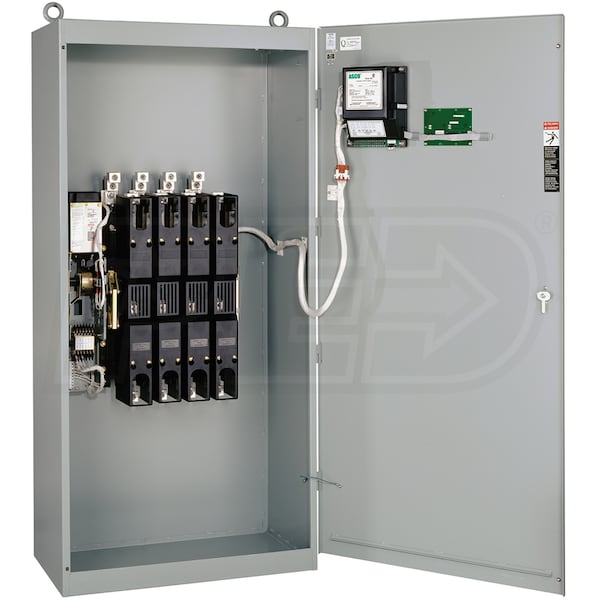

Briggs & Stratton By ASCO Series 285 - 800-Amp Automatic Transfer Switch (120/240V Single-Phase)

Model:

071123

Write a Review
$6,999.00
Free Shipping
  Learn More About Free Freight
Factory-Direct
Ships in 8-12 Weeks
Factory items ship direct from the manufacturer. Shipping times vary.
$123 / Month
With our 82 months 10.99% APR*
82 fixed monthly payments required.
Free Shipping$6,999.00Buy Now
Free Freight$6,999.00Visit Site
Briggs & Stratton By ASCO Series 285 - 800-Amp Automatic Transfer Switch (120/240V Single-Phase)
Briggs & Stratton By ASCO Series 285 - 800-Amp Automatic Transfer Switch (120/240V Single-Phase)
Model: 071123
$6,999.00
Features
Specifications
Reviews
Accessories
How-To Articles
Manuals
Share

Features

Type

Standard

Amp Rating

800

Load Mgmt.

Not Compatible

Enclosure

NEMA 3R

  • 800-Amp 285 Series By ASCO Automatic Transfer Switch (120/240V Single-Phase)
  • Compatible with Briggs & Stratton Liquid Cooled generators
  • NEMA 3R Outdoor Rated Enclosure
  • Approved for indoor or outdoor installations
  • Standard Installation
  • Requires a sub-panel for overload protection
  • True Double-Throw Contacts w/ Inherent Mechanical Interlocking
  • Prevents connection of generator and utility source for maximum safety
  • Terminals For Connection of Neutral and Ground Conductors
  • Allows for easier installation
  • Convenient Control Interface w/ Symbols & Visual Indicators
  • Makes it easy to see transfer switch and power source status
  • Built-In Auxiliary Contacts For Switch Position Indication
  • Provides immediate indication when the switch positions changes
  • Additional Features:
  • Meets Article 702, NFPA-70 National Electric Code (NEC) Requirements
  • Listed to UL 1008 for optional standby systems
  • Please See Spec Sheet For Additional Compliance & Safety Standards
  • 3-Year Limited Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

071123
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Amps
800 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Not Compatible
ATS Service Disconnect
No
Max Utility Input
800 Amps
Max Generator Input
800 Amps
Maximum Wattage
192000 Watts
UL Listed
Yes
Overview
Consumer Warranty
3 Years
UPC
011675711238
